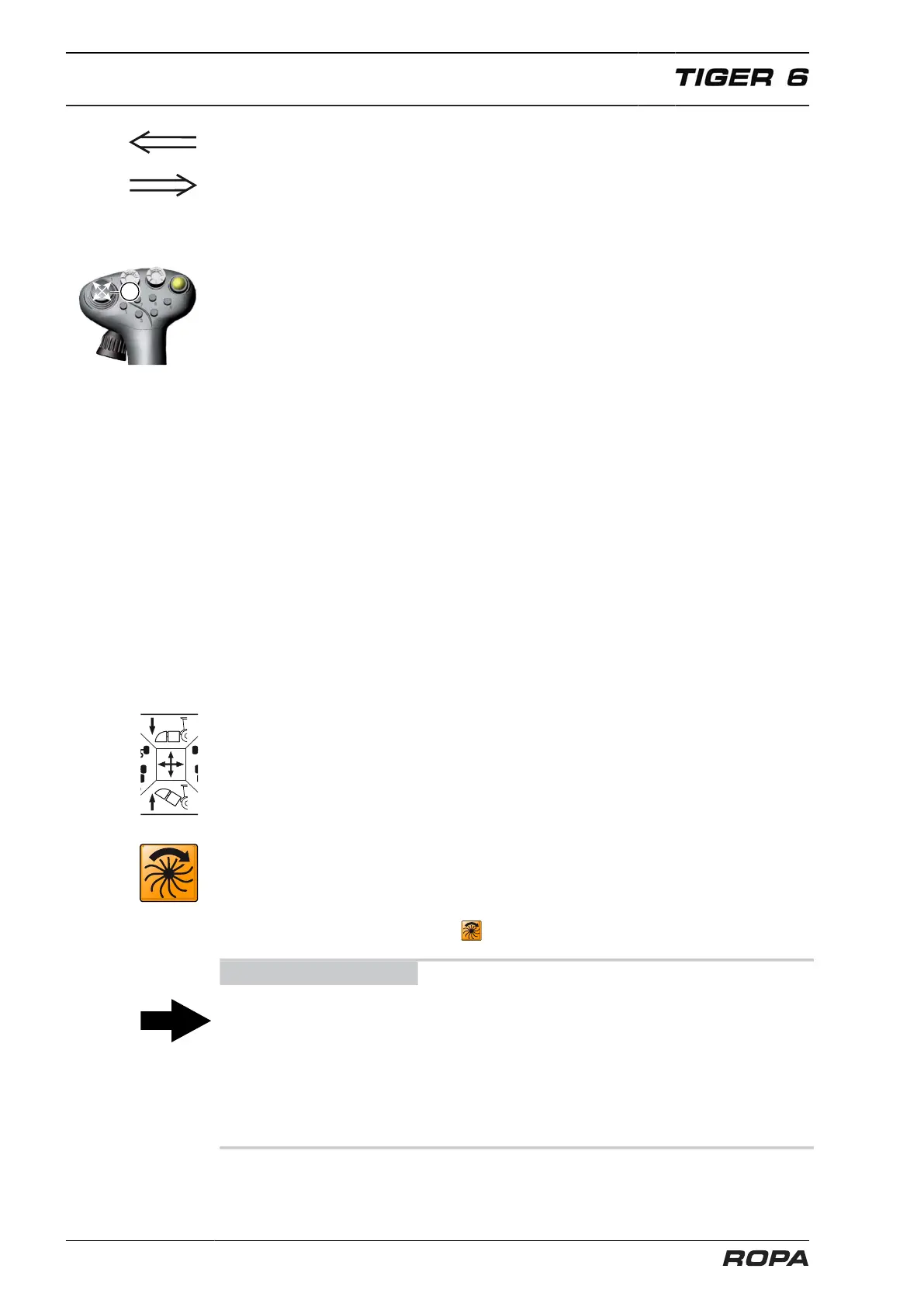

Operation
Joystick
148 / 564
Press joystick to the left:
If the main steering switch is unlocked, the rear axles steer to the left.
Press joystick to the right:
If the main steering switch is unlocked, the rear axles steer to the right.
(1) Mini joystick (1) forward/backward (lower/raise three-point suspension, only with
engine running)
FORWARD: Lower three-point suspension (lifter and defoliator) and activate
depth control (ONLY in operating mode "Field").
Machine drive is switched off:
To lower the lifter slow proportionally, press the mini joystick (1) for-
ward. The further you press the mini joystick (1) forward, the higher
the lowering speed is.
Machine drive is switched on:
By shortly pressing the mini joystick (1) forward, you completely
lower the lifter (three-point suspension). The lifter remains in “Low-
ered position” until depth control is activated. To interrupt lower-
ing, pull the mini joystick (1) back shortly and release it immediately
again.
BACKWARD: Raise three-point suspension (lifter and defoliator) and simultane-
ously switch off depth control.
When you pull the mini joystick (1) backward, the lifter (three-point suspension) raises.
The raising process runs for as long as you pull the mini joystick (1) backward. The
further you pull the mini joystick (1) backward, the higher the raising speed is.
As soon as the three-point suspension is shortly raised by pulling the mini joystick (1),
depth control is stopped.
Automated machine drive shutdown and raise
If the lifting unit is raised with the machine driving, then single tip on the function
"Raise three-point suspension" is sufficient and the three-point suspension is raised
automatically to the stop and the machine drive is simultaneously switched off. The fol-
lowing icon flashes on the R-Touch .
ADVICE
If the lifting is to be continued – for instance after a U-turn – the mini joystick (1)
for lowering the three-point suspension must be actuated twice quickly (approx.
0.5 seconds). Then the lifting unit is lowered and the machine drive switches itself on
automatically.
If the mini joystick (1) is only actuated once or twice with too long interval between, the
lifting unit is lowered, but the machine drive does not switch itself on automatically and
must be switched on manually.
