7.5.1 Oil cooler CVR gearbox
Temperature in CVR gearbox is too high!
When R-Touch displays the warning icon , the cooler must be cleaned.
– Check daily the oil cooler of the CVR gearbox on soiling.
– Remove the coarse dirt by hand, by cleaning the cooling system with the water
hose or using compressed air. Use a pressure cleaner only with a flat spray at
reduced pressure and from at least 30 cm away.
– The holding frame can be swung up for cleaning. For this purpose, loosen two
hexagonal nuts (3) on the front part of the holding frame and swing it up.

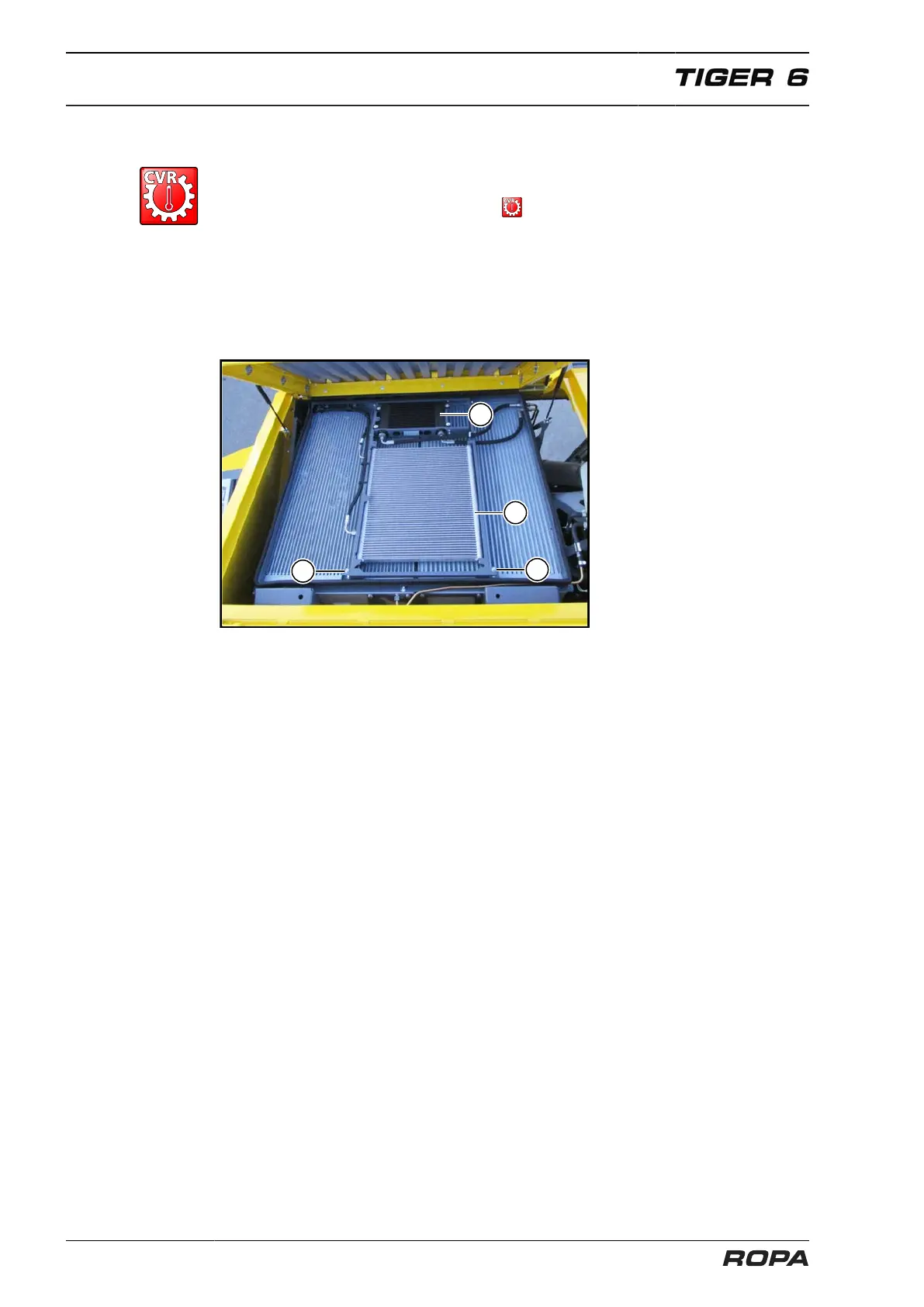

(1) Oil cooler CVR gearbox
(2) Condenser air conditioning system
(3) Hexagon nuts holding frame
