ROPA Tiger 6 - Ground Operation Lifting Unit

Operating Components
Ground operation lifting unit
94 / 564
5.11 Ground operation lifting unit
1
2
4
6 8
9
5
3
7

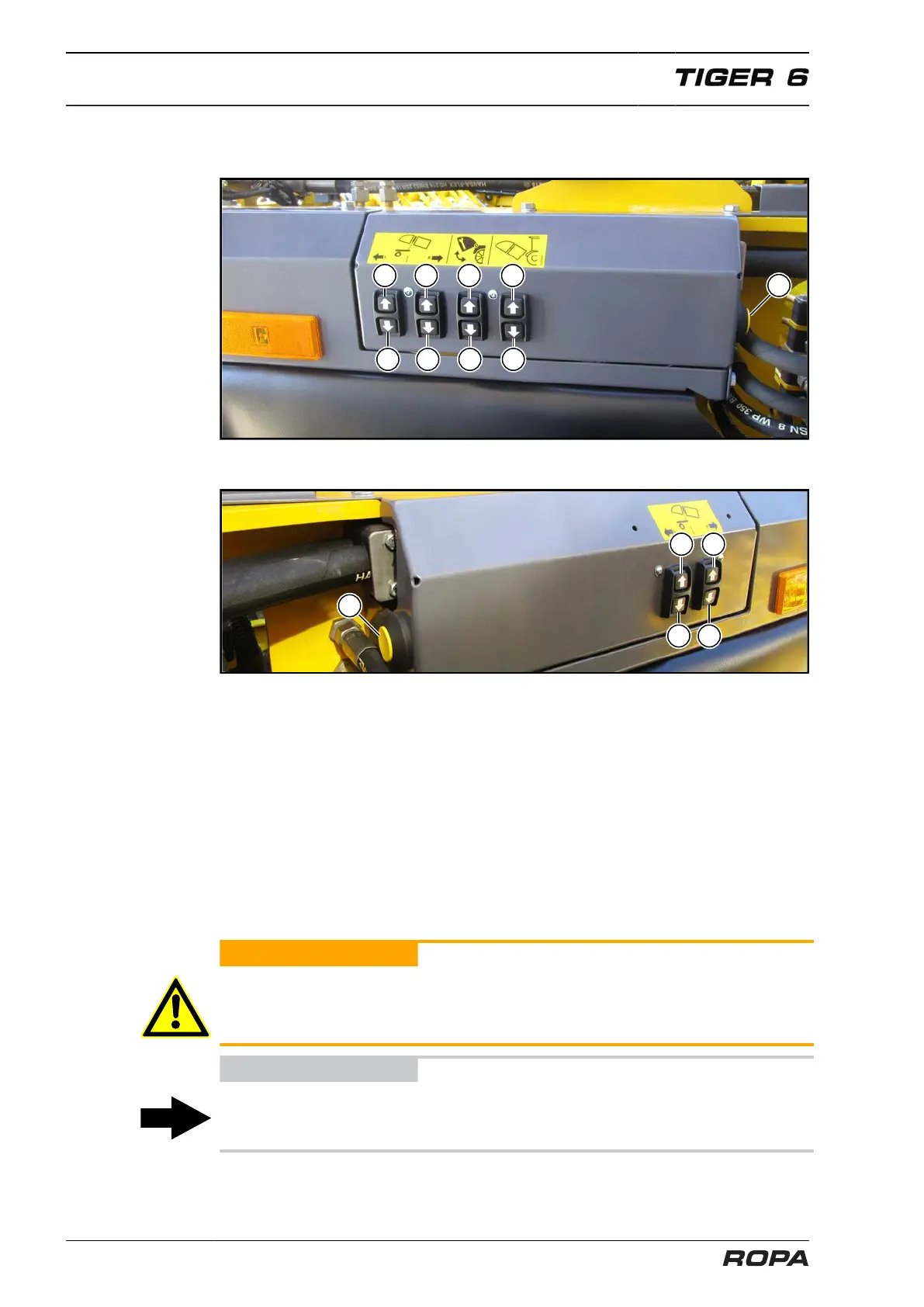

Ground operation lifting unit left
2
35
4
1
Ground operation lifting unit right
The following keys are ONLY active, when no one is sitting in the driver’s seat.
(1) Deadman switch
(2) Chain hoist right up (only with additional chassis option)
(3) Chain hoist right down (only with additional chassis option)
(4) Chain hoist left up (only with additional chassis option)
(5) Chain hoist left down (only with additional chassis option)
(6) Defoliator service position up
(7) Defoliator service position down
(8) Raise three-point suspension
(9) Lower three-point suspension
WARNING
The deadman switch (1) must be pressed and held in order to run functions 2-9.
ADVICE
Start or shut down the diesel engine from the ground with (1) + (8) + (9) (See
Page 157).
