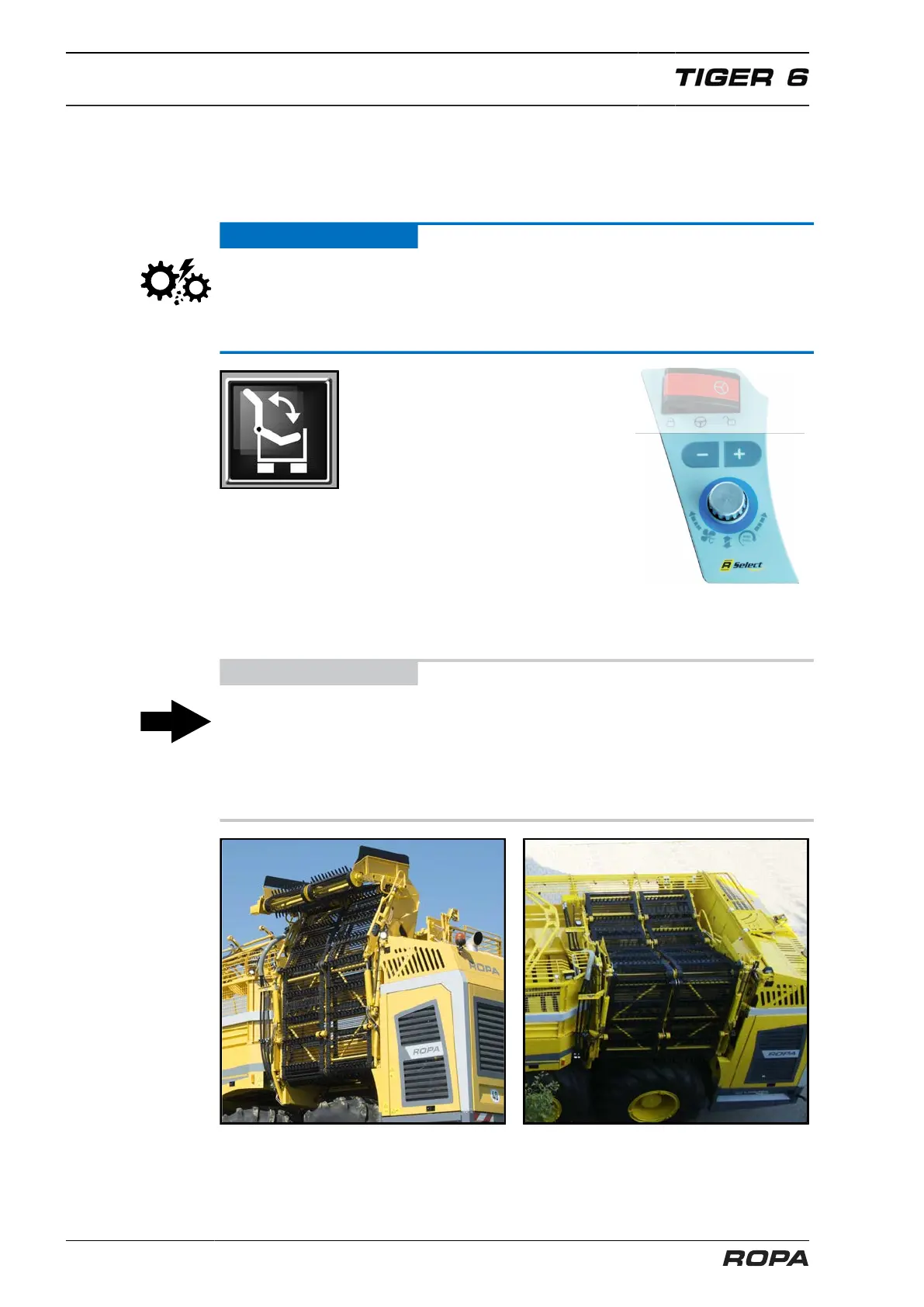

6.18.2 Unload conveyor articulation parts folding out/in
Before lowering the unload conveyor, first swing out both articulation parts of the
unload conveyor.
ATTENTION
Danger of machine damage.
When folding the unload conveyor articulation part out and in, some machine parts
may collide and therefore seriously damage the machine. That's why always pay
attention to the right order when folding the bunker out and in! (See Page 321)
Unload conveyor articulation parts folding out/in
Choose this function with R-Select.
+ Key = Fold unload conveyor articulation part out (work-
ing position)
- Key = Fold unload conveyor articulation part in (trans-
port position)
ADVICE
If you fold in during lifting the unload conveyor with the key (54) "Bunker unloading
end", the both unload conveyor articulation part fold automatically almost completely
into the vehicle contour. When lowering the unload conveyor, the unload conveyor
articulation part 1 moves automatically to the straight position, and the unload con-
veyor articulation part 2 moves in the same position, in which it was during the last
raising of the whole unload conveyor.
Unload conveyor articulation part 1 and
2 in operating position
Unload conveyor articulation part 1 and
2 in transport position
