ROPA Tiger 6 - Display Areas on the R-Touch

Operation
R-Concept
106 / 564

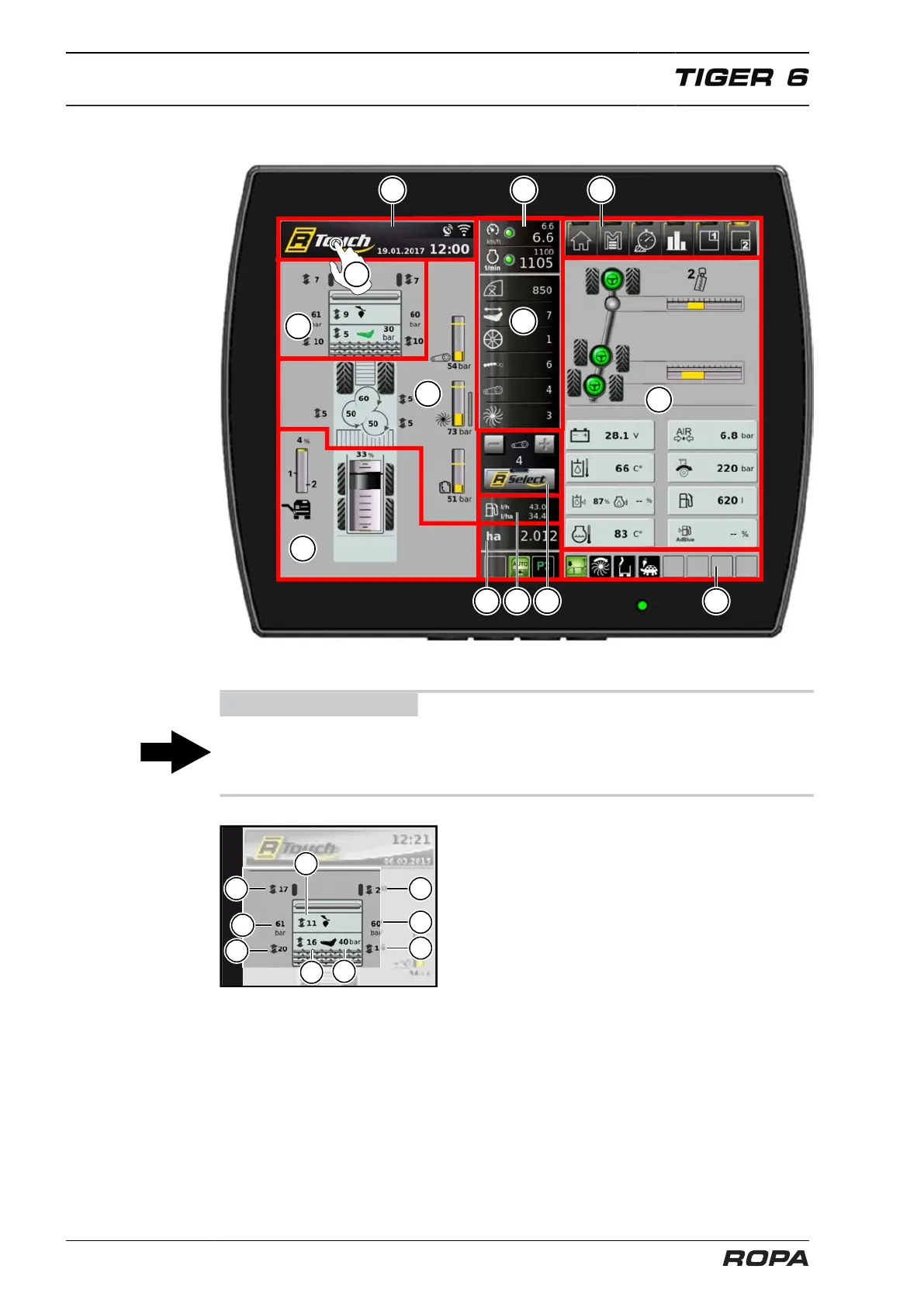

6.3.1.1 Display areas on the R-Touch
B
C
F
M
A
E
K
G
H
I
J
L
D
[A] Display area for warning indicators and hints (See Page 139)
ADVICE
When a warning indicator activates the warning buzzer, you can suppress the sound-
ing of the buzzer for a short period clicking on the display area A or pressing the key
C.
2
5
7
9
8
1
4
6
3
[B] Display area lifter/defoliator
(1) Defoliator depth left
(2) Defoliator depth right
(3) Scalper cutting height
(4) Defoliator discharge pressure left
(5) Defoliator discharge pressure
right
(6) Rollers movement height left
(7) Rollers movement height right
(8) Share depth
(9) Stone protection pressure
