ROPA Tiger 6 - Fuses on the Diesel Engine

Malfunction and Remedies
Fuses
480 / 564

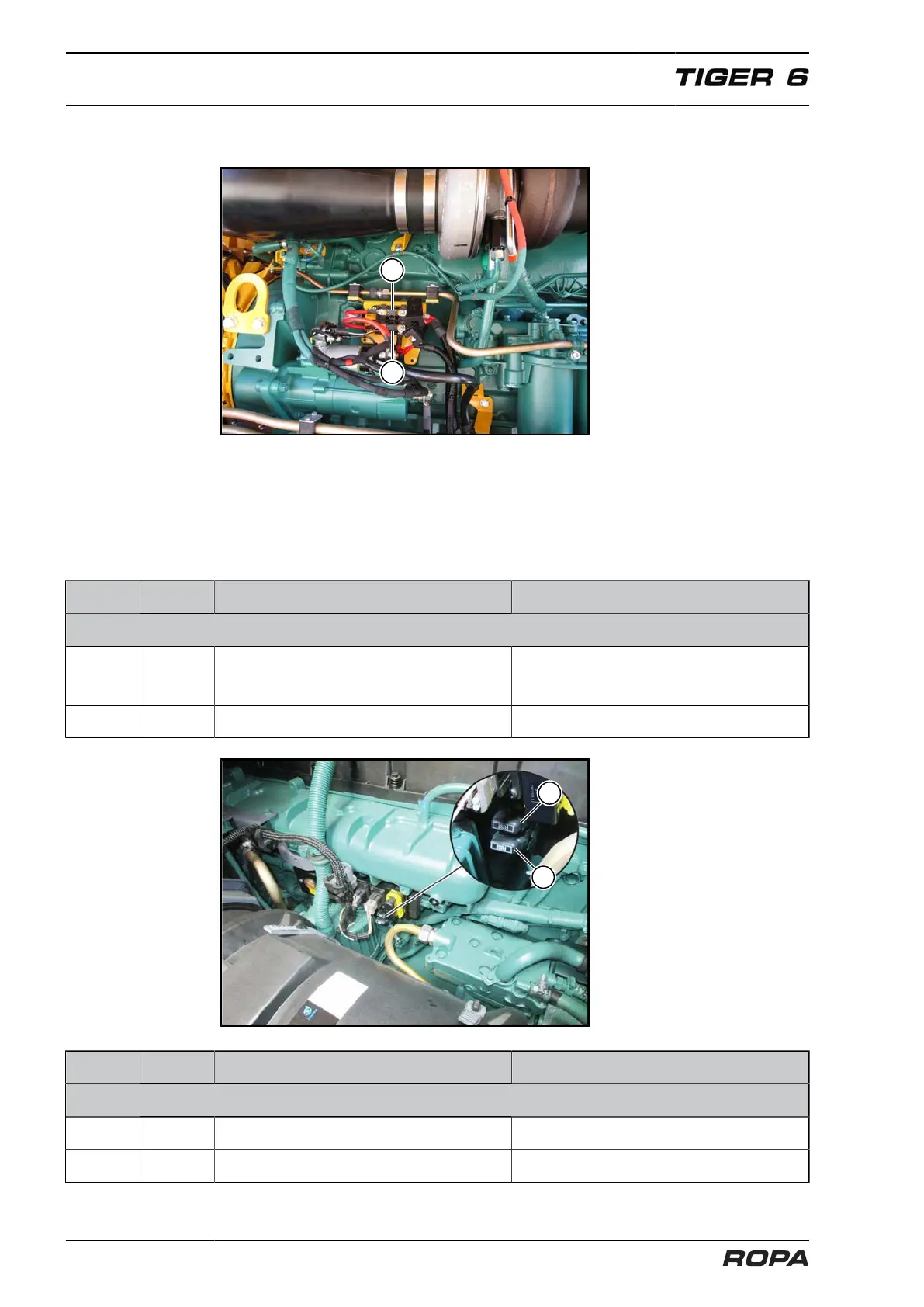

8.2.3 Fuses on the diesel engine
2
1
The main fuses are situated rear right at the diesel engine (Mega-Fuse).
F01 (1) supplies the central electrics in the driver's cabin and the engine switching
cabinet.
F02 (2) supplies the great part of the lighting.
Whether these fuses are intact can be determined with the measuring device (continu-
ity tester).
No. Ampere Function Pos. in the machine
Main power supply, screw-in little fuse MEGA fuses
F01 125 Supply central electrics at cabin X1
Engine fuse box power supply
Diesel engine, bottom fuse
F02 125 Supply lighting X2 Diesel engine, top fuse
3
4
No. Ampere Function Pos. in the machine
Volvo diesel engine (internal)
F03 10 Volvo EMS power supply Diesel engine front, top fuse (3)
F04 25 Volvo ACM power supply (RT6c only) Diesel engine front, bottom fuse (4)
