Maintenance and Service
Bunker
458 / 564
7.14.3.3 Retensioning cross conveyor
The both cross conveyors are tensioned on the right side of the machine. They must
be separately retensioned. The two tensioning bolts of each conveyor are located at
the conveyor turn around under the bunker floor.

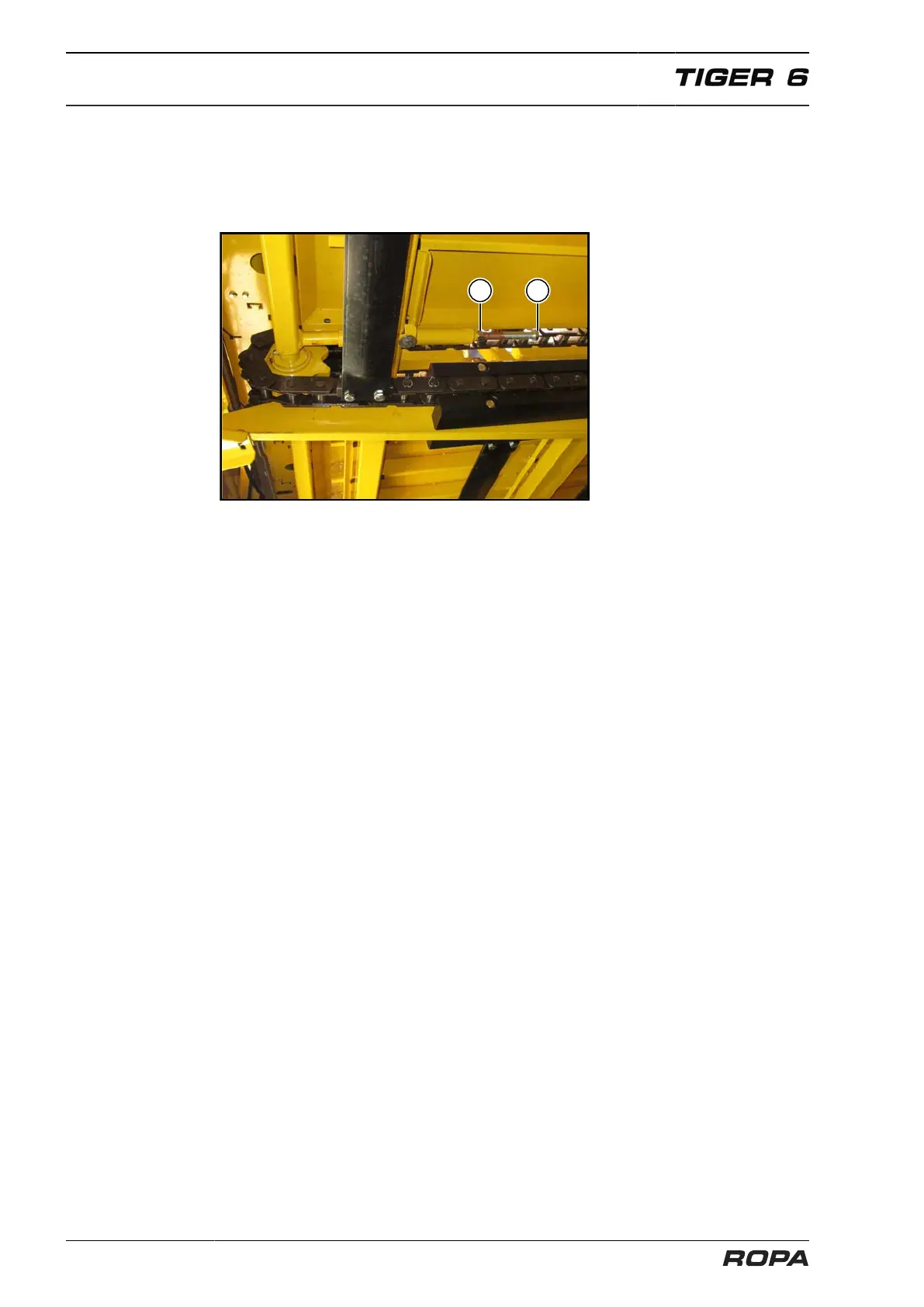

(1) Tensioning bolt
(2) Lock nut
For retensioning:
– Loosen lock nuts (2) of the both tensioning bolts.
– Adjust both tightening bolts (1) by the same distance each. Therefore, slide the
conveyor guide shaft evenly so far to the outside until the cross conveyor enters
into the nylon bars from above.
– Retighten lock nuts.
