ROPA Tiger 6 - Leaf Sensor

Operation
Defoliator
227 / 564

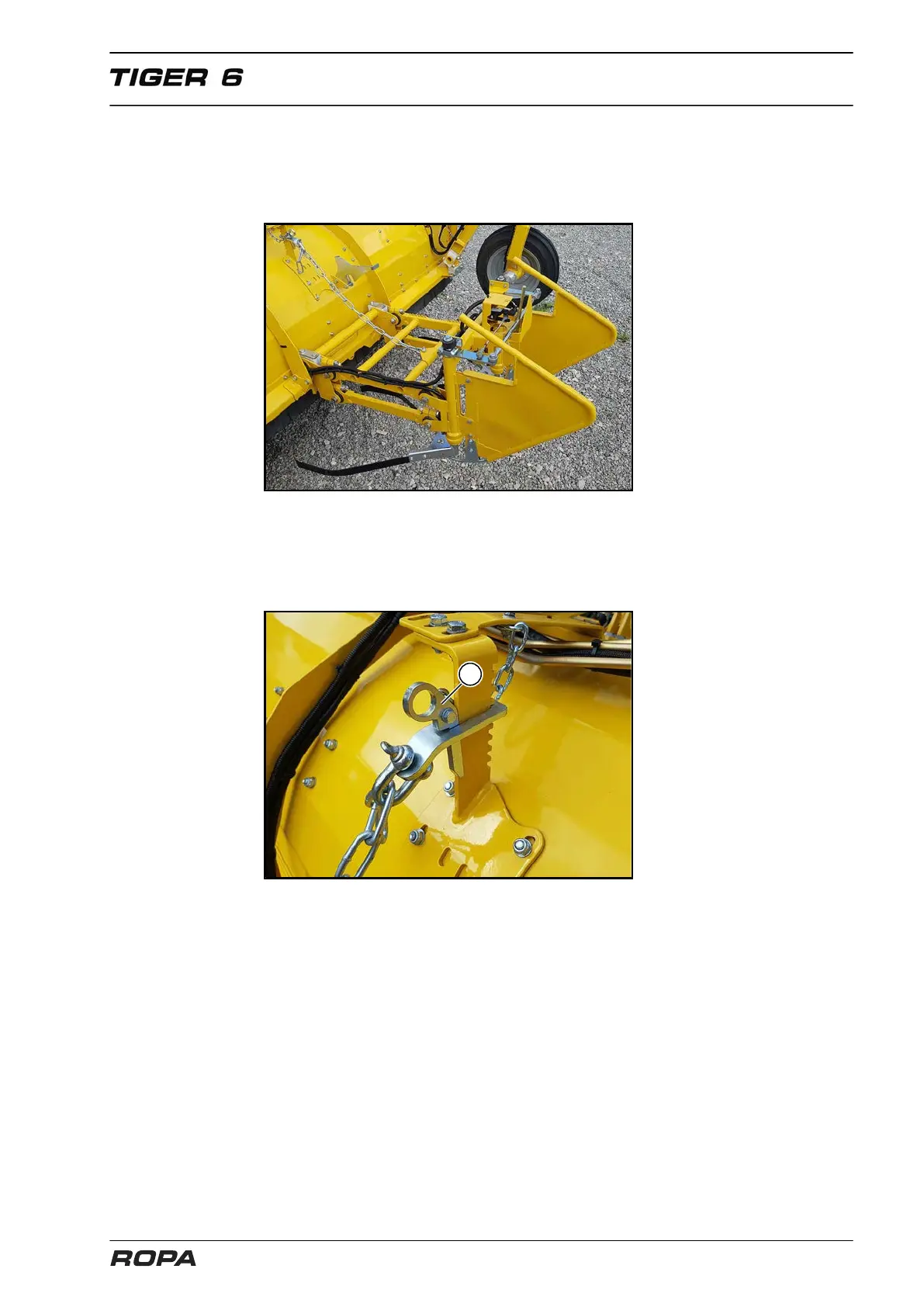

6.13.1 Leaf sensor
The leaf sensor is situated at the very front of the defoliator unit. The leaf sensor is
guided by the parallelogram and sends the signal for the autopilot.
Leaf sensor
By means of the chain on the leaf sensor, the downward range of the leaf sensor is
restricted. The chain length may be adjusted to the current requirements by pulling out
the wedge (1).
1
