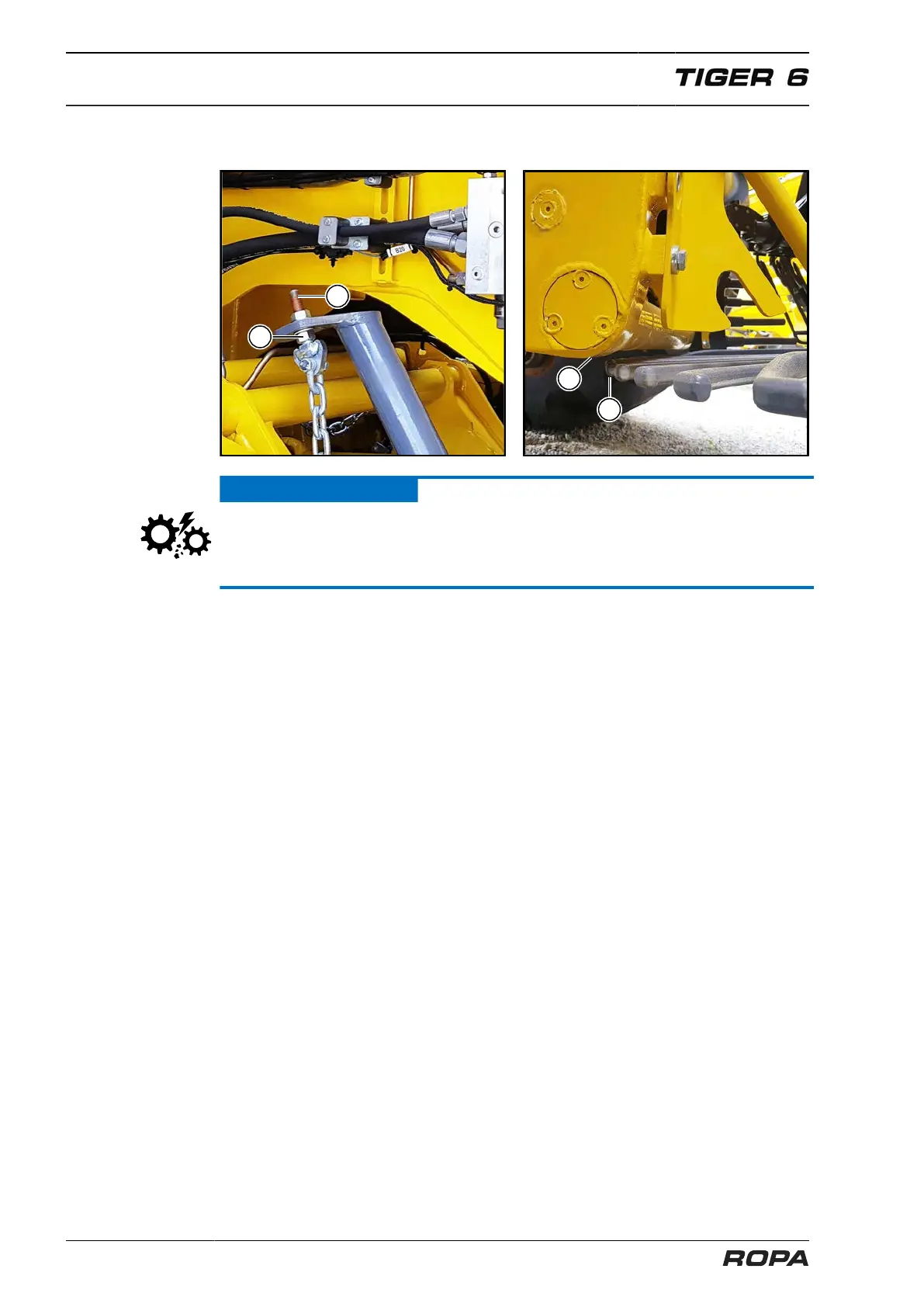

6.15.4.3 Setting infeed conveyor height rear
1
2
4
3
ATTENTION
Danger of machine damage.
The distance between the strainer wheel prongs (3) and the infeed conveyor (4) must
be so large, even with the lifter raised, that these parts in no case touch.
– To set the infeed conveyor height rear, first loosen both nuts (2) on the threaded
rod (1).
– Then turn the nuts (2) until neither the strainer wheel prongs and infeed conveyor
nor the strainer wheel prongs and infeed conveyor gear unit touch during opera-
tion.
– Lock the threaded rod again after setting by tightening of the two nuts (2) together.
