Malfunction and Remedies
Fuses
478 / 564
8.2 Fuses
8.2.1 Fuses
For the machine, mainly commercially available, flat plug-in fuses (melting fuses) are
used. These fuses are accessible without tools.
The fuses for the electrical system are
– on the diesel engine (See Page 480)
– in the central electrical system in the driver's cabin (See Page 482)
– in the seat console (See Page 481)
– in the engine fuse box (See Page 487)
Labels inside the cover identify the fuses. There are also three automatic electronic
cut-in the seat console.
The electronic automatic cut-outs are not integrated into the electric circuits and may
therefore be used by you in searching for faults. For this purpose, plug in a suitable
electronic automatic cut-out in the socket for the blown fuse. In case of overload (for
instance short circuit), the automatic cut-out will be triggered. The electronic automatic
cut-out can be reactivated by pressing on the reset button.

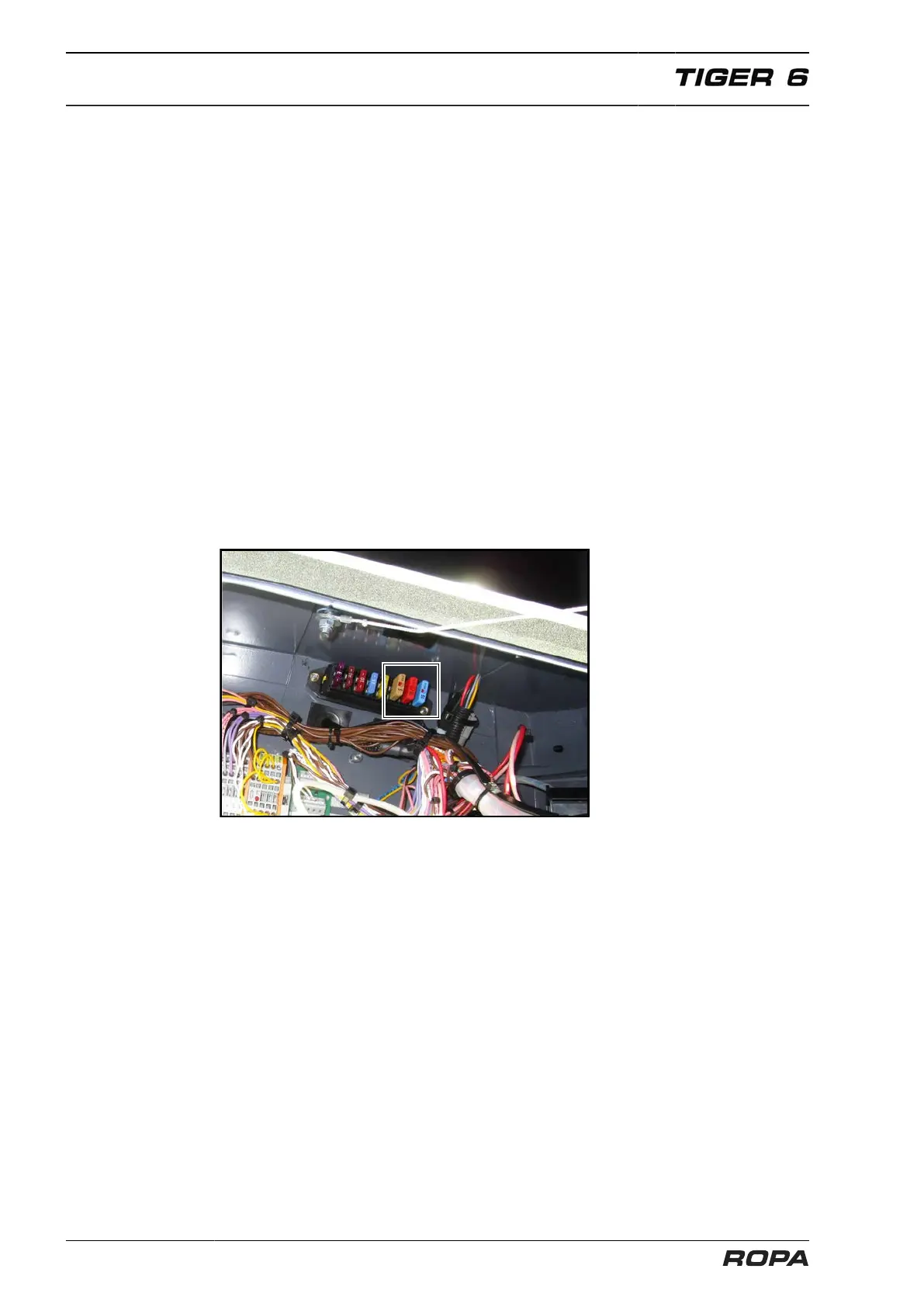

Electronic automatic cut-out in the seat console
