Operation
Lifter
278 / 564
6.14.14 Setting distance between last lifting roller and the short lifting
rollers

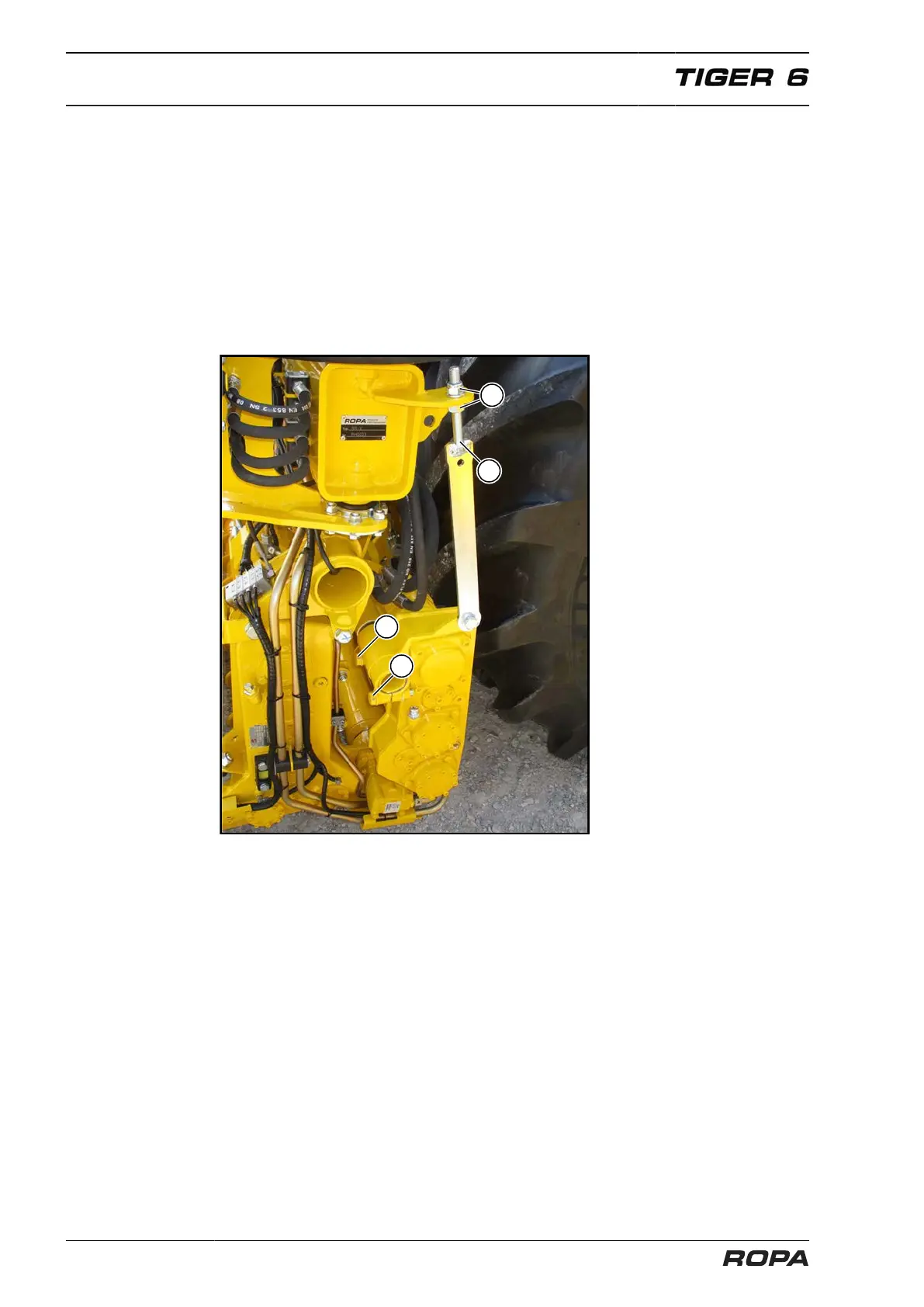

Proceed as follows to set the right and left distance:
– Loosen two hexagonal bolts (1) on the right and left side.
– Loosen the two nuts (2) on the threaded rod (3). Then turn the two nuts (2) until the
required distance between the last lifting roller and the short lifting roller has been
reached.
Minimum distance: the lifting rollers must never come into contact with each other!
– Lock the threaded rod again after setting by tightening the two nuts (2) together.
– Retighten two hexagonal bolts (1).
