Malfunction and Remedies
Fuses
481 / 564

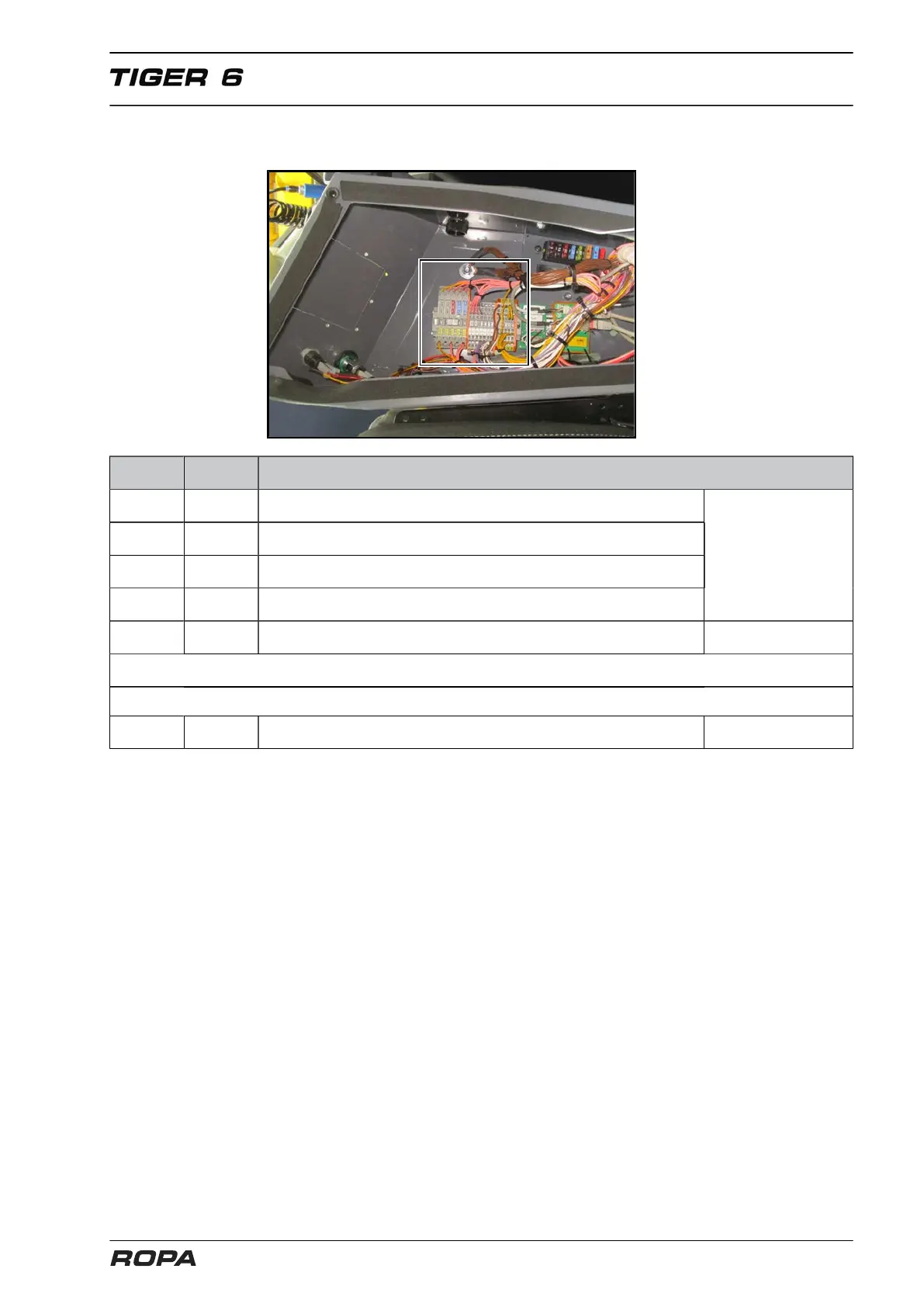

8.2.4 Fuses in the driver's cabin seat console
No. Ampere Function
F43 15 Pin 15 ESR, colour terminal, joystick, operating section
F44 15 Steering lock
F45 10 Driver's seat suspension, heating, ventilation
F46 7.5 G15 voltage transformer 24 V / 5 V (only with optional printer)
Pin 15
F200 5 A11 printer 5 V
ROPA sticker item no. 3550714GB
F100r 100 mA Digital signals in seat console to joystick 8.5 V
