Operating Components
Steering column
64 / 564
5.3 Steering column
DANGER
Hazard of deadly injuries if the steering column is moved while driving.
In this case, the machine can go out of control and cause the severest damages.
– Therefore, NEVER move the steering column while driving!

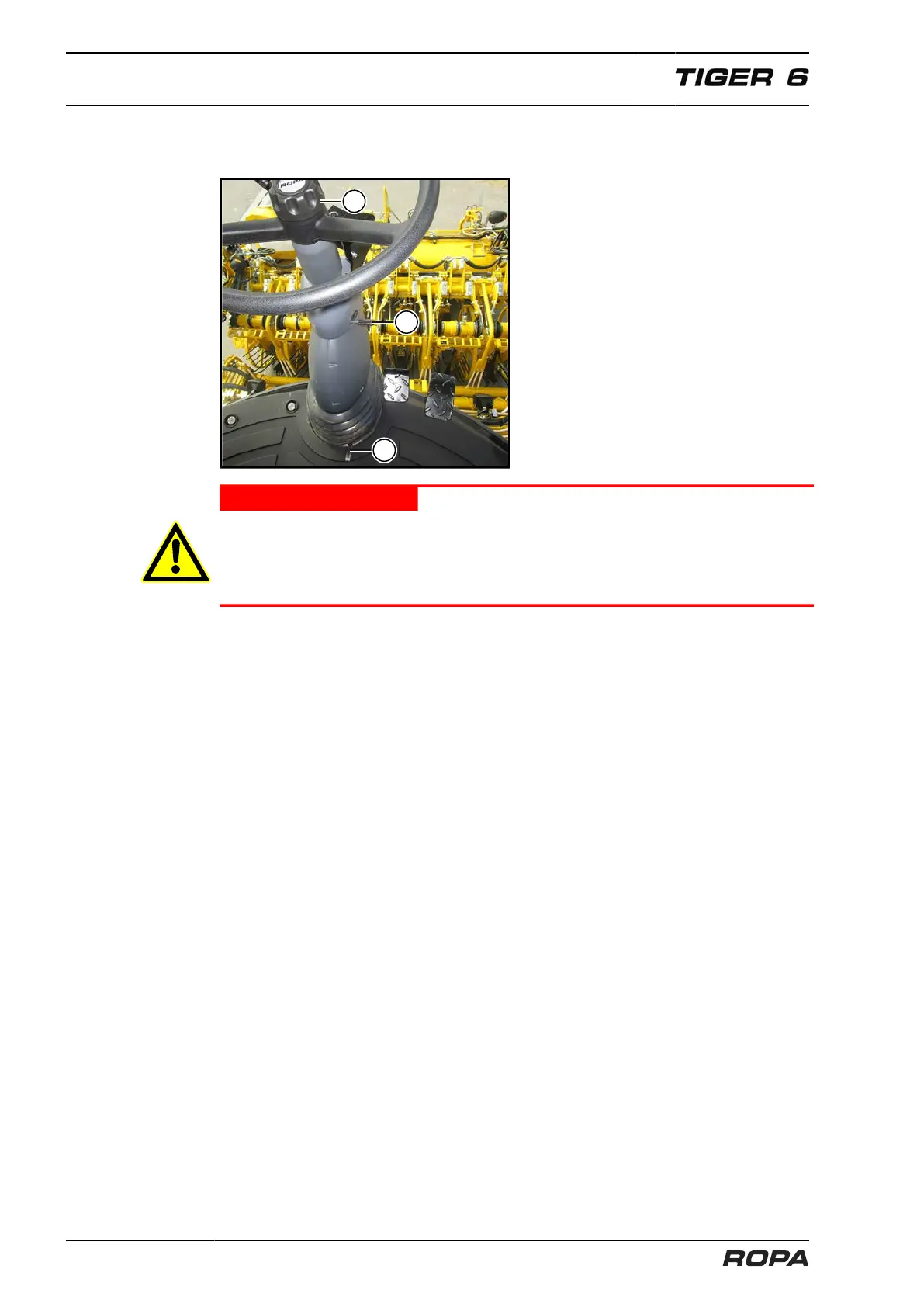

Rotating handle (1) height adjustment
Release rotating handle (1) (turn to the left), move the steering column to the desired
height, retighten the rotating handle (turn to the right) and block the steering column.
Check if the steering column is securely fixed in the desired position.
Lever (2) incline adjustment top
Push lever (2) upward and pull or push steering column into the desired position.
Release lever (2). Check if the steering column is securely fixed in the desired posi-
tion.
Lever (3) incline adjustment bottom
Push lever (3) using the foot, move the steering column into the desired position.
Release lever (3). Check if the steering column is securely fixed in the desired posi-
tion.
