Operation
Compressed air system
341 / 564

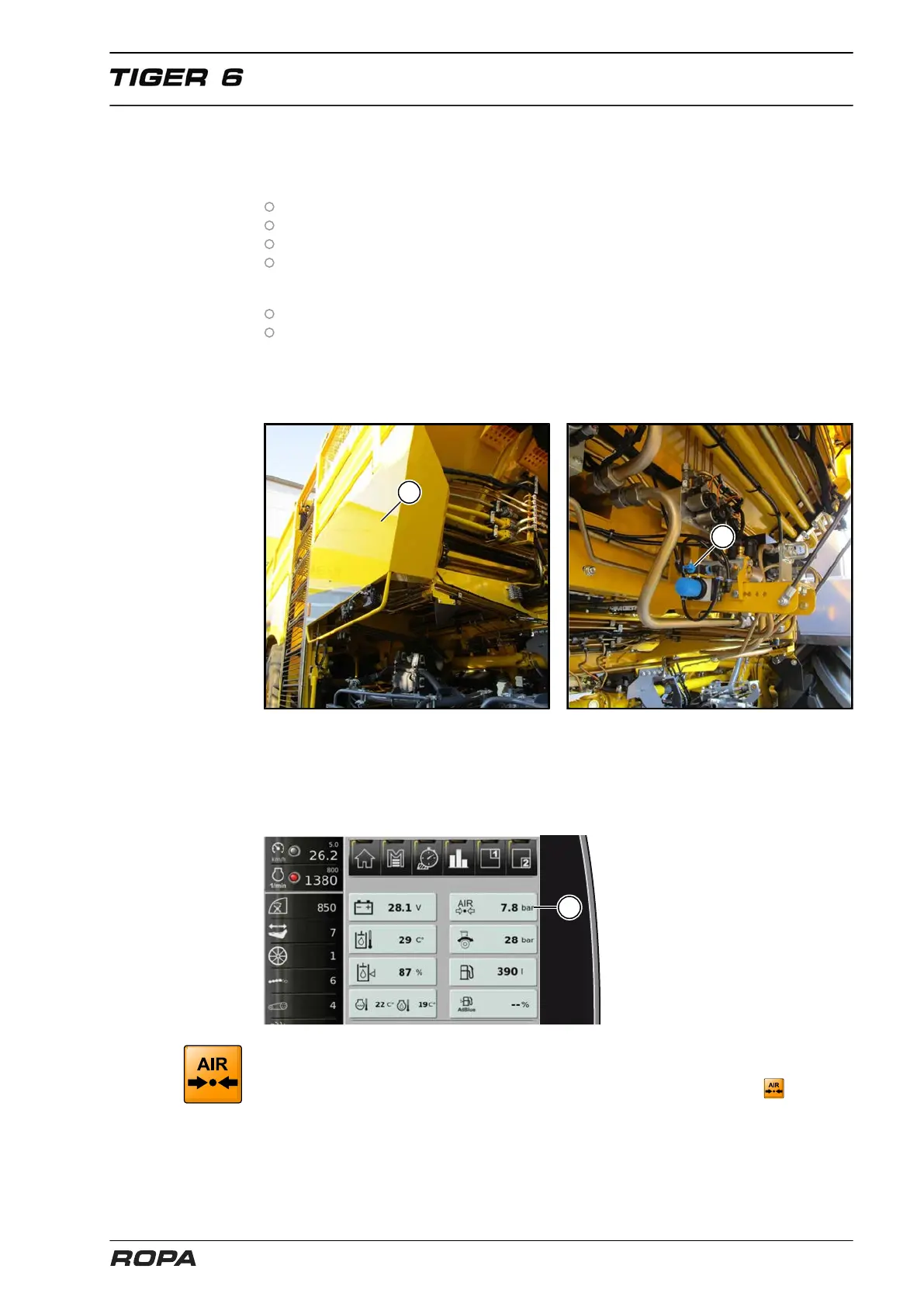

6.22 Compressed air system
The following processes of the machine are performed by the pneumatic system:
Switching off all-wheel drive.
Switching on differential locks.
Folding the rear view mirror.
Swinging of the people guard.
In addition to the pneumatic system, the air compressor also supplies to:
The compressed air service connectors on the machine.
The blow-out gun in the driver’s cabin.
In any case, ensure that the stop cock (3) of the pneumatic system is always open
because otherwise a large part of the pneumatic system is out of operation. The stop
cock is situated behind the side cover (1).
(1) Side cover
In the position shown, the stopcock (3) is
open (horizontal position). To close, turn
it by 90°.
The exact reservoir pressure of the compressed air system (4) is displayed on the R-
Touch.
All pneumatically controlled switching processes can only be reliably performed if there
is sufficient pressure in the compressed air system. If the pressure in the compressed
air system is insufficient, the R-Touch displays the following warning icon .
