6.13.9.4 Setting inflow sheet with skid (option)

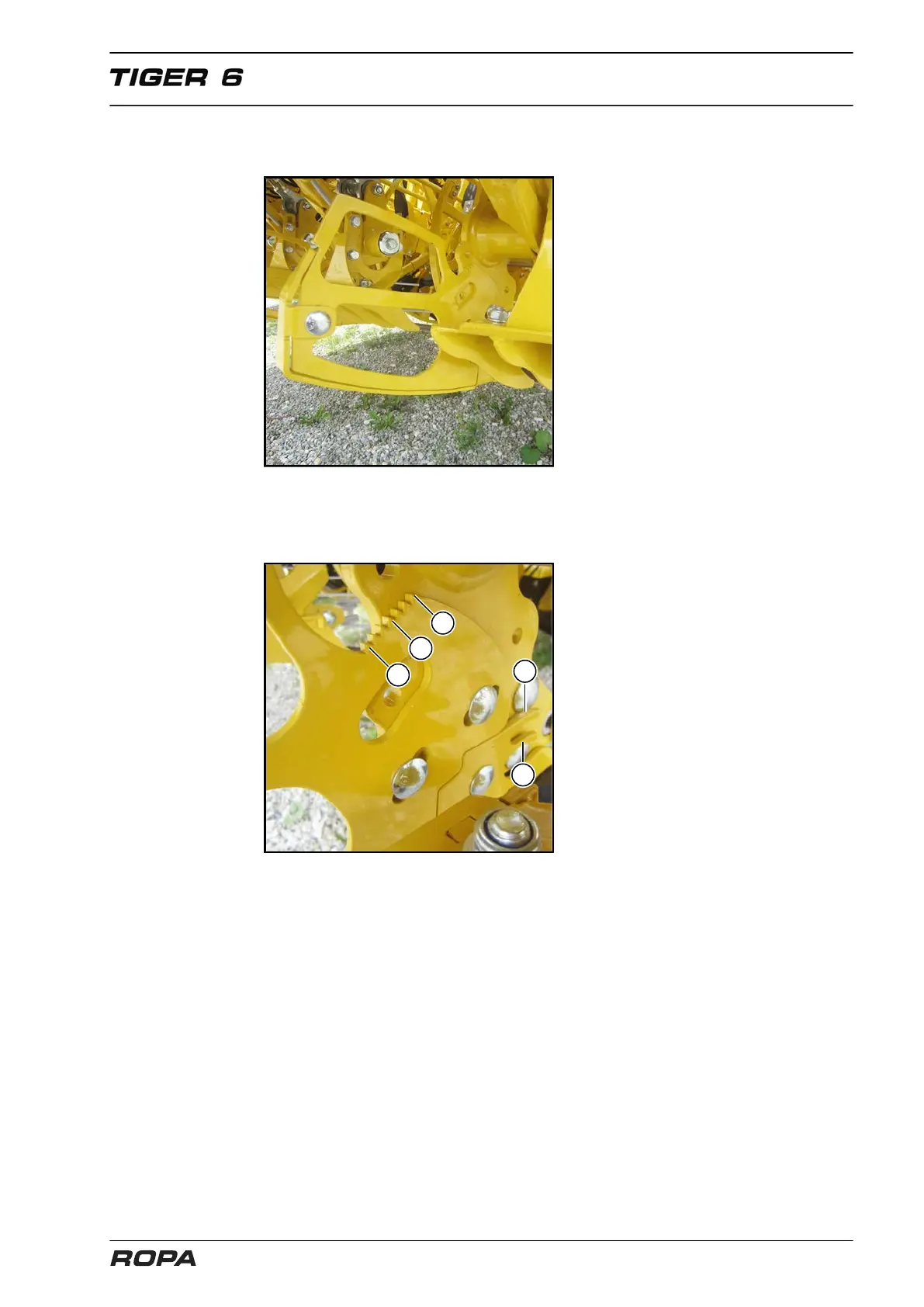

Inflow sheet with skid
The skid has two sickles (2), which serve to hold the flail bolts during flail change.
1
4
7
2
2
Inflow sheet at adjusting mark 4
Inclination of the inflow sheet can be
adjusted with the slot holes.
The inflow sheet has 7 tines for adjust-
ment.
(1) = setting mark 1
(4) = setting mark 4
(7) = setting mark 7
