ROPA Tiger 6 - Fuses in the Engine Fuse Box

Malfunction and Remedies
Fuses
487 / 564

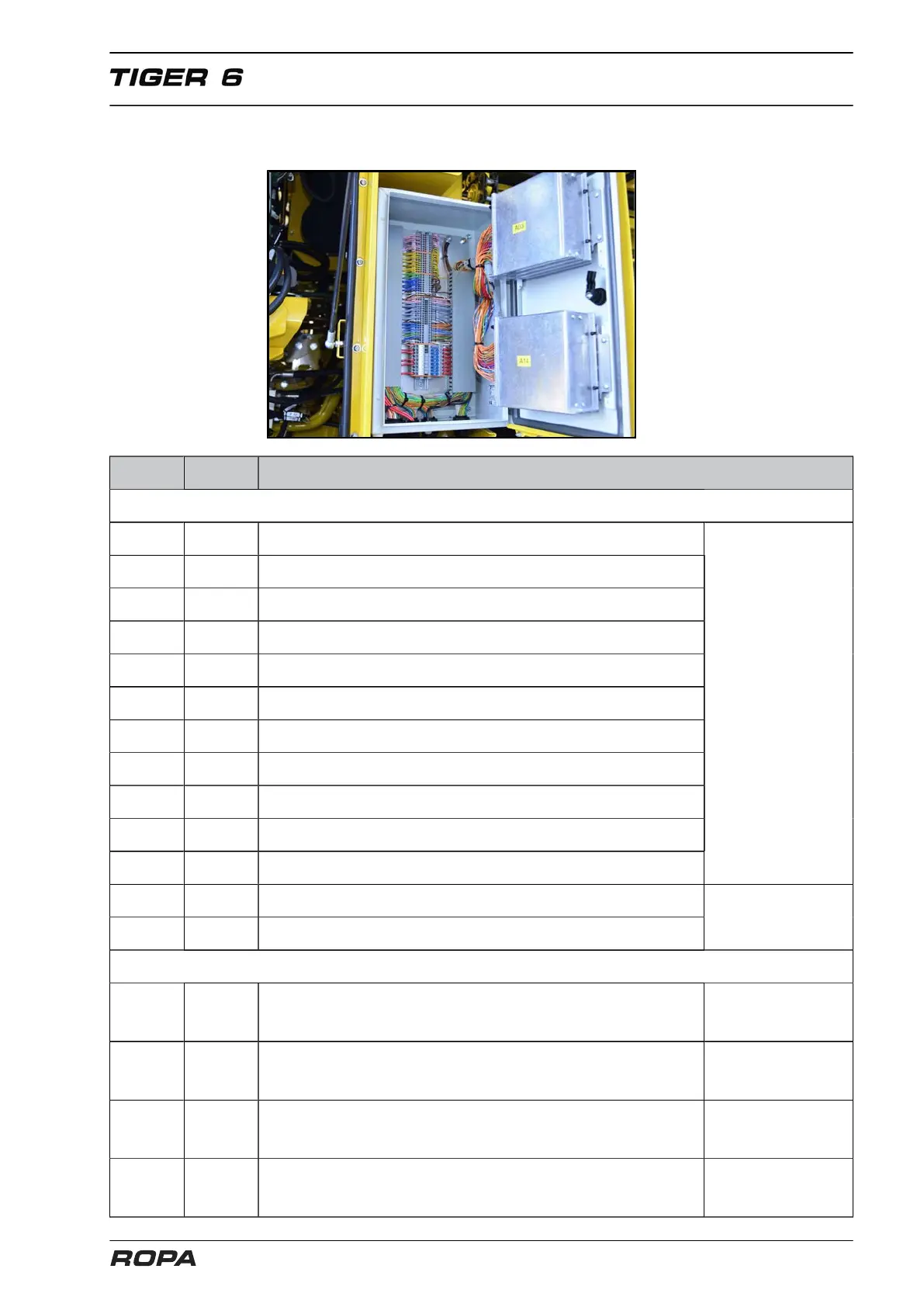

8.2.8 Fuses in the engine fuse box
No. Ampere Function
Fuses
F50 15 Pin 30 A03 computer ESR C
F51 15 Pin 30 A03 computer ESR C
F52 15 Pin 30 A14 computer ESR D
F53 15 Pin 30 A14 computer ESR D
F54 not used
F55 not used
F56 15 24 V outlet rear
F57 15 Pin 30 straight from battery, battery relays supply K43
F58 not used
F59 15 Pin 30 A35 I/O module II
F60 15 Pin 30 A35 I/O module II
Pin 30 X1
F130 not used
F131 3 Pin 15 A44 Video-Control Unit Digital
Pin 15
Electronic fuses
F75r 100 mA
B26 PS traction drive forward
B377 fuel pressure prefilter
24 V
F76r 100 mA
B45 ultrasound rear
B58 PS bunker unloading
24 V
F77r 100 mA
B55 PS turbine pump-pressure
B56 PS turbine motor-pressure
24 V
F78r 100 mA
B57 PS bunker auger/elevator
B152 PS couplings CVR transmission
24 V
