Operation
Bunker
320 / 564
6.18.6 Machine automatic folding out/in
With the help of automatic folding the bunker can be set into operating or transport
position.
WARNING
Hazard of extremely severe injuries.
– Make sure, that nobody stands in the hazard zones when the machine is started.
The automatic folding performs the following movements of the machine during
folding out:
1 Folding elevator, all side and rear bunker grids out
2 Folding bunker bars and the front bunker wall out
3 Folding unload conveyor articulation parts out
4 Raising bunker auger front and rear

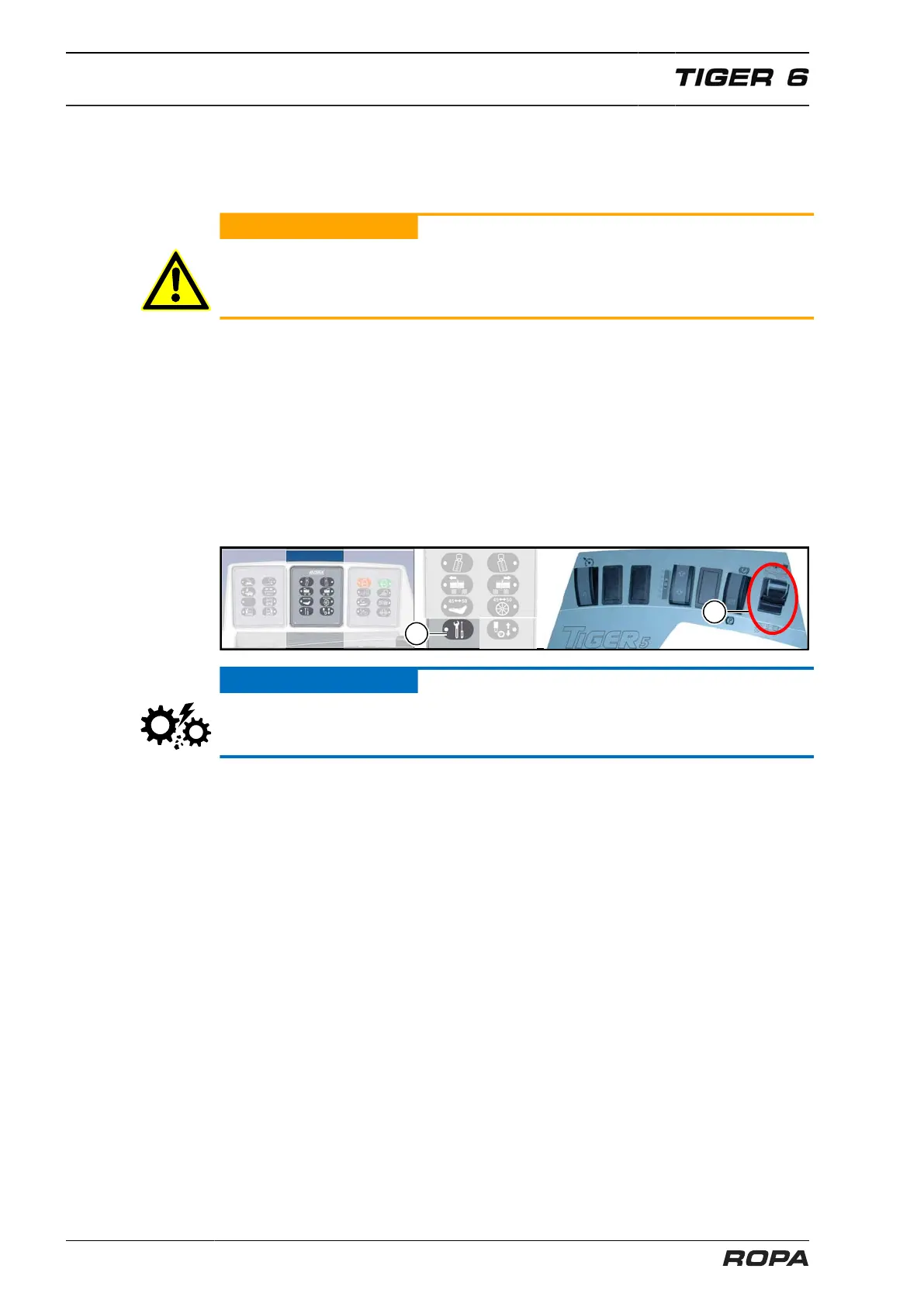

You start the automatic folding pressing the service key (24) and simultaneously
engaging the analogue rocker (40) outward for operating position or inward for trans-
port position.
ATTENTION
Before folding into the transport position the bunker must be completely emptied!
The automatic folding performs the following movements of the machine during
folding in:
1 Lower bunker auger front and rear
2 Fold unloading conveyor articulation parts in
3 Fold bunker bar and the front bunker wall in
4 Fold elevator, all side and rear bunker grids in
– Check visually if the machine is really in the transport position. If not, put the
machine into the transport position manually.
– Clean the machine so, that all lighting and warning devices are visible, the allowed
total weight is not exceeded and pollution of public roads is avoided.
