6.17 Elevator

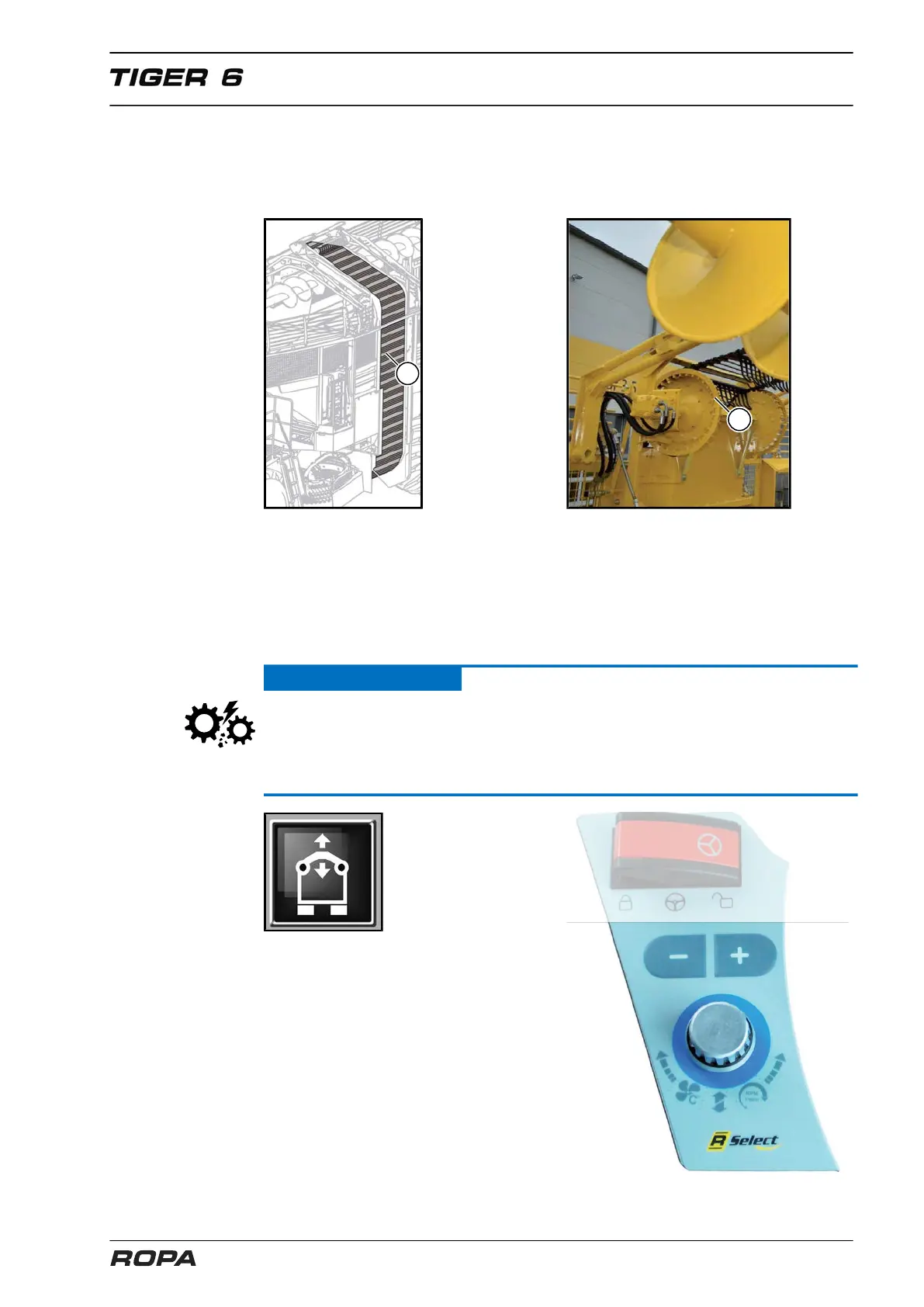

The ring elevator (1) all around is driven by two oil motors. These are located in a joint
hydraulic circuit with the bunker auger.
(1) Ring elevator
(2) Rear left drive wheel
6.17.1 Fold elevator out/in
The elevator is set into transport or working position from the driver's seat.
All side and rear bunker grids fold together with the elevator.
ATTENTION
Danger of machine damage.
When folding the elevator out and in, some machine parts may collide and therefore
seriously damage the machine. That's why always pay attention to the right order
when folding the bunker out and in! (See Page 321)
Fold elevator out/in
Choose this function with R-Select.
+ Key = fold out
- Key = fold in
