ROPA Tiger 6 - Share Body Steering

Operation
Lifter
273 / 564
6.14.11 Share body steering
1
1
1
1
2
2

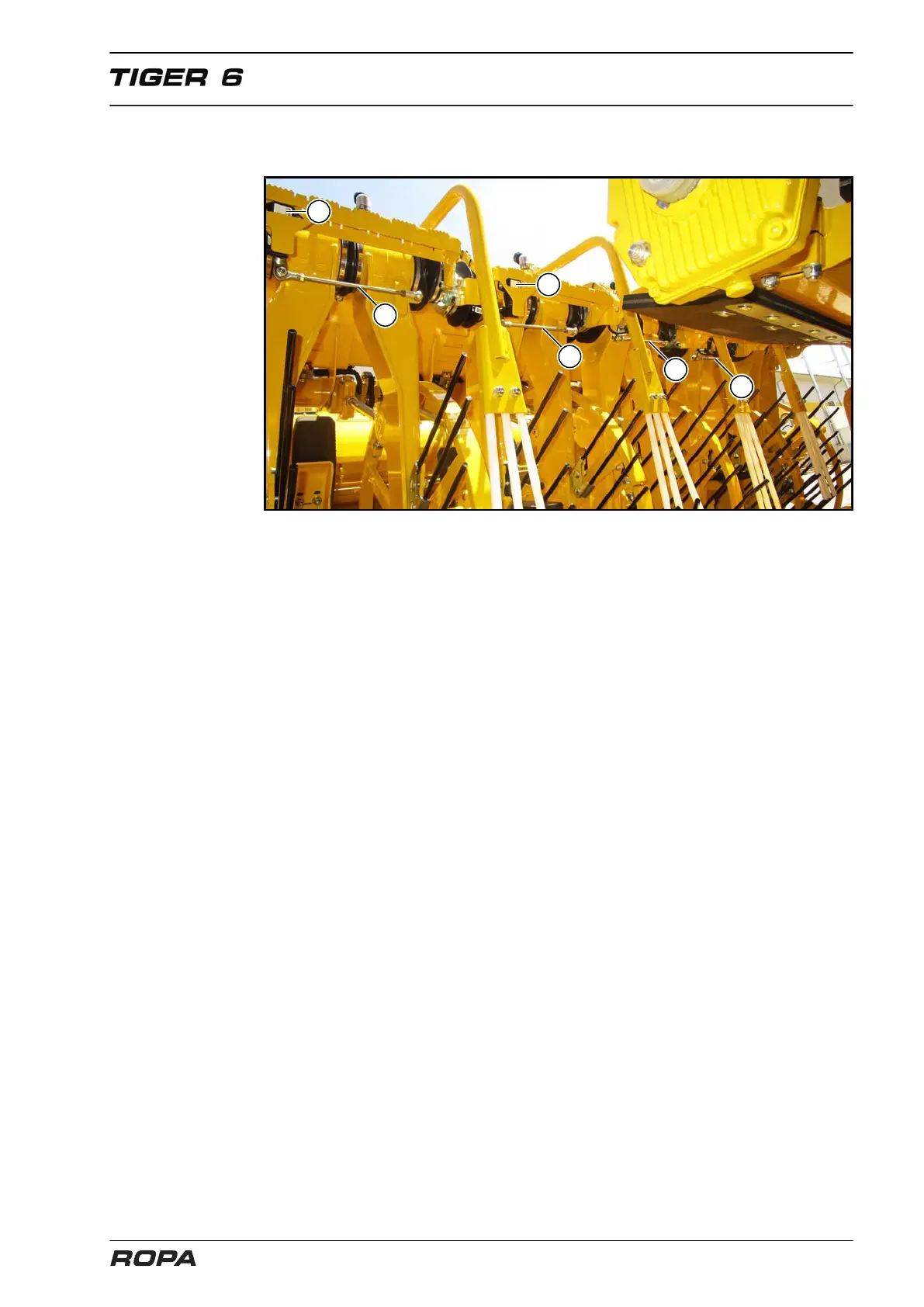

(1) Bar structure share bodies steering
(2) Sensor share bodies steering
A bar structure (1) and sensors (2) record the exact position of the linear guides of all
share bodies (except for the outer left and right). In most cases the front axle of the
machine can be steered by the autopilot using the signal transmitted by the sensors to
the computer based on the share body position (share body steering). You will find a
comprehensive explanation in the section "Steering" (See Page 210).
