Maintenance and Service
Hydraulic system
392 / 564

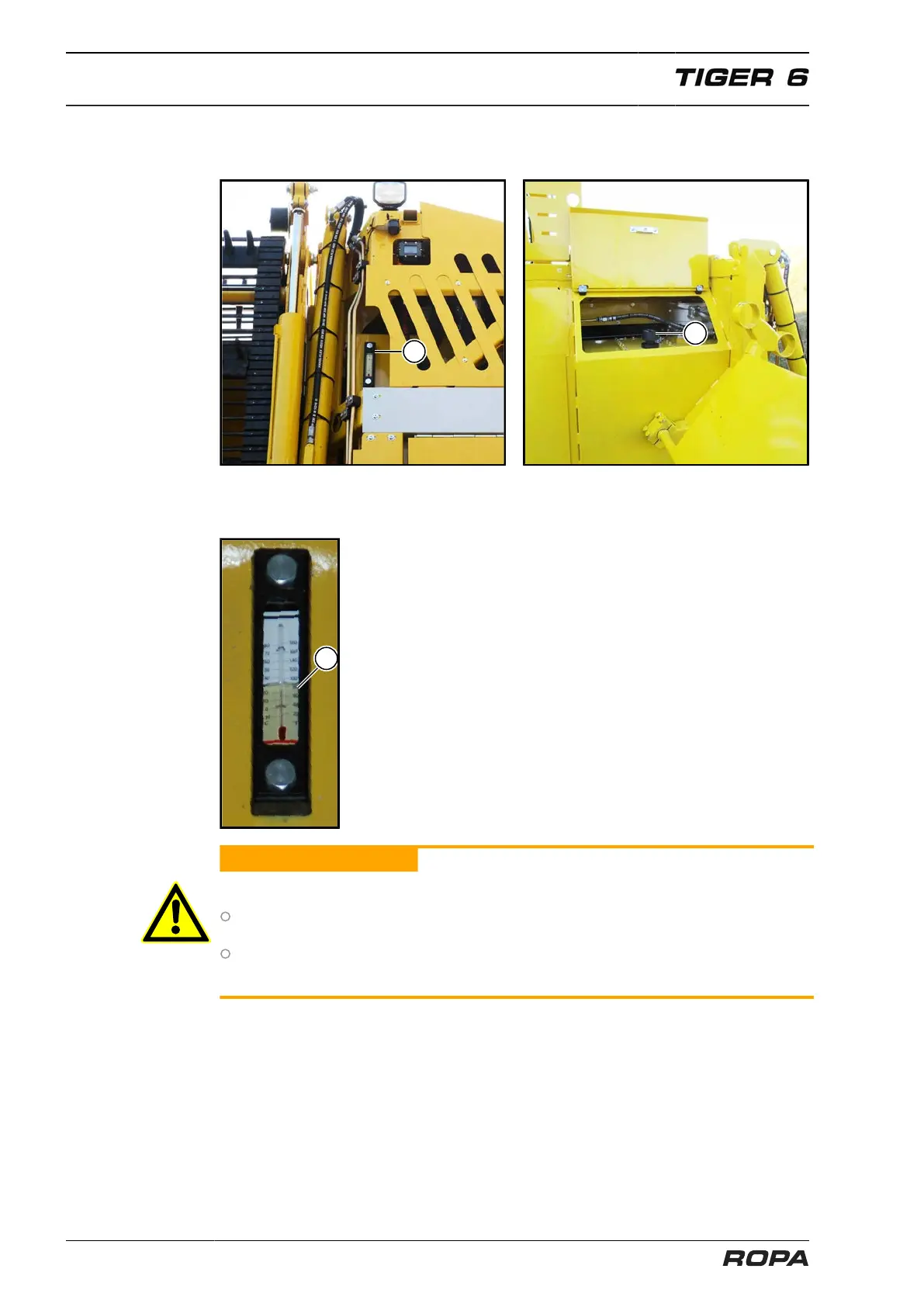

7.3.1 Hydraulic oil tank
(1) Inspection glass oil level + oil
temperature
(2) Oil filling cap
WARNING
Falling hazard!
For maintenance work on the hydraulic fluid tank, use a ladder standing on a safe
base.
In no case climb over the rear bunker wall and do not step on the roof of the engine
compartment.
The tank for the hydraulic fluid is located at the rear left in the engine compartment.
In addition to the display on R-Touch, oil level and oil temperature can also be read
at the inspection glass (1) (on the left side of the hydraulic oil tank). The hydraulic
fluid level should always remain in the range between the centre of the inspection
glass and the upper edge of the inspection glass. Make sure that the oil level in the
hydraulic oil tank is correct at all times. During all work on the hydraulic system, make
sure of the utmost cleanliness!
Please observe that different types of hydraulic fluid may not be mixed.
