6.14.10 Share body guide (linear guide)
The share bodies are each mounted in such a manner on the central shaft that they
may individually make linear displacement movements. The displacement range is
up to 70 mm. This range is required to optimally adjust the share bodies to the beet
rows. The complete share body guide has an oil filling. There is a transparent oil level
indicator (1) on each share body. During lifting, make sure that the oil level indicators
are always filled up with oil. Refill oil when no oil is visible in the oil level indicator any
more.

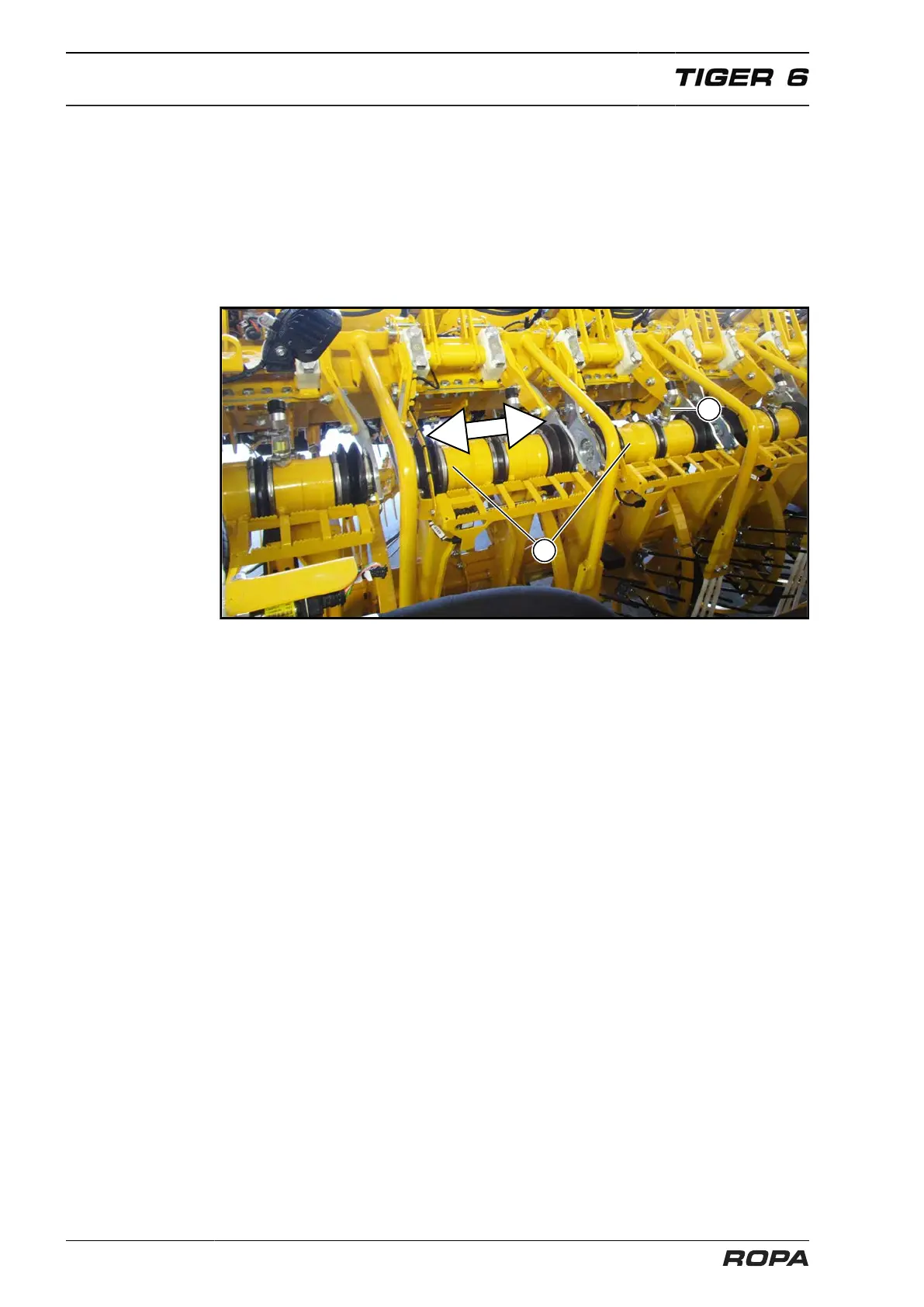

(1) Oil level indicator
(2) Linear guide
