Operation
Compressed air system
342 / 564
6.22.1 Compressor
The entire pneumatic system of the machine is supplied with compressed air by a
compressor. The compressor is flanged directly to the engine. Air intake of the com-
pressor takes place via the engine air filter. Once the preset maximum pressure is
reached the pressure regulator blows off automatically. The compressor is mainte-
nance-free.
6.22.2 Compressed air reservoir

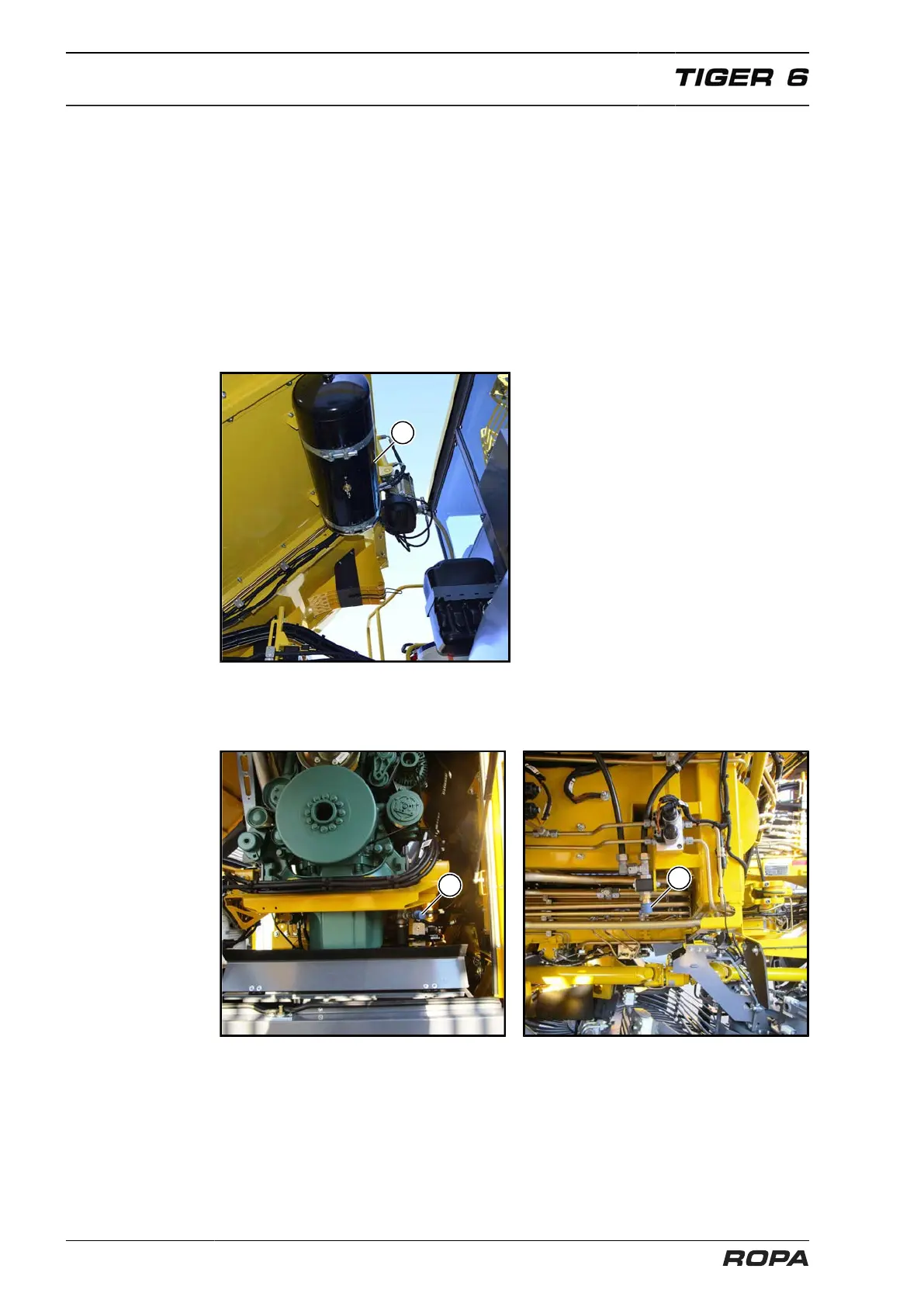

The compressed air reservoir (1) is located on the bunker front wall near the wheel
chocks. It supplies the pneumatic system with compressed air.
(1) Compressed air reservoir
Compressed air connectors
(2) Compressed air coupling in
engine compartment right
(3) Compressed air coupling near
the strainer wheel camera
One compressed air service connector (2) is located in the engine compartment
behind the right engine side cover.
The second compressed air service connector (3) is located on the right side of the
vehicle over the first strainer wheel. Compressed air can be used from here for main-
tenance and repair work.
