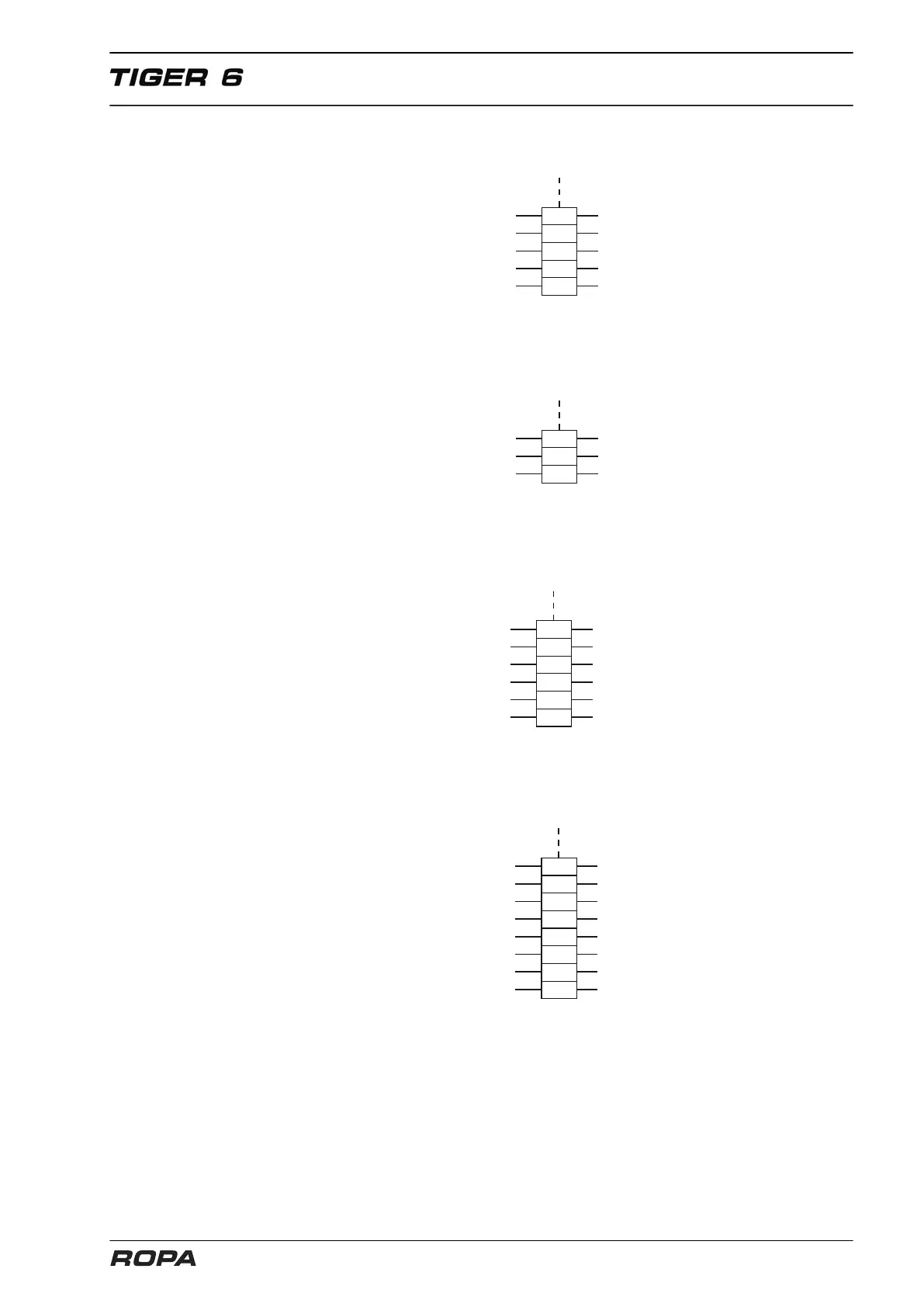

9.7.3 Lubricating plan for RIS defoliator
105
Defoliator shaft left
Defoliator shaft right
25
Height adjustment support pipe
Height adjustment support pipe
25
Depth-control wheel hub left
25
Depth-control wheel left
25
Leaf sensor left
Leaf sensor right
From main distributor lubricating circuit 3
Depth-control wheel hub right
Depth-control wheel right
ROPA item no.: 360013400
9.7.4 Lubricating plan for RISU defoliator
105
Defoliator shaft left
Defoliator shaft right
25
Height adjustment support pipe
Height adjustment support pipe
25
Leaf sensor left
From main distributor lubricating circuit 3
Leaf sensor right
ROPA item no.: 360023700
9.7.5 Lubricating plan for RASW defoliator
45*
Leaf auger
I
25
Depth-control wheel right
Leaf sensor
25
Depth-control wheel hub right
Depth-control wheel left
25
Scalper bracing tube height adjustment right
Depth-control wheel hub left
25
Leaf sensor
Scalper bracing tube height adjustment left
105
Defoliator shaft right
Defoliator shaft left
From main distributor lubricating circuit 3
ROPA item no.: 360016100
9.7.6 Lubricating plan for RASO defoliator
From main distributor lubricating circuit 3
45*
Leaf auger conv. left
I
25
Height adjustment support pipe
25
Depth-control wheel right
Depth-control wheel left
25
Depth-control wheel hub right
Depth-control wheel hub left
25
Depth-control wheel right inside
Depth-control wheel left inside
25
Depth-control wheel hub right inside
Depth-control wheel hub left inside
25
Leaf sensor right
Leaf sensor left
105
Defoliator shaft right
Defoliator shaft left
Height adjustment support pipe
ROPA item no.: 360013900
