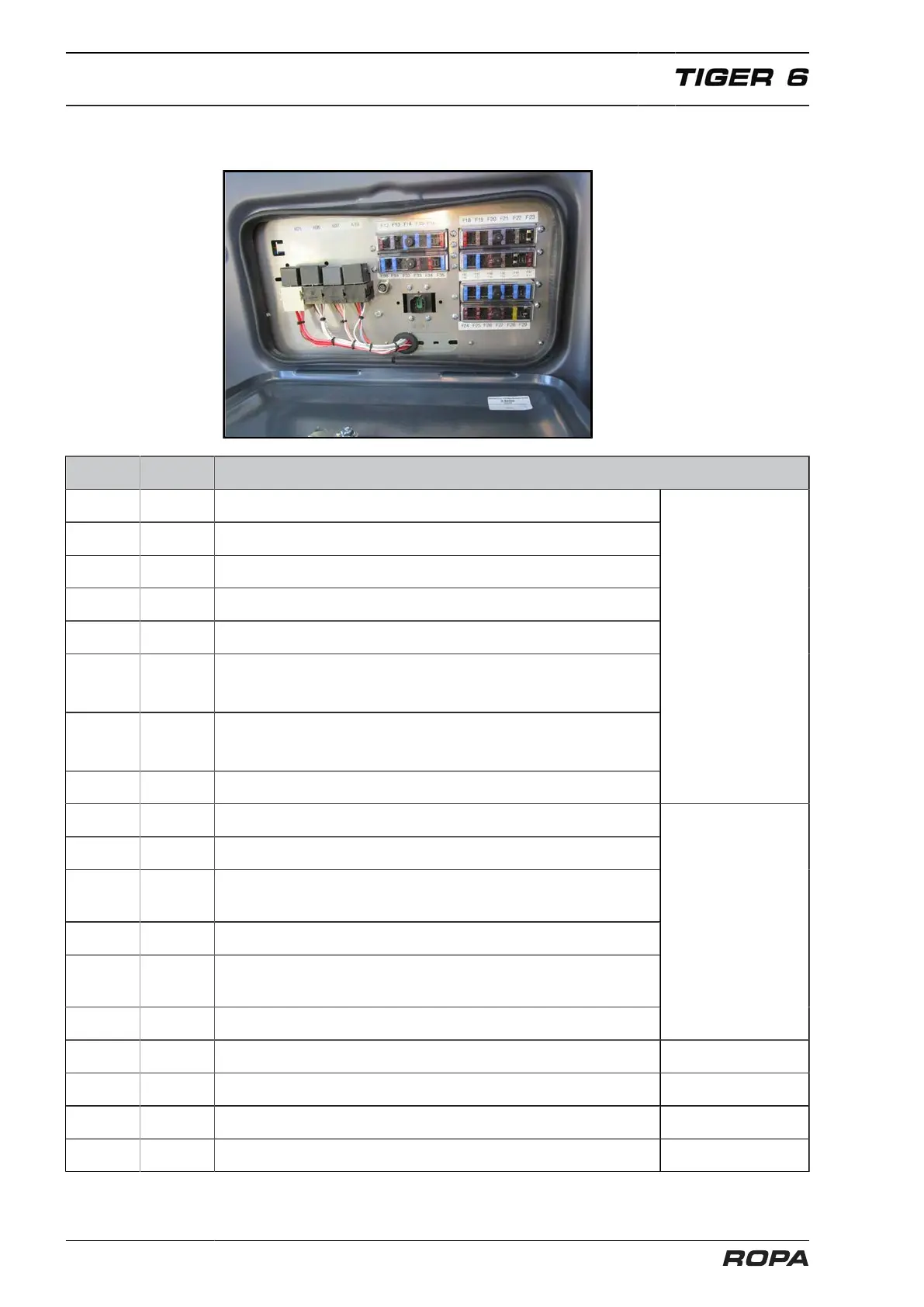

8.2.5 Fuses in the central electrical system in the driver's cabin
No. Ampere Function
F06 15 Pin 30 A01 computer ESR A
F07 15 Pin 30 A01 computer ESR A
F08 15 Pin 30 A02 computer ESR B
F09 15 Pin 30 A02 computer ESR B
F10 15 Pin 30 A15 computer ESR E
F11 15
Pin 30 A15 computer ESR E (PR2h lifter only)
Pin 30 A39 I/O module IV (RR lifter only)
F12 7.5
Pin 30 A07 colour terminal
Diesel engine diagnosis outlet X340
F13 3 Inside light right
Pin 30 from
X1
F14 15 Window wiper motor
F15 15 Cabin fan
F16 15
Pin 15 for generator, fuel tank sensor, oil tank filling level/tem-
perature, driving speed sensor, main battery switch
F17 10 Central lubrication
F18 10
Steering column switch, horn, flashing indicator, wiper, wiper
pump
F19 5 A19 air conditioning control unit
Pin
15
F20 3 Sensors in the lifter fuse box 24 V K01/86
F21 not used Pin 30 X1
F22 5 Video monitor right/left Pin 15
F23 not used
