ROPA Tiger 6 - Fuses in the Central Electrical System Outside on the Drivers Cabin

Malfunction and Remedies
Fuses
484 / 564

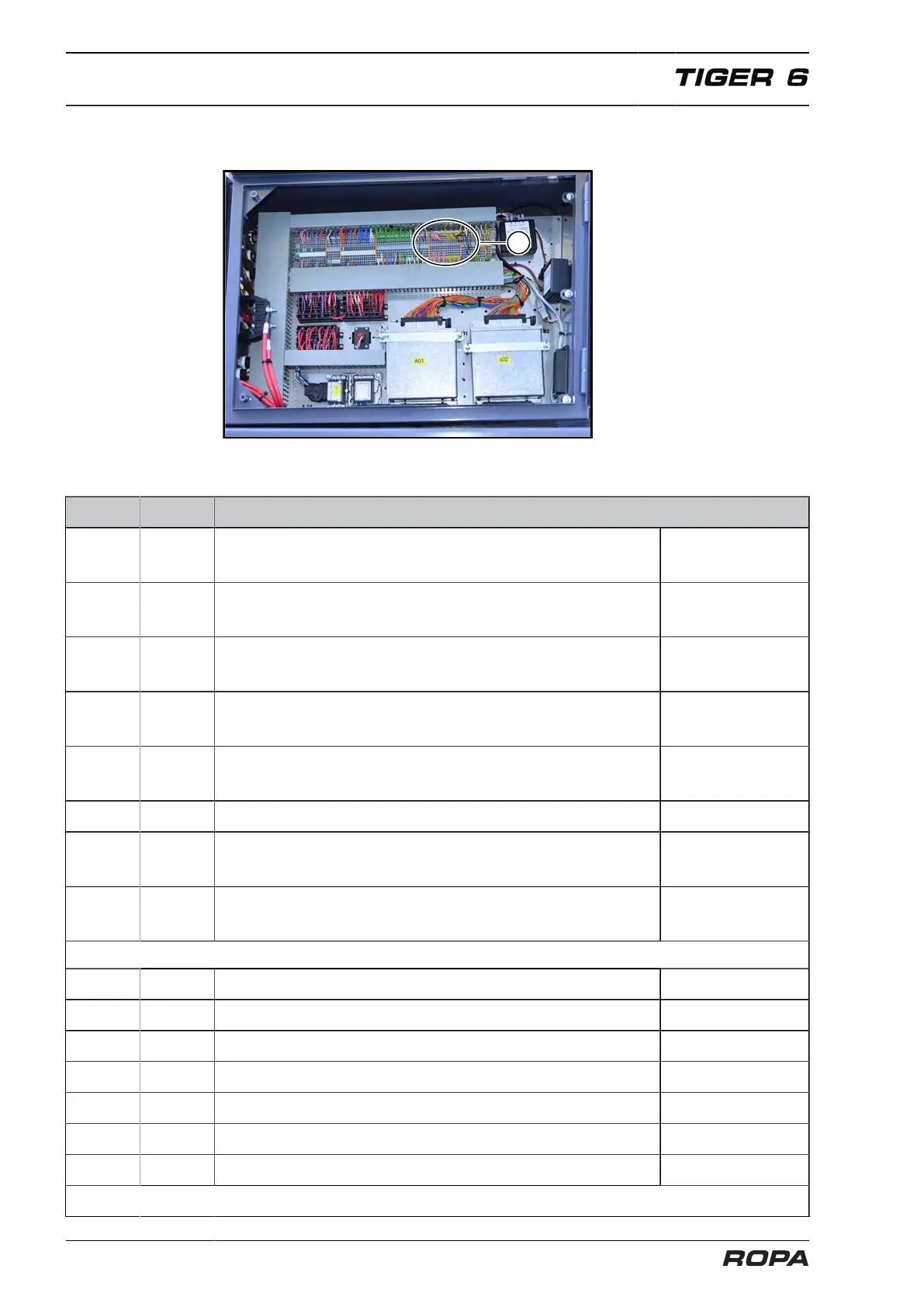

8.2.6 Fuses in the central electrical system outside on the driver's cabin
1
(1) Electronic fuses in the central electrical system
No. Ampere Function
F70r 100 mA
B59 PS secondary lifter drive/infeed conveyor
B171 pressure chassis left
24 V
F71r 100 mA
B36 ultrasound front
B174 pressure prestress chassis right
24 V
F72r 100 mA
B60 PS defoliator/lifter drive
B170 pressure chassis right
24 V
F73r 100 mA
B61 PS brake pressure
B03 sensor wheel angle 3st axle
24 V
F74r 100 mA
B42 autopilot off
B175 pressure prestress chassis left
24 V
F120r 100 mA B178 PS 3-point susp. relief (right) 24 V
F121r 100 mA
B94 position three-point susp. right
B95 position three-point susp. left
24 V
F122r 100 mA
B02 sensor wheel angle 2st axle
B154/B155 inclination sensor articulation front part
24 V
F80r 100 mA B20 rpm infeed conveyor 8.5 V
F81r 100 mA B32 sensor driving pedal 2 8.5 V
F82r 100 mA B01 sensor wheel angle 1st axle 8.5 V
F83r 100 mA B09 sensor driving pedal 1 8.5 V
F84r 100 mA B24 rpm elevator 8.5 V
F85r 100 mA B146 1st axle swing angle 8.5 V
F86r 100 mA B04 sensor articulation angle 8.5 V
ROPA item no. 3550534GB
