Operation
Bunker
313 / 564

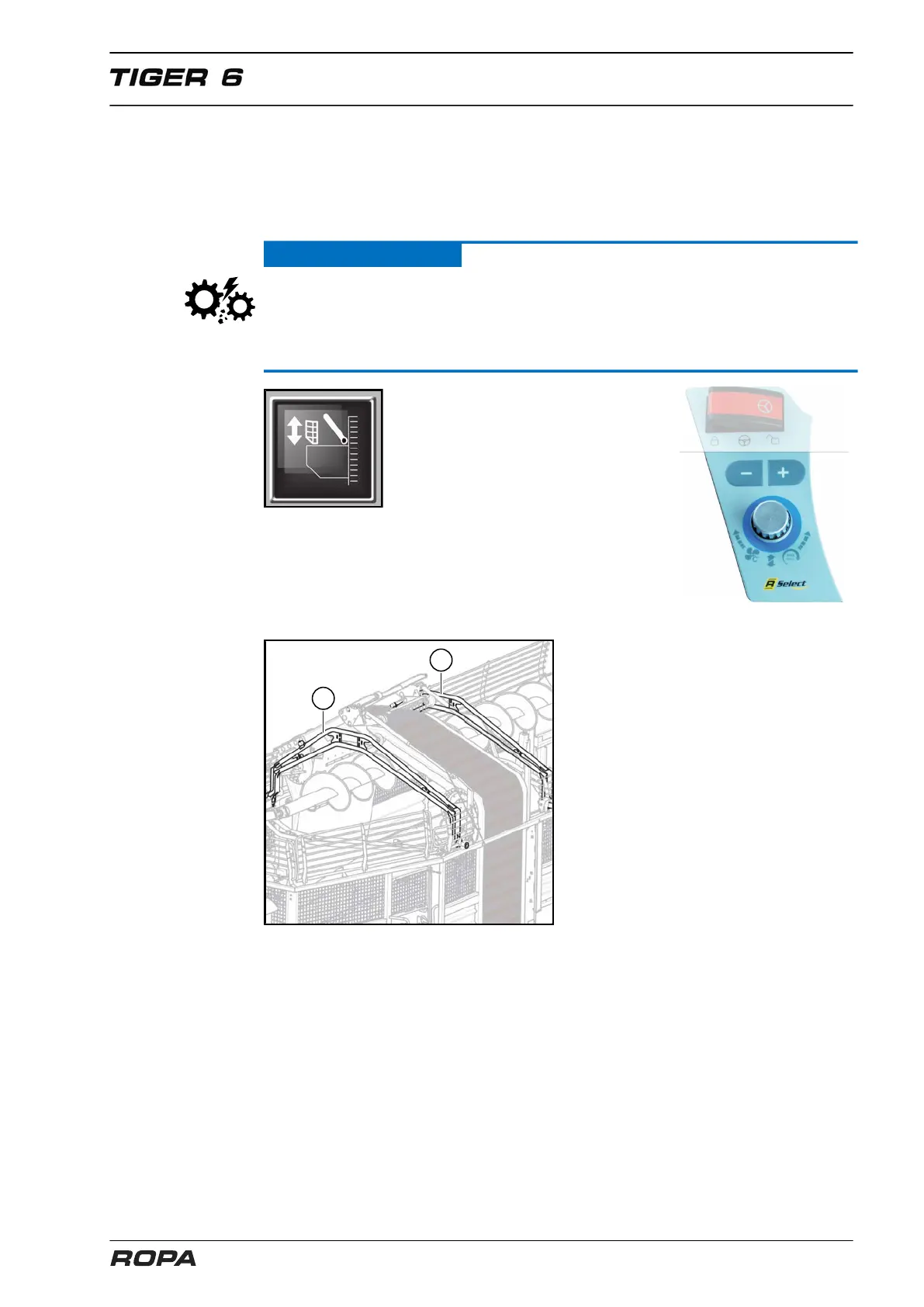

6.18.1 Folding bunker bars out/in
The both bunker connecting bars are to be swung up after folding the elevator out.
The bunker bars connect right and left bunker side walls and, thus increase the stabil-
ity of the whole bunker. Additionally, the bunker front wall folds upward.
ATTENTION
Danger of machine damage.
When folding the bunker bars out and in, some machine parts may collide and there-
fore seriously damage the machine. That's why always pay attention to the right order
when folding the bunker out and in! (See Page 321)
Bunker bar + bunker front wall folding
Choose this function with R-Select.
+ Key = Fold bunker bars out (working position)
- Key = Fold the bunker bars in (transport position)
(2) Bunker bar
