Operation
Road traffic
183 / 564
6.8.2 Additional chassis (option)
In order not to exceed the prescribed axle load on the public roads, e.g. in Federal
Republic of Germany, in certain states the machine has to be equipped with the addi-
tional chassis.
6.8.2.1 Additional chassis coupling
To couple the additional chassis, please proceed as follows:
– Perform the coupling process preferably on an even surface.
– Switch into the operating mode "Field".
– Move the lifting unit into the central position.
– Swing up the leaf sensor and secure it using safety hooks.
– Swing the depth-control wheels in and lock them.

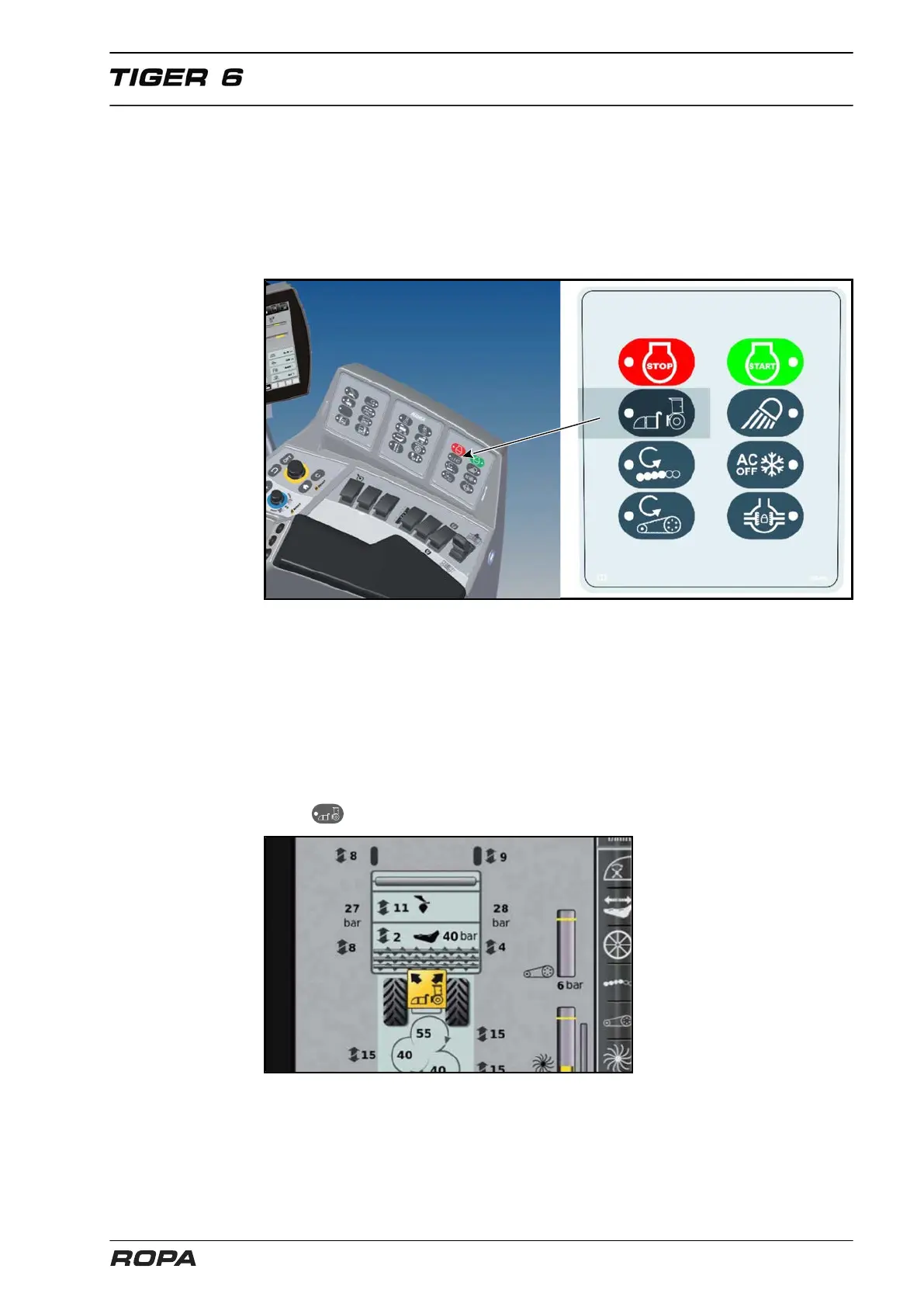

6.8.2.1.1 Actuate three-point suspension in the coupling mode
– You can activate the "three-point suspension coupling mode" by pressing the but-
ton on keypad III.
