Operation
Road traffic
184 / 564

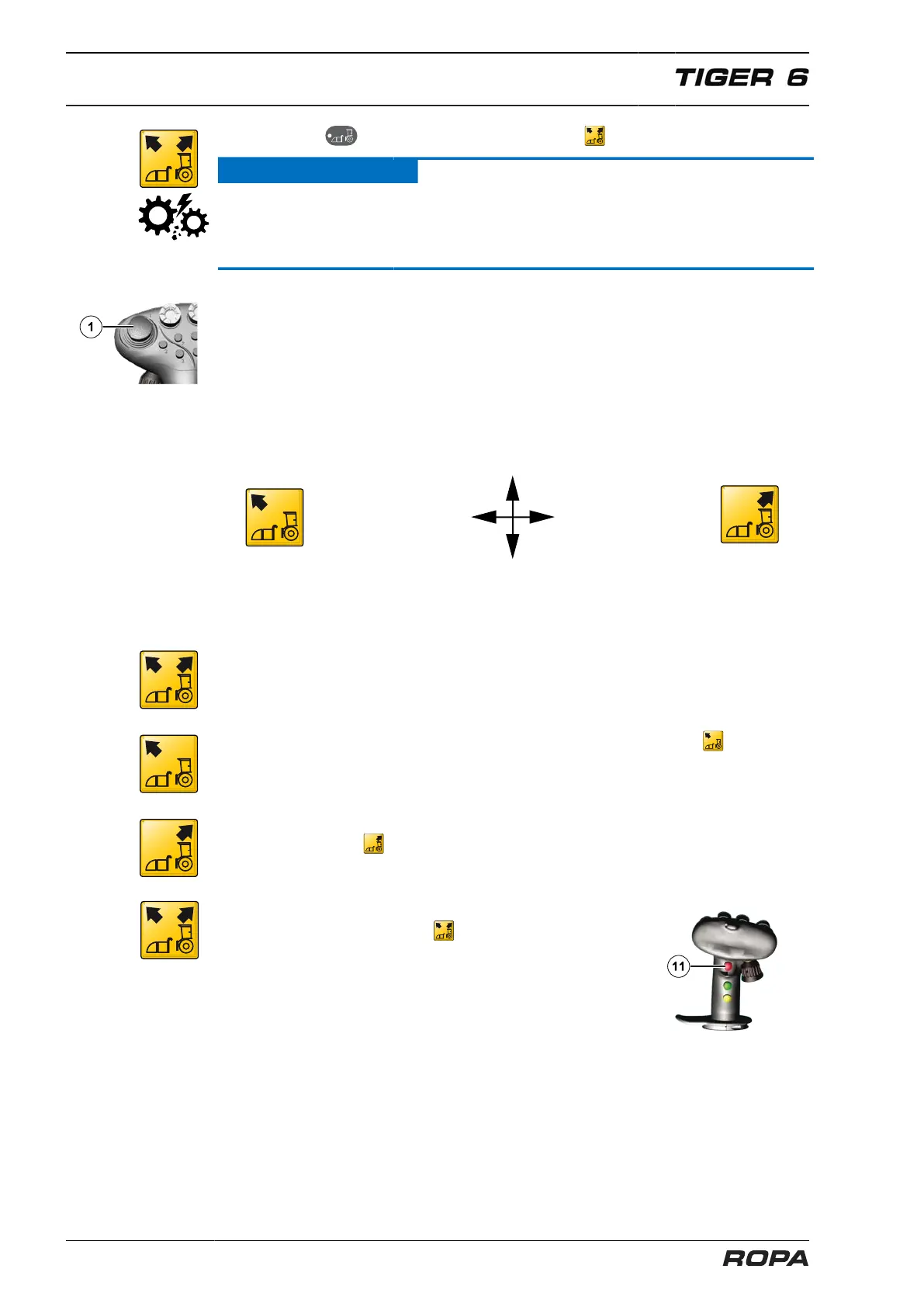

The LED in the button lights, the coupling mode icon appears on the R-Touch.
ATTENTION
Danger of machine damage.
The reversing lock is also switched off with the lifter lowered in "three-point suspension
coupling mode" and in "chain hoist coupling mode".
In "three-point suspension coupling mode" the three-point suspension can be actuated
separately on the right and left with the mini-joystick (1).
Lower three-
point sus-
pension
Activate three-
point opera-
tion only left
Activate three-
point opera-
tion only right
Raise three-
point sus-
pension
– Push mini joystick forward, the three-point suspension lowers synchronically.
– Push mini joystick backward, the three-point suspension raises synchronically.
– Push mini joystick shortly left and the three-point operation only left is activated.
The three-point suspension only lowers and raises on the left.
– Push the mini joystick briefly to the right and the three-point operation is only acti-
vated on the right . The three-point suspension only lowers and raises on the
right.
– Pressing the multifunctional key (11) terminates the three-
point operation left/right, the icon appears and the three-
point suspension raises and lowers synchronously again.
