7.7 Pneumatic system
The pneumatic system is to a great extent maintenance-free. Maintenance work is
only required on the compressed air tank. The compressor is maintenance-free. The
compressed air tank is located on the bunker front wall.
Drain the condensation water at the compressed air tank after each
100 operating hours. If the machine is to be taken out of operation for a longer period
(more than a week) the condensation water must also be drained from the com-
pressed air tank. For this, press the drain valve slightly sideward or backward.
CAUTION
Falling and injury hazard!
– Before draining water, stop the machine and switch off the engine.
– The machine must be secured against inadvertent starting of the engine.
– All maintenance and repair work may only be performed by trained personnel.
– Use a stable ladder for all maintenance work on the compressed air reservoir.
– Always wear gloves, protective goggles and suitable protective clothing.

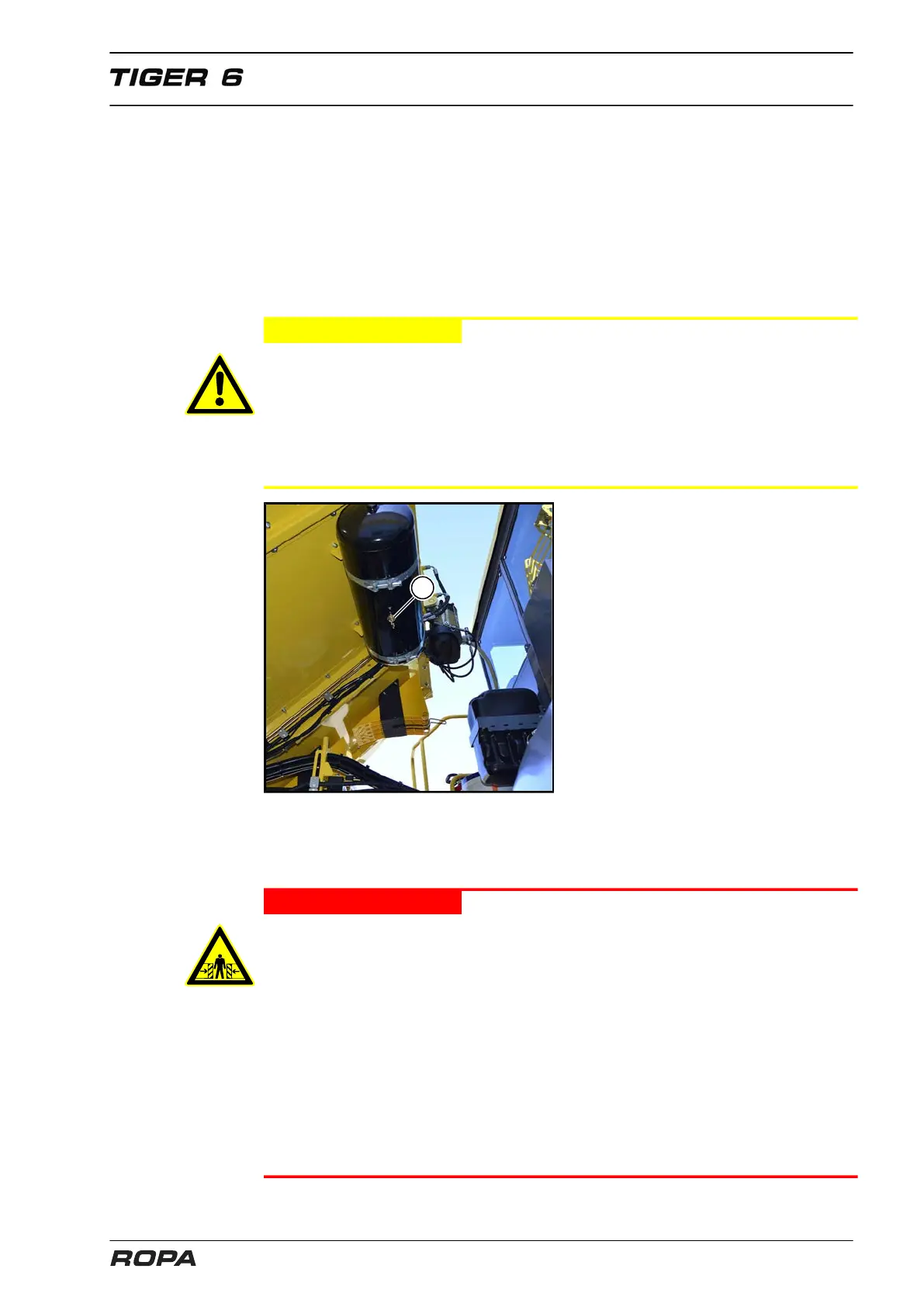

(1) Drain valve
7.8 Defoliator
DANGER
Crushing hazard!
When working on the raised lifting unit, there is the hazard that the lifter or defoliator
suddenly move down. People being in this area may be severely injured.
– Before beginning work, always switch off the engine, switch off the ignition, pull off
the key and lock the driver‘s cabin. The key must be securely kept by a reliable and
trustworthy person during work (kept in possession).
– The defoliator must be moved to maintenance position for work on the bottom of
the defoliator and secured by attaching the two locking links to the side lifter arms.
– Before starting work the lifter must be raised and secured with the two safety
chains attached to the three-point suspension.
– Comply with the applicable regulations for work health and safety when working
under raised loads.
