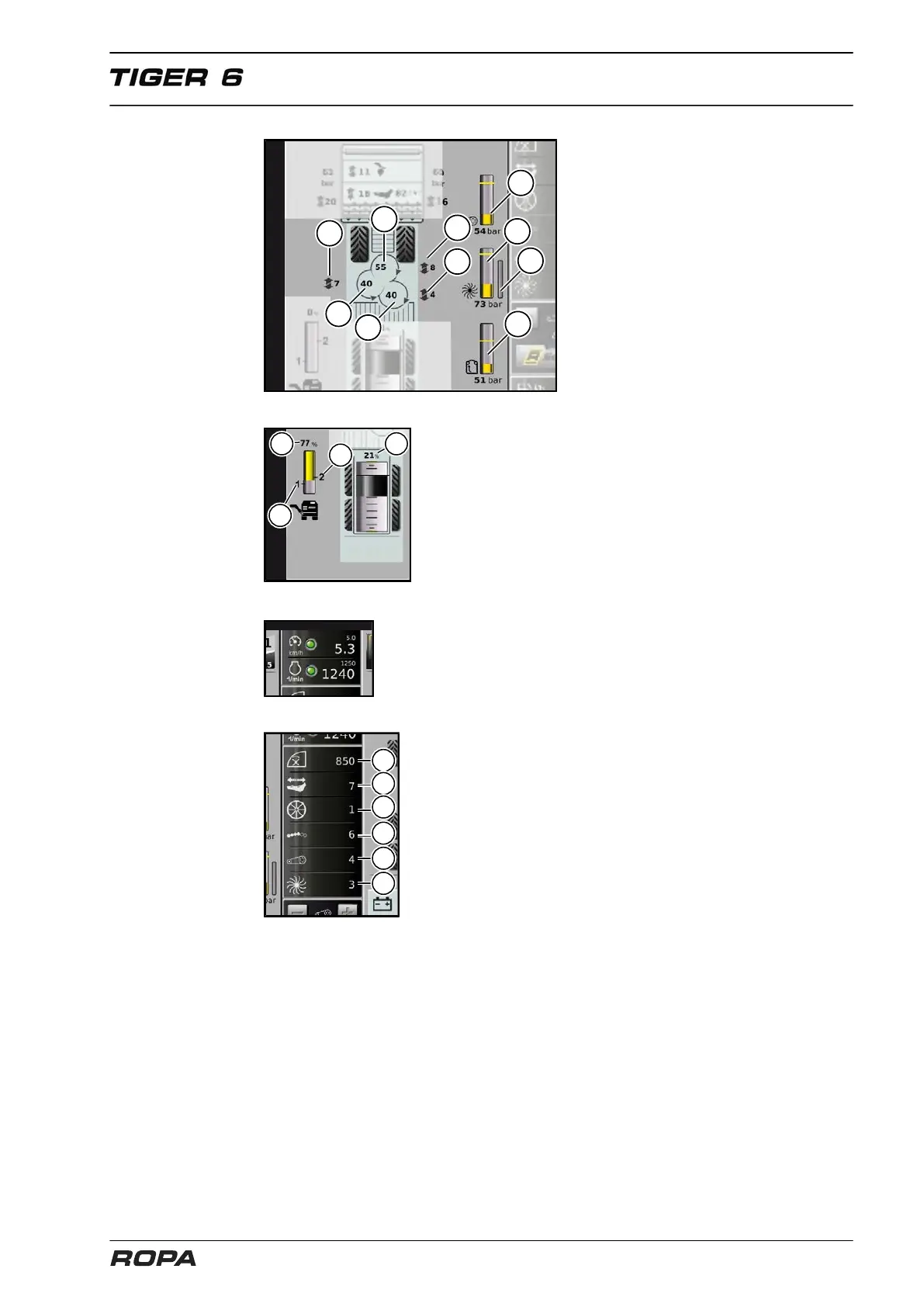

[C] Display area cleaning path
(1) Guide grid height strainer wheel 1
(2) Guide grid height strainer wheel 2
(3) Guide grid height strainer wheel 3
(4) Rpm strainer wheel 1
(5) Rpm strainer wheel 2
(6) Rpm strainer wheel 3
(7) Load infeed conveyor drive
(8) Load strainer wheel drive
(9) Automatic speed adjustment
strainer wheels
(10) Load elevator drive
1
4
2
3
[D] Display area bunker management
(1) Display bunker filling level
(2) Display unloading conveyor
height
(3) Saved unloading conveyor height
1
(4) Saved unloading conveyor height
2
[E] Display field driving and rotational
speed diesel engine
(See Page 159)
1
2
3
4
5
6
[F] Quick overview lifting parameters
Display of set rotational speeds of:
(1) Defoliator shaft
(2) Shaking share
(3) Depth-control shaft
(4) Lifting rollers
(5) Infeed conveyor
(6) Strainer wheels (turbines)
