Operation
Defoliator
234 / 564

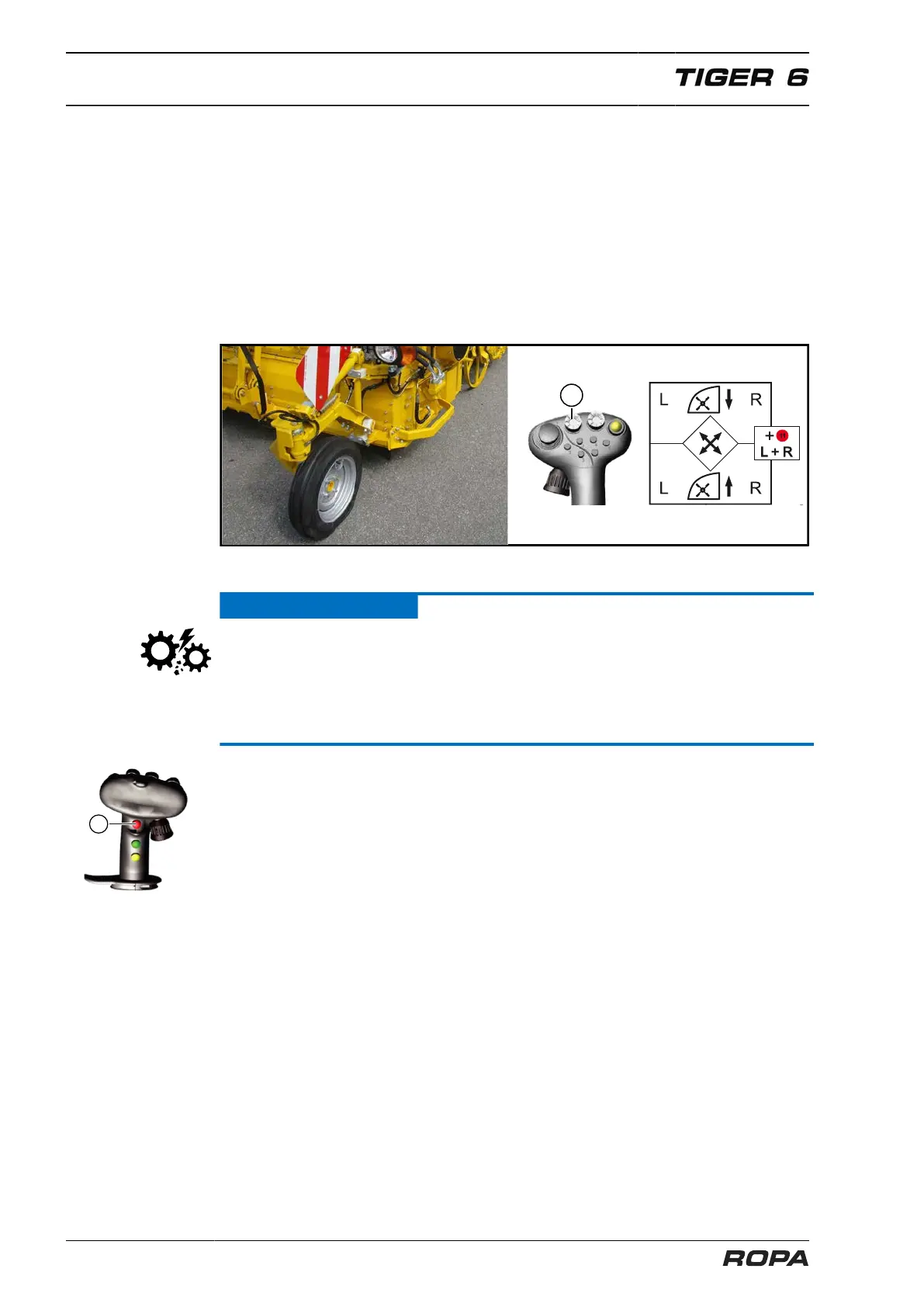

Set the defoliator depth with the X-Y key (4) .
Push the X-Y key diagonally forward left/right: depth-control wheels left/right higher =
leaf topping lower.
Push the X-Y key diagonally backward left/right: depth-control wheels left/right lower =
leaf topping higher.
If the X-Y key is touched briefly, the adjustment will be performed gradually by one
step up or down.
To directly adjust for several stages at once, the X-Y key may be moved to the
required position and held until the desired setting has been reached.
Depth-control wheel in lifting position
ATTENTION
Danger of machine damage.
– In case of cramped space, always make sure that you do not push the depth-
control wheels against a slope or baulk before lifting the three-point suspension,
because it causes damage to the suspension of the depth-control wheels. Use the
additional topper lifting (See Page 237).
The X-Y key (4) is programmed for the following dual function: if the X_Y key (4) and
multi-key (11) are pressed simultaneously, the defoliator depth is adjusted equally on
both sides regardless of which side the X-Y key is moved to.
