ROPA Tiger 6 - Page 266

Operation
Lifter
266 / 564
1
2
3

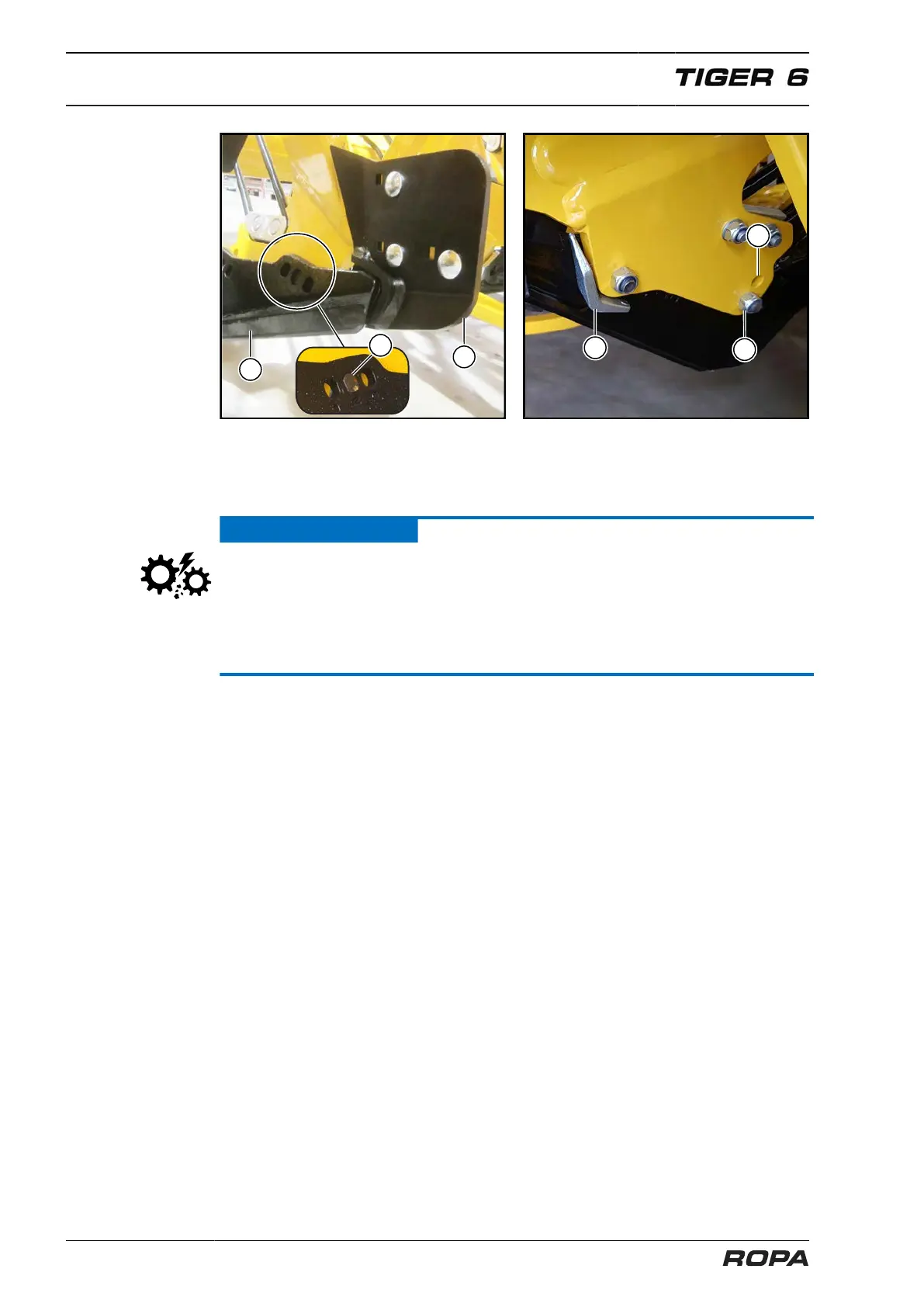

(1) Lifting share
(2) Share extension
(3) Unibolt screw
6
5
4
(4) Upper bore
(5) Lower bore
(6) Wear angle
ATTENTION
Danger of machine damage.
An additional wear angle (6) is fastened with the front share screw. This protects the
share holder piece from wear, particularly with very deep lifting and partially worn
shares.
– Immediately replace worn lifting shares.
