ROPA Tiger 6 - Page 275

Operation
Lifter
275 / 564
1
2
3
4
5
6
7
8

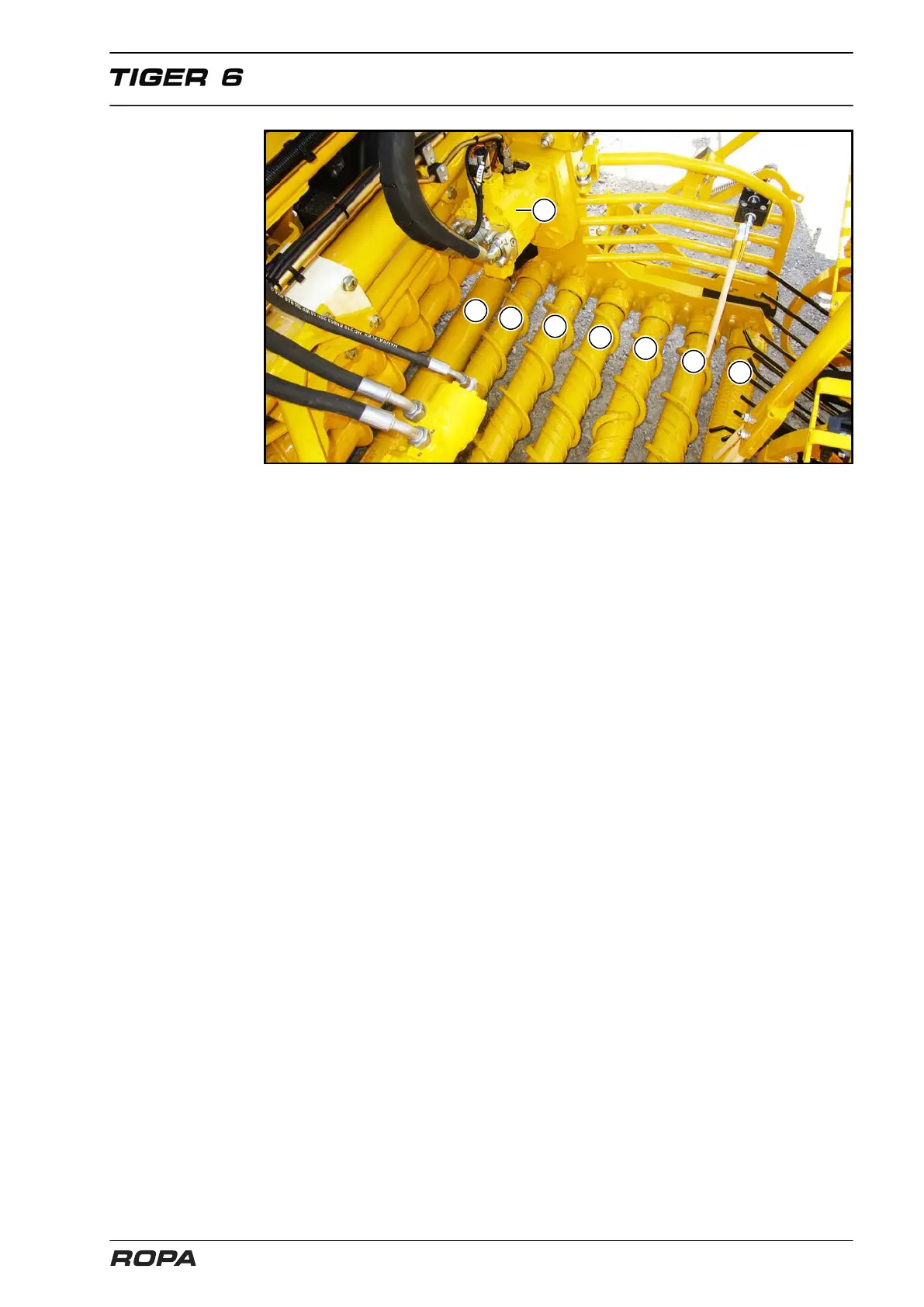

(1) Lifting roller 1
(2) Lifting roller 2
(3) Lifting roller 3
(4) Lifting roller 4
(5) Lifting roller 5
(6) Lifting roller 6
(7) Lifting roller 7
(8) Lifting roller 1-6 hydraulic motor
