Operation
Lifter
286 / 564
ATTENTION
Danger of machine damage.
– During side-shift, exactly watch the individual components (depth-control shaft and
share bodies), to avoid collisions.

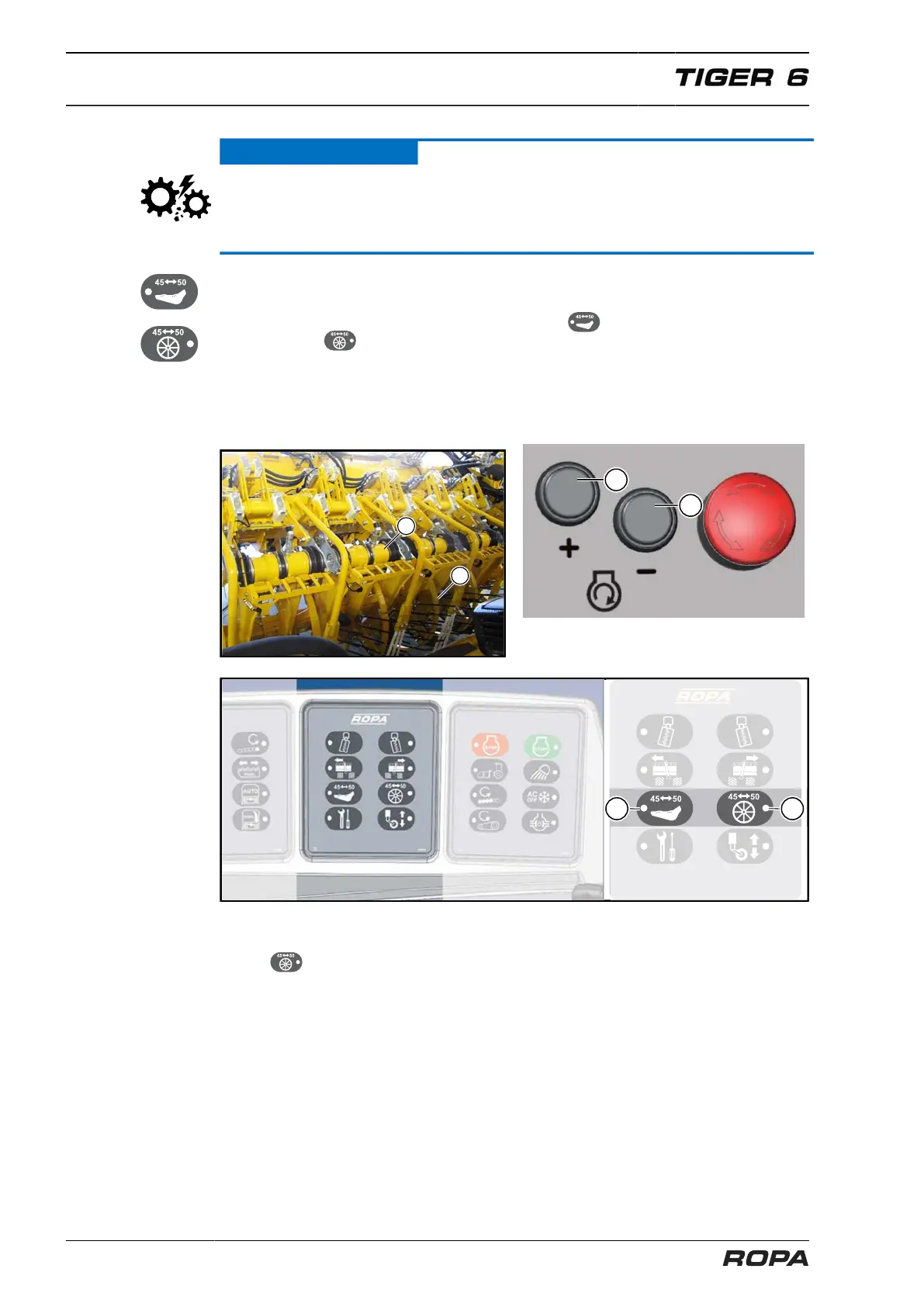

To shift the depth-control roller (3), share bodies (4) and scalper proceed as follows:
– Start engine.
– On keypad II alternately press and hold the key (22) "Shift row distance 45-50"
and the key (23) "Shift depth-control shaft 45-50".
– Pressing simultaneously the key - (42) you shift the chosen components together
(reduce row distance) or:
– Pressing simultaneously the key + (41) you shift the chosen components apart
(increase row distance).
– Switch off engine.
– Release the pressure of the depth-control roller side-shift completely by pressing
key (23) and simultaneously pressing keys (41) and (42).
– If the row distance has been reduced from 50 cm to 45 cm, the PA rod retainer (2)
must be folded down.
– Remove the securing chains on the lifter.
– Start engine.
