Operation
Hydraulic system
339 / 564

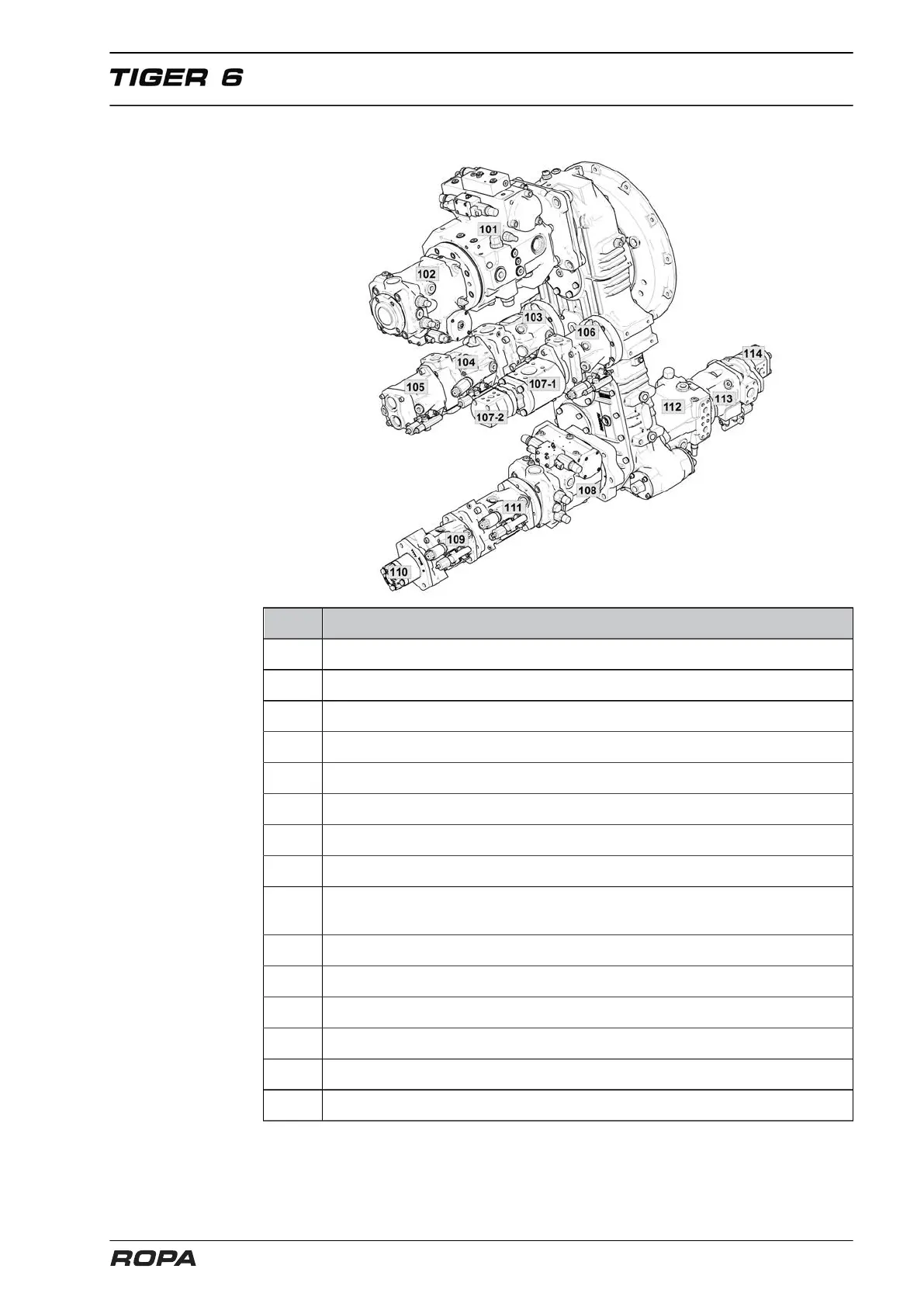

Hydraulic pumps:
Pos. Function
101 Traction drive
102 Bunker unloading
103 Operating hydraulics
104 Shaking share/leaf-spreader
105 Front axle steering
106 Ventilator drive water radiator and charge-air cooler
107-1 Prestress pump
107-2 Fan drive oil cooler
108 Main lifter drive: defoliator shaft, leaf auger conveyor (only RBS and RAS), lifting
rollers 1-6, last lifting roller, short lifting rollers, 2x paddles
109 Infeed conveyor
110 Gear box lubrication PDG (works with PDG gear oil)
111 RR lifter depth-control roller
112 Strainer wheel drive, also unloading the bunker into a pile
113 Bunker auger/elevator, elevator cover pipe, agitator in the strainer wheel (option)
114 CVR lubrication (works with CVR gear oil)
