Maintenance and Service
Defoliator
423 / 564

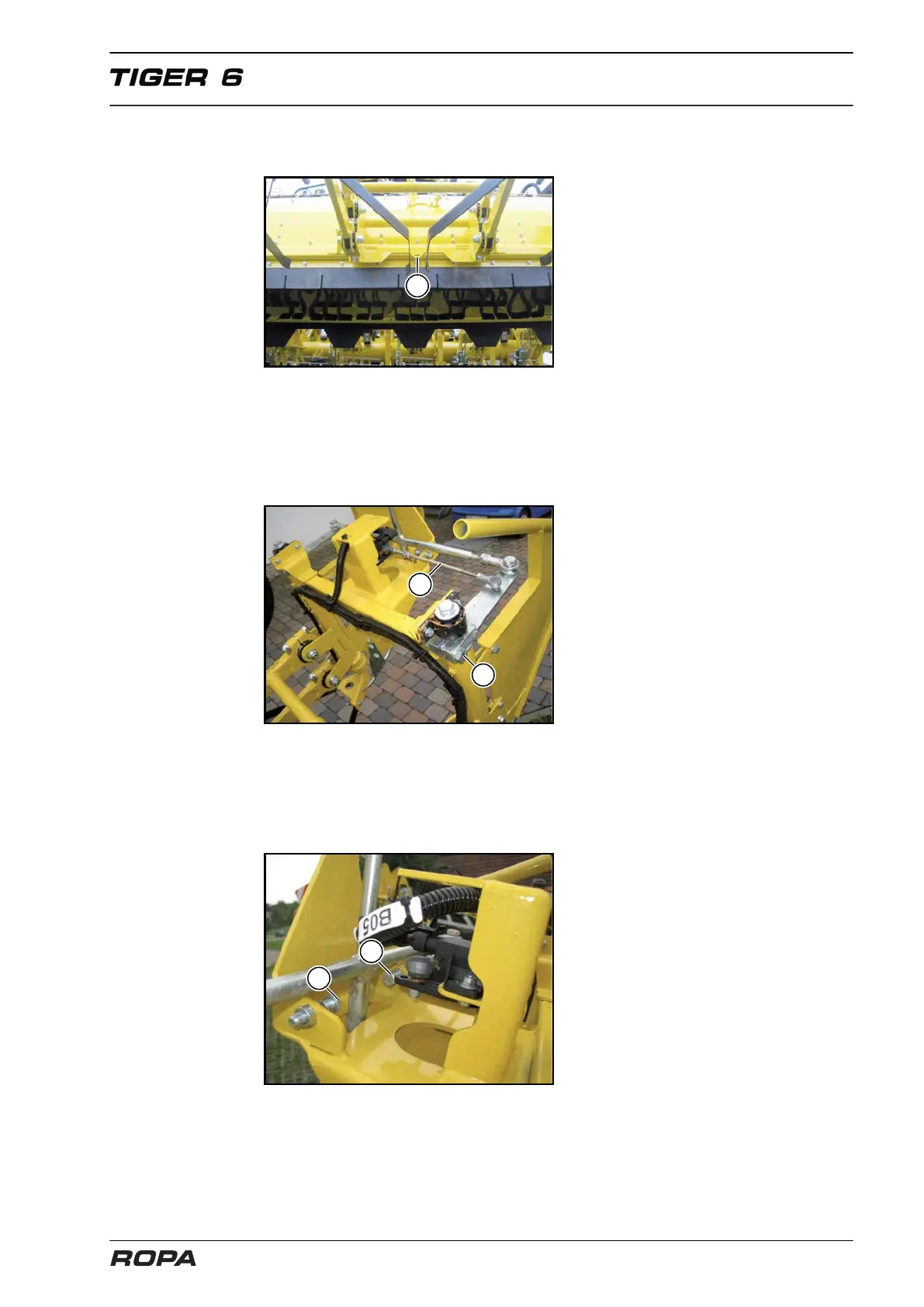

If some other values are displayed, then the central position must be set using the
basic settings for the rod structure.
– For this, move the spring rods precisely to the centre of the beet row. This is
located in the centre of the support bracket (indicated with an arrow (3) to simplify
the work).
– Keep the spring rods fixed in this position.
– Loosen the screws (5) of the clamping lever left/right for rough adjustment.
– Shift the bar structure out until roughly the value 0 is shown on the R-Touch.
– Tighten both screws (5) again.
– Check the value for the central display on the R-Touch. If necessary, set the length
of the bar structure (4) to the sensor of leaf finder and stop bolts (2) until the correct
values are shown in the R-Touch.
