Operating Components
Driver’s seat
67 / 564

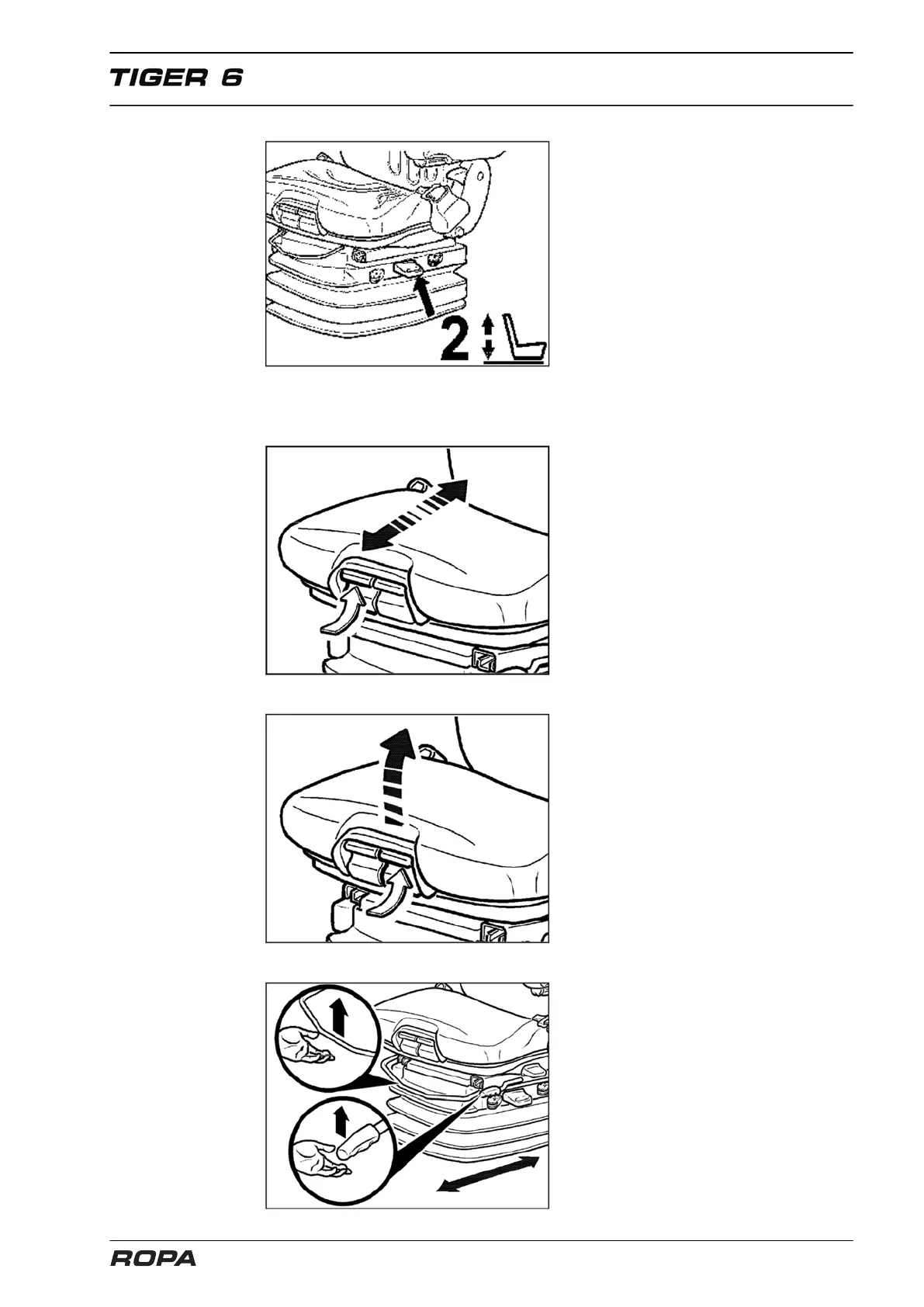

Height adjustment
The seat height can be set pneumatically
and is infinitely adjustable.
The seat height can be altered by pulling
or pressing the actuator lever (arrow). If
the adjustment reaches the top or bottom
end stop, the height is adjusted automat-
ically in order to guarantee a minimum
spring travel.
Set the shock absorber to the soft setting
before adjusting the height.
In order to avoid damage, do not operate
compressor for more than 1 minute.
Seat depth adjustment
The depth of the seat pan can be individ-
ually adjusted.
Pull the right handle up to adjust the seat
depth. By moving the seat cushion back-
wards or forwards the desired seating
position can be reached.
Seat pan angle adjustment
The angle of the seat pan can be individu-
ally adjusted.
Pull the left handle up to adjust the seat
angle. By exerting pressure on or off the
seat pan it can be moved to the desired
angle position.
Longitudinal adjustment
Moving the locking lever upwards
releases the longitudinal adjustment.
After adjustment the locking lever must
audibly latch into the desired position. It
should not be possible to move the dri-
ver’s seat into another position when it is
locked.
Do not life the locking lever with the leg or
calf.
