Spectracom SecureSync User Manual

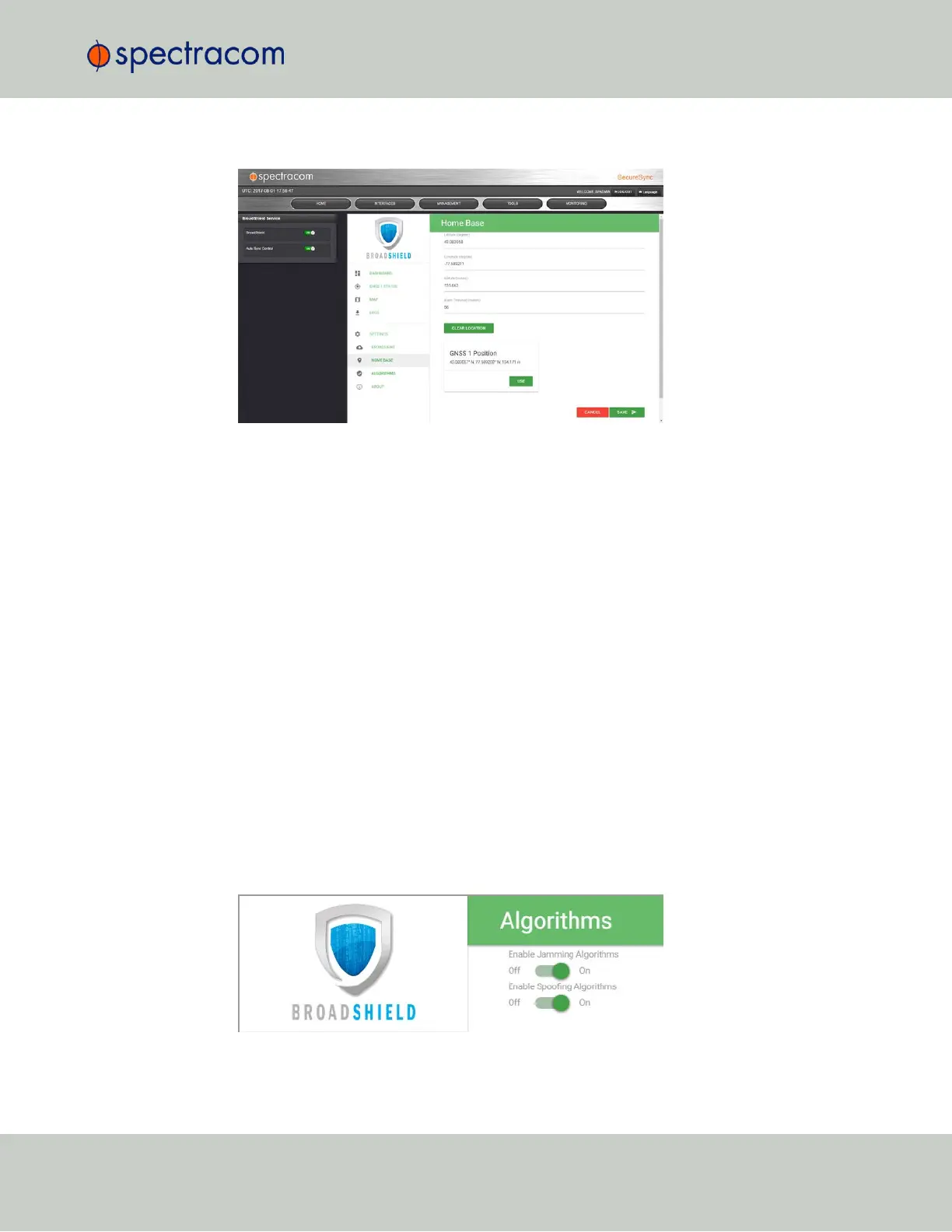

HOME BASE
By setting the HOMEBASE position you allow BroadShield to use this location as a reference
position for spoofing detection: Should BroadShield detect that the geographic position repor-
ted by SecureSync's GPS receiver seems to move beyond the set Alarm Threshold (even though
SecureSync does not move), an alarm will be triggered.
The standard use case is to make your GNSS 1 Position your HOME BASE:
1.
Should the position fields be populated (other than the Alarm Threshold), click
CLEARLOCATION (this will prevent BroadShield from issuing an alarm once you SAVEd
the new position.)
2.
Click USE in the GNSS 1 Position box to apply the settings.
3.
The default Alarm Threshold is 50 m, i.e. any detected position shift beyond a 50-m circle
around the HOMEBASE position will cause an alarm. You can change this setting to
adjust the sensitivity.
4.
Click SAVE to accept the entered values.
A less common use case may be that you want to pre-set the unit's position for later use e.g., if
the SecureSync unit will be deployed in a different location: Set a position manually by enter-
ing lat/long (format: xx.xxxxxx degrees) and alt. Note, however, that this may cause a spoof-
ing alarm, since BroadShield detects a difference between the HOME BASE position and the
GNSS position.
ALGORITHMS
3.3 Managing References
CHAPTER 3 • SecureSync User Reference Guide Rev. 26
177

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
