1.

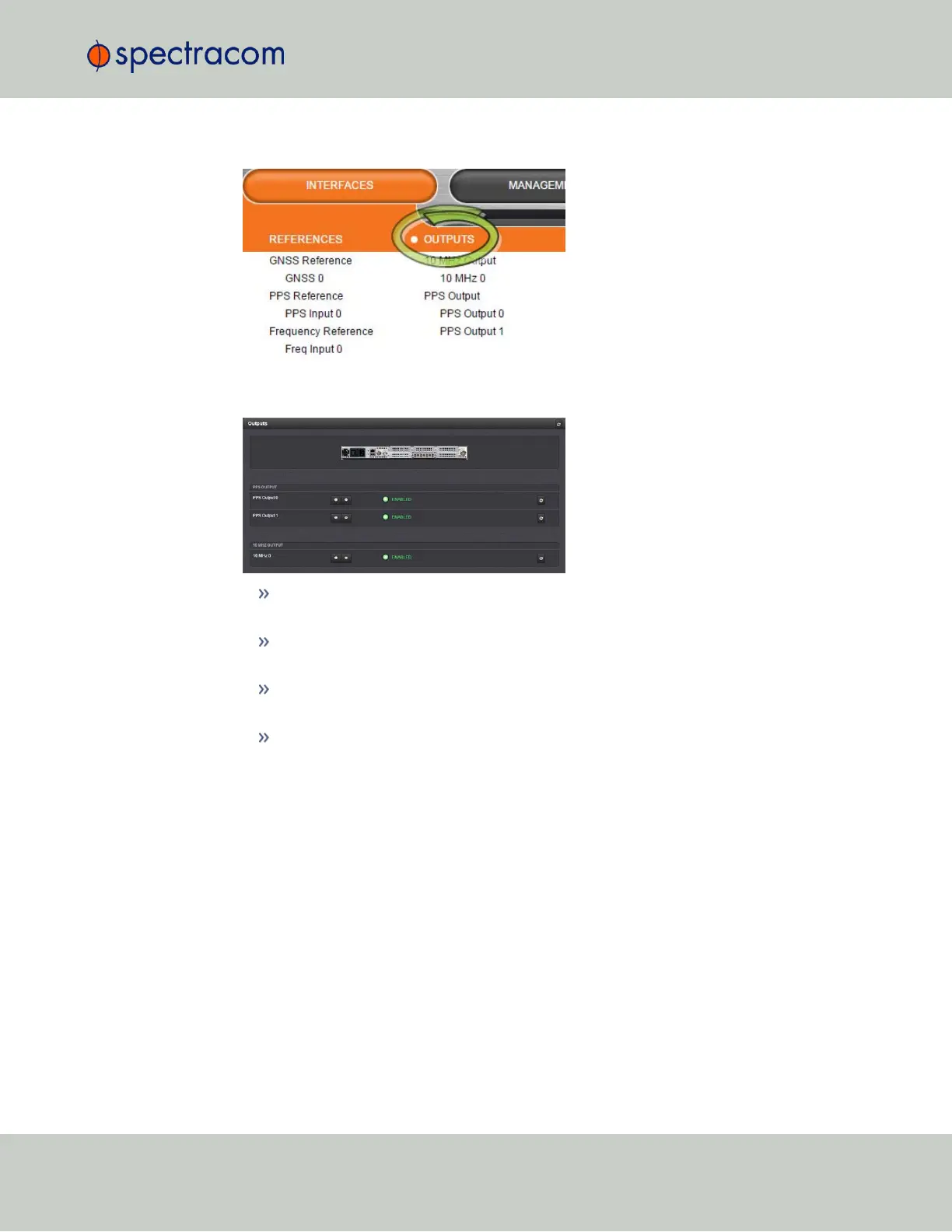

Select INTERFACES and click OUTPUTS in the menu heading.
2.
The Outputs panel will list all the outputs installed, sorted by category.
To display more detailed information about a particular output, click the corresponding
INFO button.
To edit the settings of an output, click the GEAR button (see also "Configuring Outputs"
on page136.)
To refresh the information displayed, click the REFRESH button (circling arrows icon on
the right side of the screen).
On the rear panel illustration, click on an output connector to highlight its list entry.
Monitoring all outputs of a specific type
To monitor all the outputs of a particular category (PPS, for example) simultaneously:
1. Navigate to INTERFACES > OUTPUTS, and click the desired output category (
not
recessed e.g.,
PPS Output):
