Spectracom SecureSync User Manual

5.

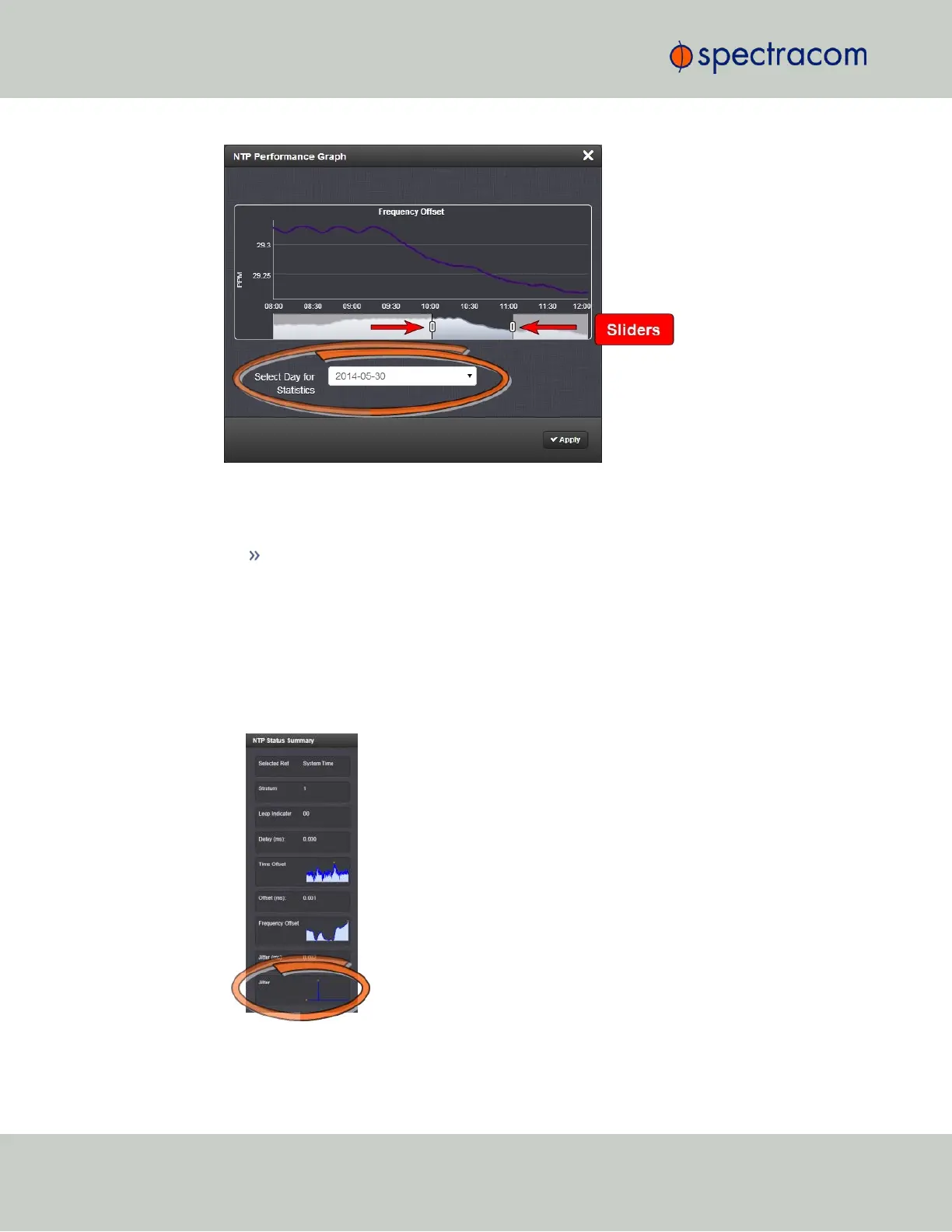

To select the statistics for a particular day, select a date from the drop-down list in the
Select Day for Statistics field (highlighted in green in the illustration above). The default
date is the present date. Click the Apply button.
To display a higher resolution graph of a shorter time frame, move one or both
of the two sliders inwards.
The NTP Jitter Performance Graph
To view the NTP Jitter performance graph:
1.
Navigate to MANAGEMENT > NETWORK: NTP Setup screen.
2.
In the NTP Status Summary panel locate the Jitter graph.
3.
Click the graph in the NTP Status Summary panel.
296
CHAPTER 4 • SecureSync User Reference Guide Rev. 26
4.5 Quality Management

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
