Spectracom SecureSync User Manual

Note: SecureSync starts numbering I/O ports with 0 (only 1PPS and 10MHz out-
puts start at1, because of the built-in outputs).

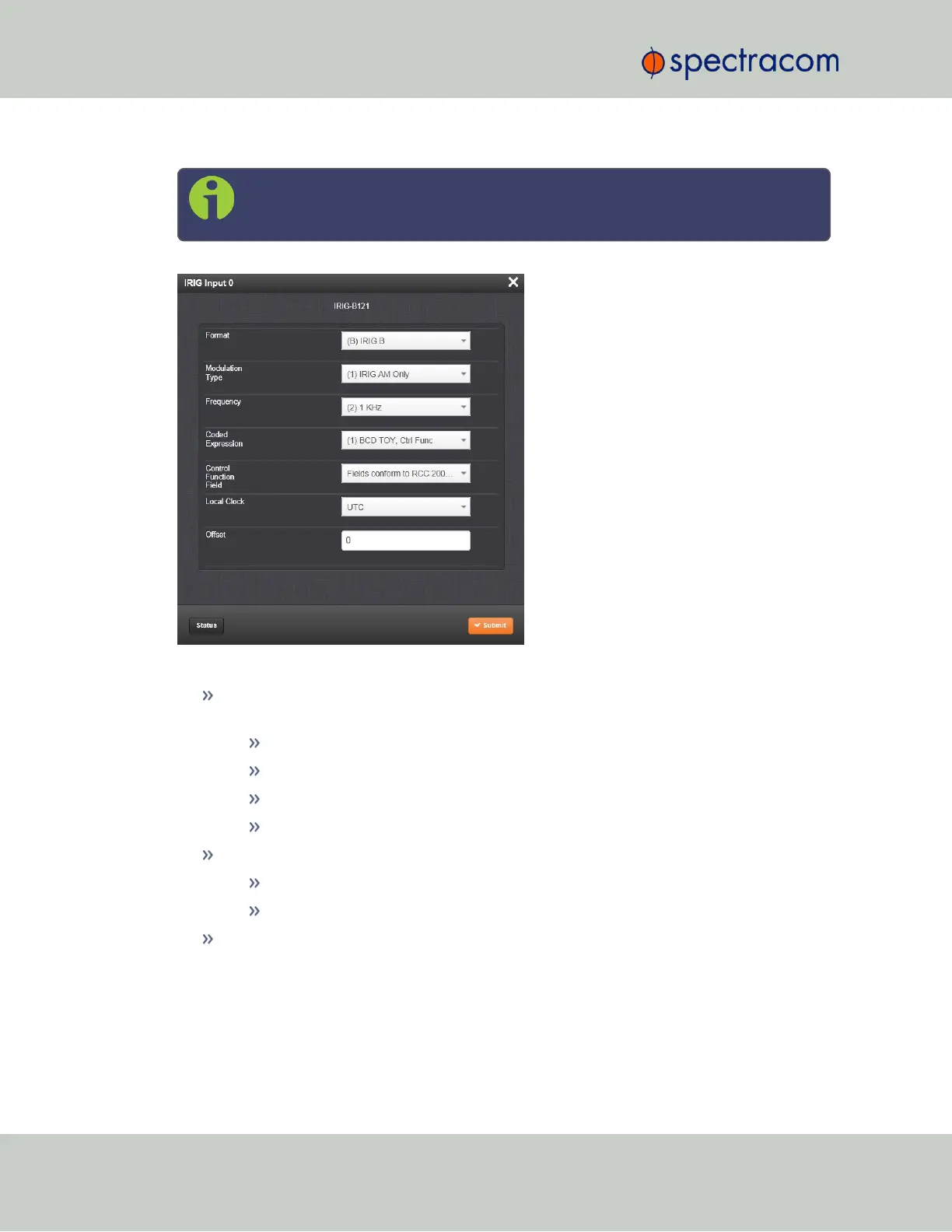

The Edit window allows the configuration of the following settings:
Format: Sets the formatting of the IRIG input signal, as defined by the IRIG generator time
source. The available choices are:
IRIG A
IRIG B
IRIG G
NASA-36
Modulation Type: Configures the type of input signal modulation. The choices are:
IRIG DCLS—A TTL (Phase) modulated signal.
IRIG AM—An amplitude modulated signal.
Frequency: The IRIG modulation frequency. This is determined by the configuration of
Format and Modulation Type. See "IRIG Carrier Frequencies" on page544 for details.
420 SecureSync User Reference Guide
APPENDIX

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
