Spectracom SecureSync User Manual

STANAG 4430 Standard Time Message (STM)
ICD-GPS-060A BCD Time Code
ICD-GPS-060A HAVE QUICK
DOD-STD-1399 BCD Time Code
Electrical Type: Selects synchronization to either RS-485 or TTL (supporting up to 10V
levels) signal lines.
Offset: Provides the ability to account for STANAG Line (TOD1 and TOD2 inde-
pendently) cable delays or other latencies in the STANAG input. Available Offset range
is –500 to +500ms in 5ns steps.
TFOM Threshold: Under the STANAGprotocol, the TFOM (Time Figure of Merit)
threshold value can be utilized as a means to validate timing data based on the TFOM.
For more information on TFOM, see "Configuring the Oscillator" on page215.

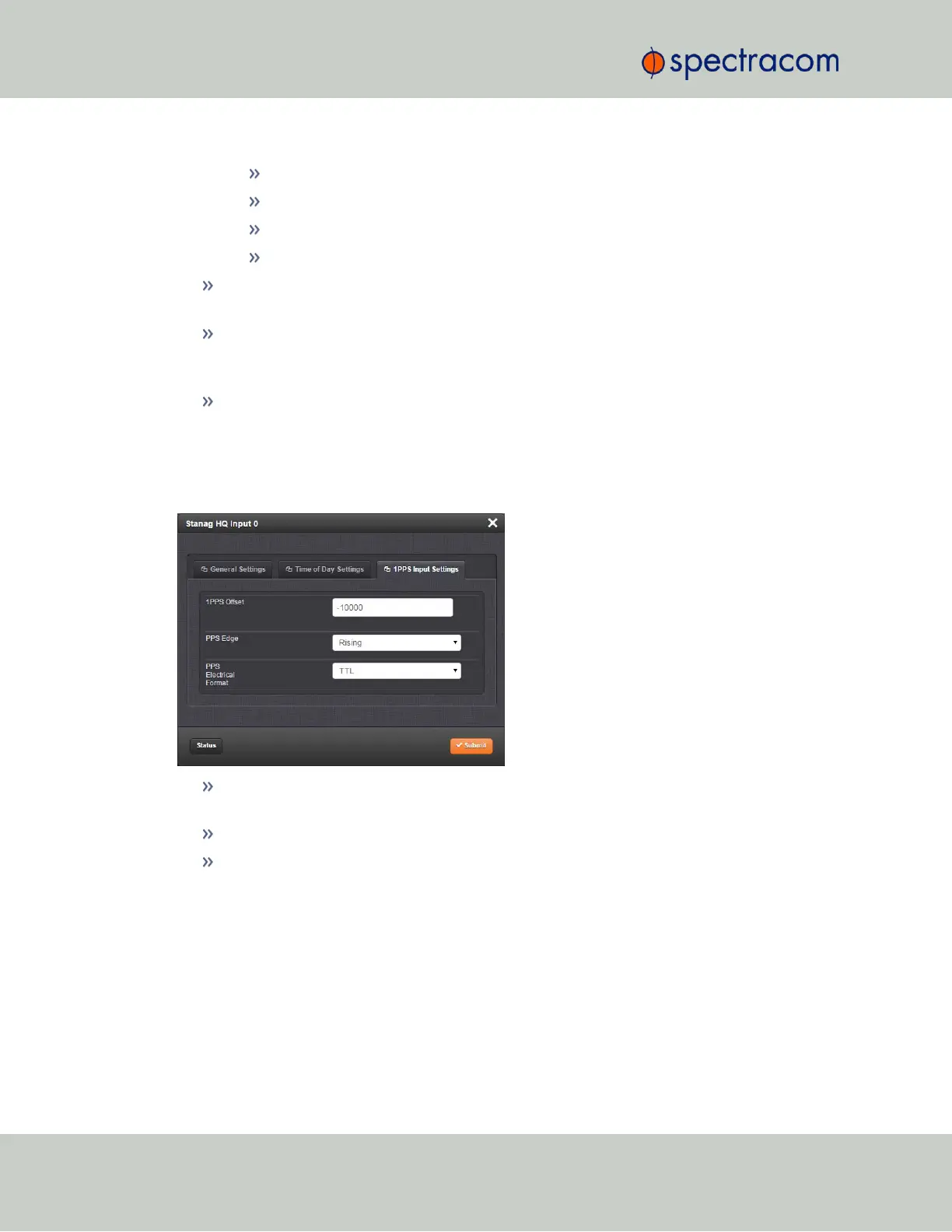

1PPS Input Settings tab
1PPS Offset: Used to account for 1PPS cable delays or other latencies in the 1PPS input.
Available Offset range is –500 to +500ms in 5ns steps
PPS Edge: The operator can select if the output signal is a rising or falling edge pulse.
PPS Electrical Format: Selects synchronization to either RS-485 or TTL (supporting up to
10V levels) signal lines.
STANAG Input: Status Window
To view the current settings of a STANAG Input (also referred to as ‘Reference’), go to its Status
window. For instructions, see: "Viewing Input/Output Configuration Settings" on page347.
The Web UI list entries for this card are: STANAG In and STANAG In, Isolated.
440 SecureSync User Reference Guide
APPENDIX

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
