Spectracom SecureSync User Manual

ICD-GPS-060A HAVE QUICK
DOD-STD-1399 BCD Time Code
Output Load Impedance: 120Ω
Start of Signal: <10µs after 1PPS output
Programmable Phase Shift: ±5ns to 500ms with 5ns resolution
Accuracy: ±50ns (1σ)
Maximum Number of Cards: 6
Ordering Information: 1204-1B HAVE QUICK outputs, RS-485

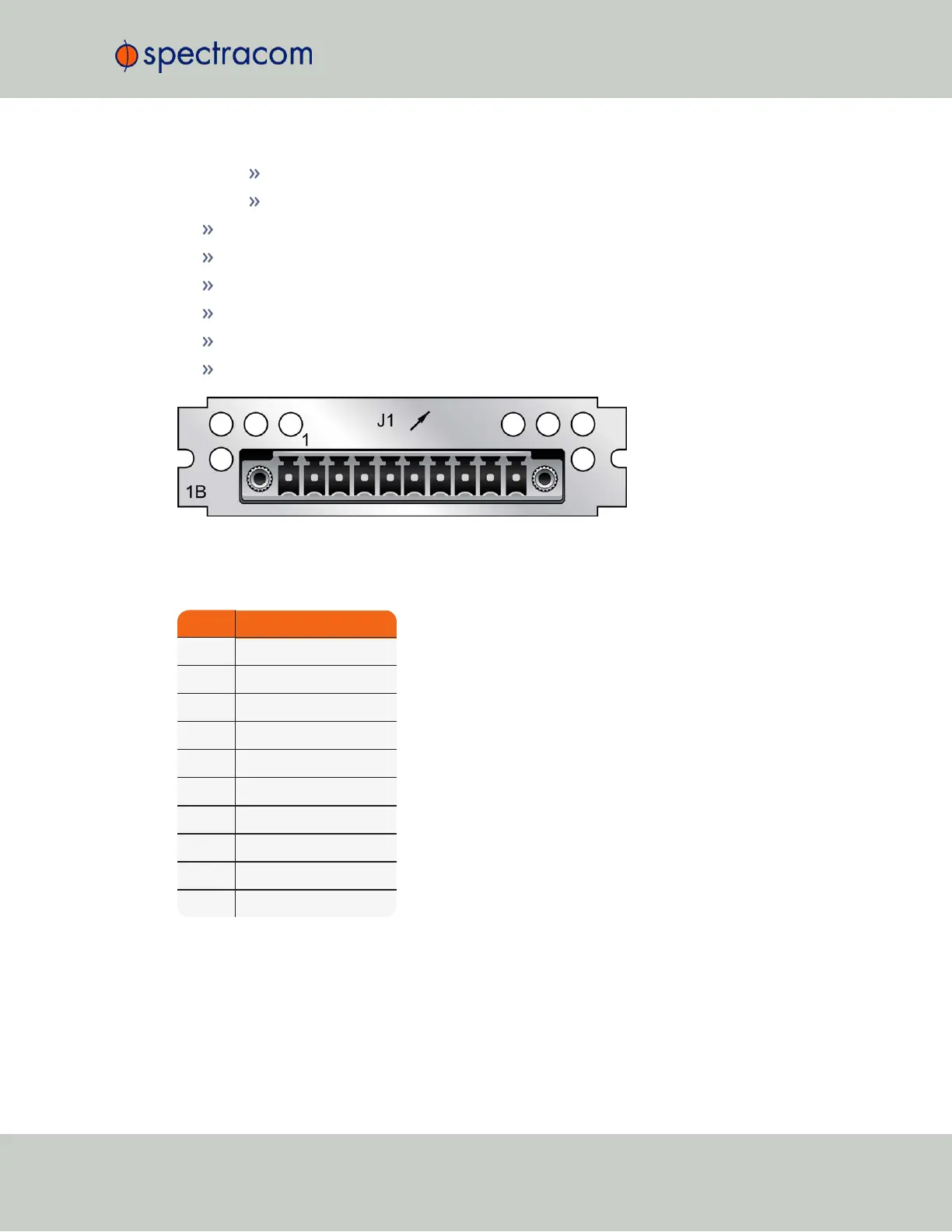

Figure 5-47: Model 1204-1B option card rear plate
Pin Assignments
Pin No. Function
1 HAVE QUICK Output 1 +
2 HAVE QUICK Output 1 -
3 GND
4 HAVE QUICK Output 2 +
5 HAVE QUICK Output 2 -
6 HAVE QUICK Output 3 +
7 HAVE QUICK Output 3 -
8 GND
9 HAVE QUICK Output 4 +
10 HAVE QUICK Output 4 -
SecureSync User Reference Guide 445
APPENDIX

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
