Table 5-20:
1204-1B terminal block pin-out
HAVE QUICK Output: Viewing Signal State
To quickly view if a HAVE QUICK Output is enabled or disabled, go to the option card’s Status
Summary panel. For instructions, see: "Viewing an Input/Output Signal State" on page349.

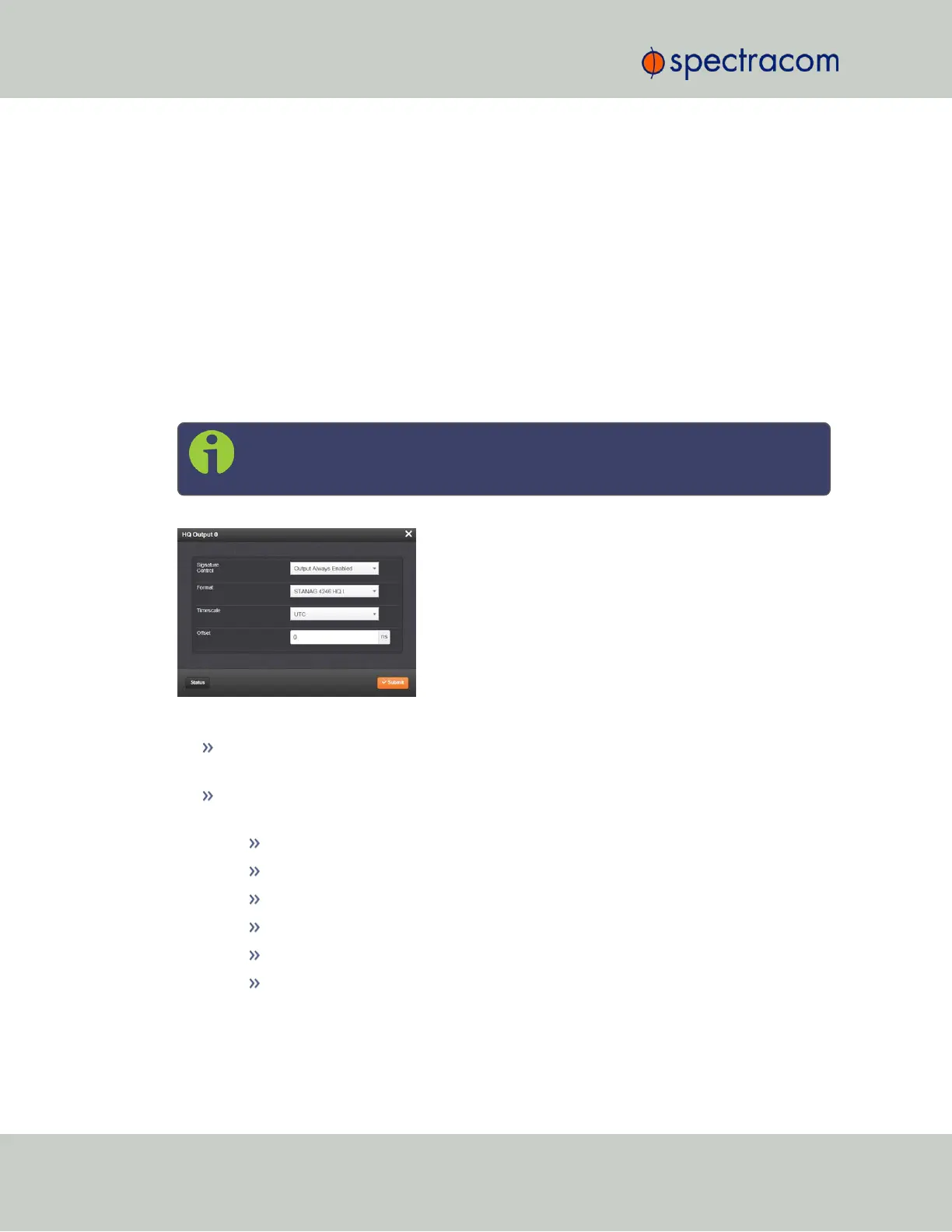

HAVE QUICK Output: Edit Window
To configure a HAVE QUICK Output, go to its Edit window. For instructions, see: "Configuring
Option Card Inputs/Outputs" on page348.
The Web UI list entries for this card are: HAVE QUICK out, BNC and HAVE QUICK Out, RS-485.
The outputs are named: HQ Output [number].
Note: SecureSync starts numbering I/O ports with 0 (only 1PPS and 10MHz out-
puts start at1, because of the built-in outputs).
The Edit window allows the configuration of the following settings:
Signature Control: Signature Control is used to control when the HAVE QUICK mod-
ulation is present;see also "Signature Control" on page141.
Format: Used to configure the formatting of the four available HAVE QUICK outputs. The
available output formats are as follows:
STANAG 4246 HQ I
STANAG 4246 HQ II
STANAG 4372 HQ IIA
STANAG 4430 Ext HQ (Extended HAVE QUICK)
STANAG 4430 STM (Standard Time Message)
ICD-GPS-060A BCD
446 SecureSync User Reference Guide
APPENDIX

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
