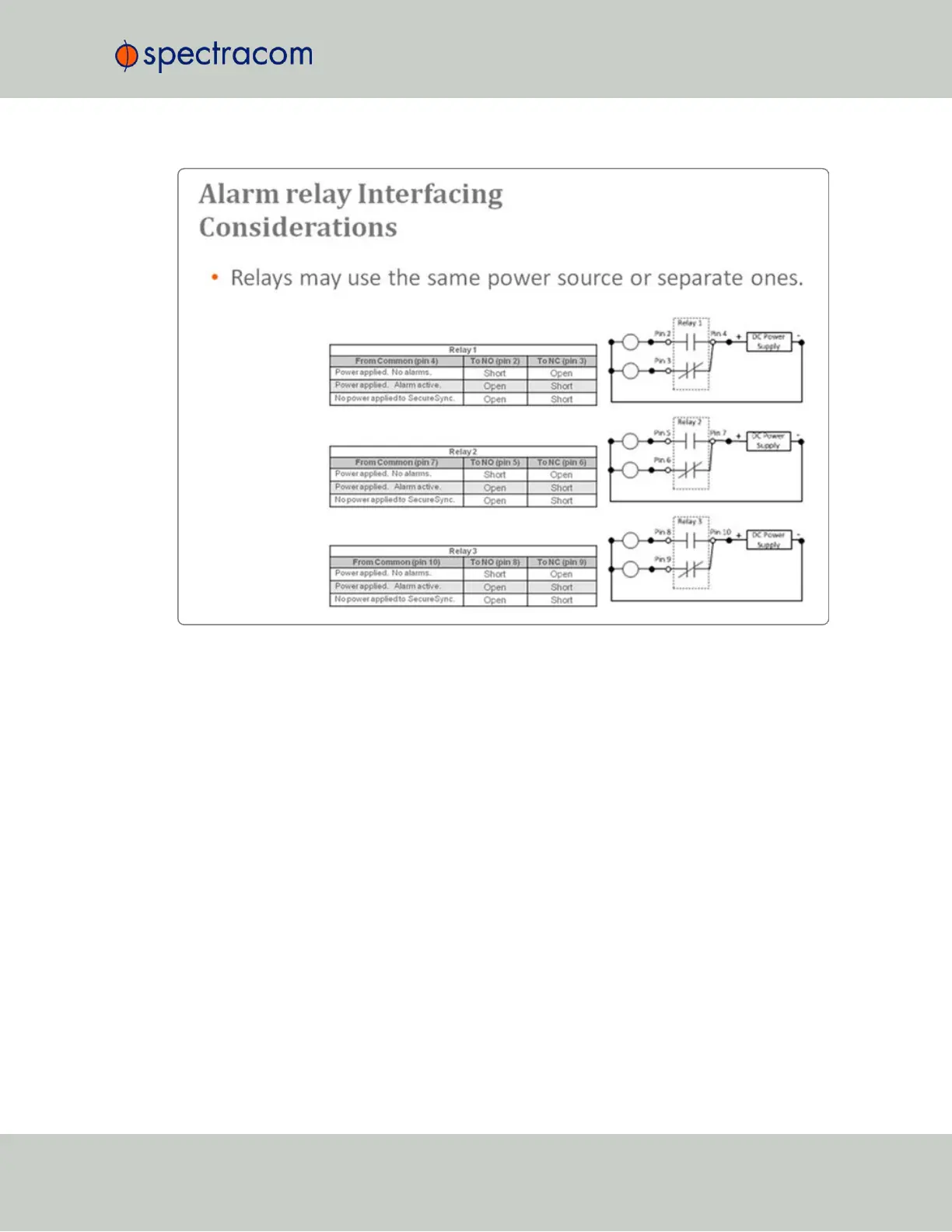

Figure 5-60: Contact closure relay pinouts
1.
All relay contacts are labeled as in their de-energized state (power removed or alarm
asserted).
2.
The "normal" state of the relays (no alarms asserted) is relays energized.
3.
The applicable relay(s) (Minor or Major, as configured in the browser) is /are de-ener-
gized when a Minor or Major alarm is asserted.
4.
Both the Minor and Major alarms are active (relays de-energized and in their alarm
state) when input power is removed from SecureSync.
5.
For information on how to configure the relays as either a Minor alarm relay or a
Major alarm relay, see "Alarm Relay Output: Edit Window" on page499.
Each of the three available relays on this option card can be configured to be either a Minor
or a Major alarm relay. The three relays are dry contact closures that can either open or com-
plete a circuit, depending on whether the relay is energized/de-energized and whether the cus-
tom alarm circuit is connected to the NO or NC contacts.
SecureSync User Reference Guide 497
APPENDIX

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
