Spectracom SecureSync User Manual

If the Mode is set to Broadcast, messages in the Message Buffer will be output imme-
diately through the RS-232 Output port. If another event is captured while a message is
being sent, it will be queued in the buffer until the first message completes, then the next
message will be sent.
If the Mode is set to Request, messages in the Message Buffer are only sent when the
Request Character is received.
The output format used is selected among a small group of formats with the capability to output
data at 5ns resolution. Event Broadcast Output formats are detailed in "Time Code Data
Formats" on page518.
Event Broadcast [1204-23]: Specifications
Inputs/Outputs: (1) Event Trigger Input, (1) Event Broadcast Output
Signal Type and Connector:
Connector J1 – (RS-232 Output) RS-232 DB9F
Connector J2 – (Event Input) TTL BNC
Event Resolution: 5ns
Minimum Time Between Events: 20ns
Message Buffer Size: 512 messages
Ordering Information: 1204-23: Event Broadcast

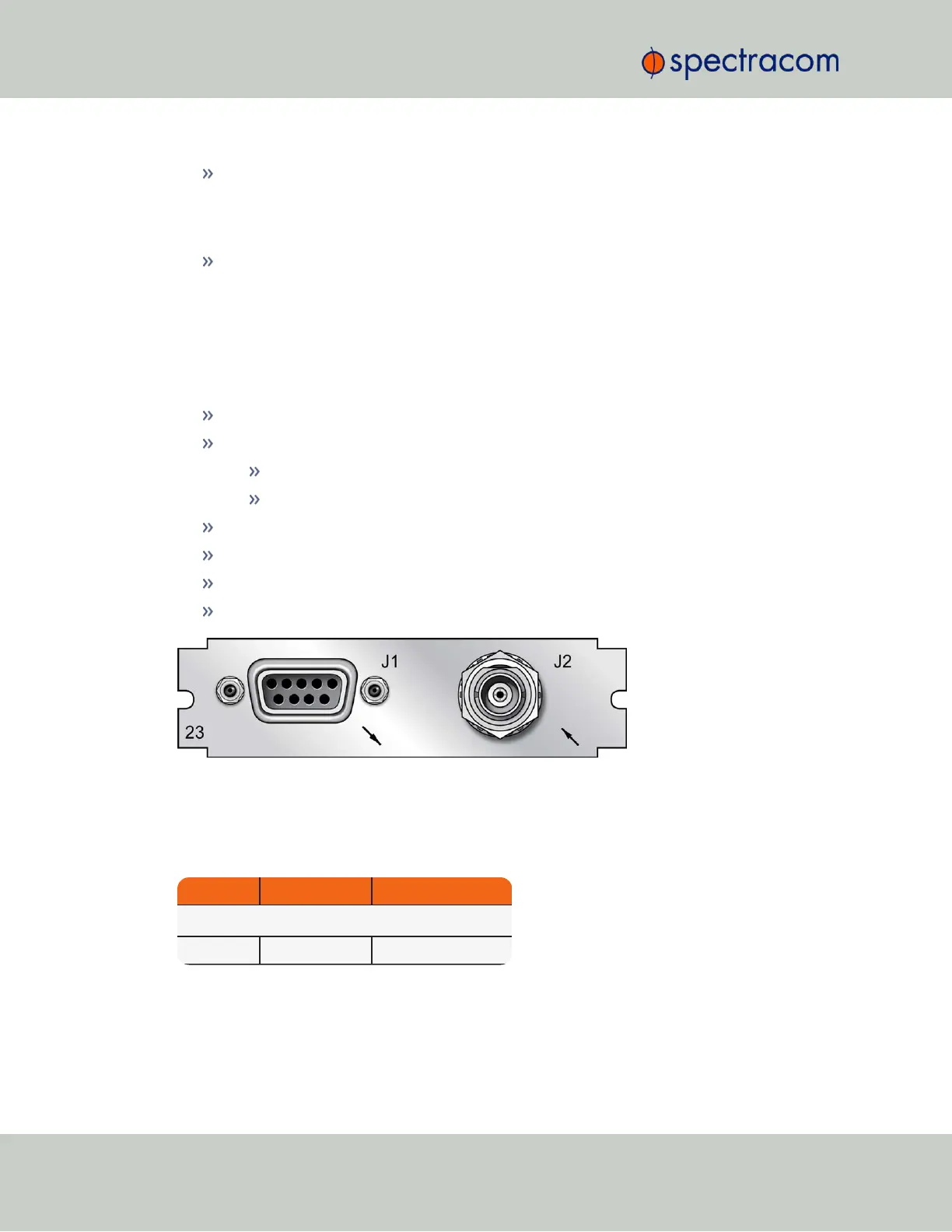

Figure 5-63: Model 1204-23 option card rear plate
Output Port: Pin Assignments
Table 5-25:
Output connector DB-9: pin-out
Pin Number Signal Name Function
Top row of 5 pins
1 NC No Connection
502 SecureSync User Reference Guide
APPENDIX

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
