Pin Number Signal Name Function
2 SERIAL_OUT_TX RS-232 Transmit data
3 SERIAL_OUT_RX RS-232 Receive data
4 NC No connection
5
GND Ground
Bottom row of 4 pins
6 NC No connection
7 NC No connection
8 NC No connection
9 NC No connection
Viewing the State of Event Broadcast and Event Input
To view the Status of Event Broadcast and Event Input, see "Viewing an Input/Output Signal
State" on page349.

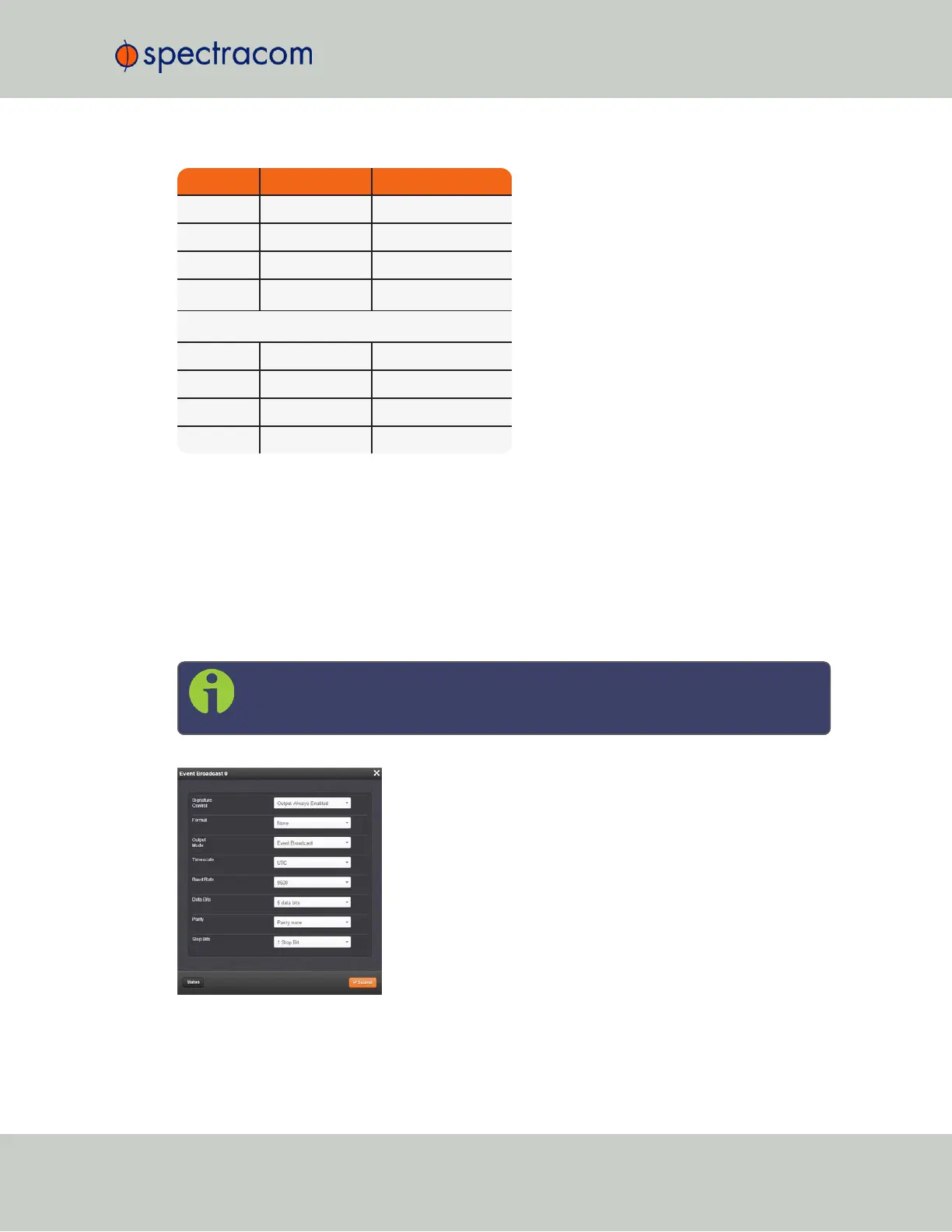

Event Broadcast Output: Edit Window
To configure the Event Broadcast Output, go to its Edit window. For instructions, see: "Con-
figuring Option Card Inputs/Outputs" on page348.
The Web UI list entry for this card is: Event Broadcast.
Note: SecureSync starts numbering I/O ports with 0 (only 1PPS and 10MHz out-
puts start at1, because of the built-in outputs).
SecureSync User Reference Guide 503
APPENDIX

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
