if the Output Mode is set as “Request Broadcast.”
Baud Rate: The speed that the output port will operate at.
Data Bits: The number of Data Bits for the output port.
Parity: The parity checking of the output port.
Stop Bits: The number of Stop Bits for the output.

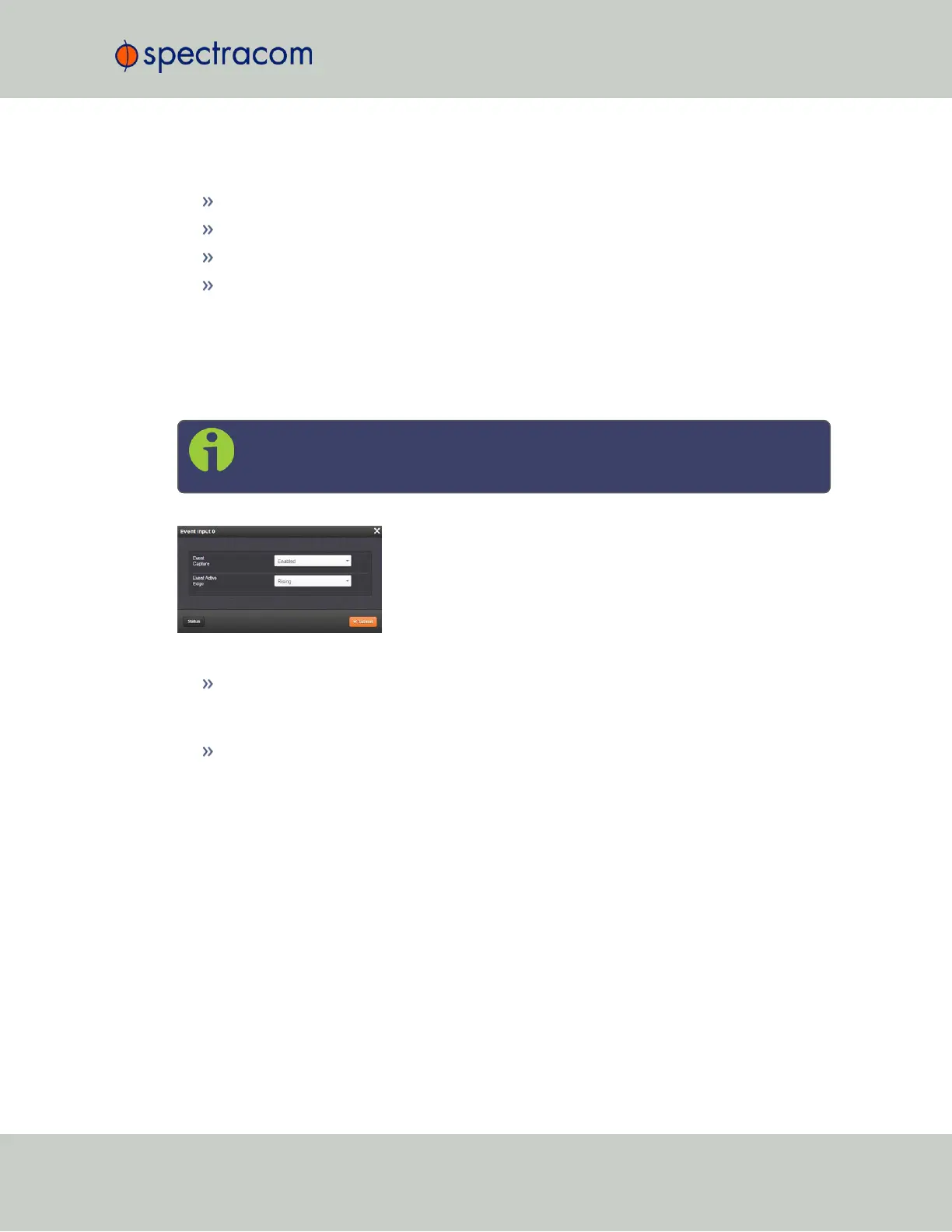

Event Broadcast Input: Edit Window
To configure the Event Broadcast Input (also referred to as ‘Reference’), go to its Edit window.
For instructions, see: "Configuring Option Card Inputs/Outputs" on page348.
The Web UI list entry for this card is: Event Broadcast.
Note: SecureSync starts numbering I/O ports with 0 (only 1PPS and 10MHz out-
puts start at1, because of the built-in outputs).
The Status window displays the following settings:
Event Capture: Enables the processing of events on the Event Input port J2. When set to
“Disabled”, no event messages will be queued. When set to “Enabled”, event messages
will be triggered (if a valid Format is selected).
Event Active Edge: Selects the signal edge used for triggering events on Event Input port
J2.
Event Broadcast Input: Status Window
To view the current settings of the Event Broadcast Input, (also referred to as ‘Reference’), go to
its Status window. For instructions, see: "Viewing Input/Output Configuration Settings" on
page347.
The Web UI list entry for this card is: Event Broadcast.
