Symmetricom TimeProvider 5000 User Manual

098-00028-000 Revision F – May, 2012 TimeProvider 5000 User’s Guide 267
Chapter 3
Simple Network Management Protocol (SNMP)
The entire MIB structure used for the TP 5000 SNMP agent is composed of the
existing tp5000 MIB (with two new tables), and the new MIB structure. The new
structure consists of several public MIBs, the symmCommon MIBs, the tp5000e
MIB, and the framework which ties all of them together.
Public MIBs
The Symmetricom implementation of SNMP uses the definitions of MIB II variables
described in RFC 1213 and definitions of SNMP traps described in RFC 1215.
Symmetricom provides its own private MIB extensions with every system that is
licensed for the SNMP option. Symmetricom private MIBs comply with the
guidelines described in the relevant RFCs unless otherwise noted in the
documentation.

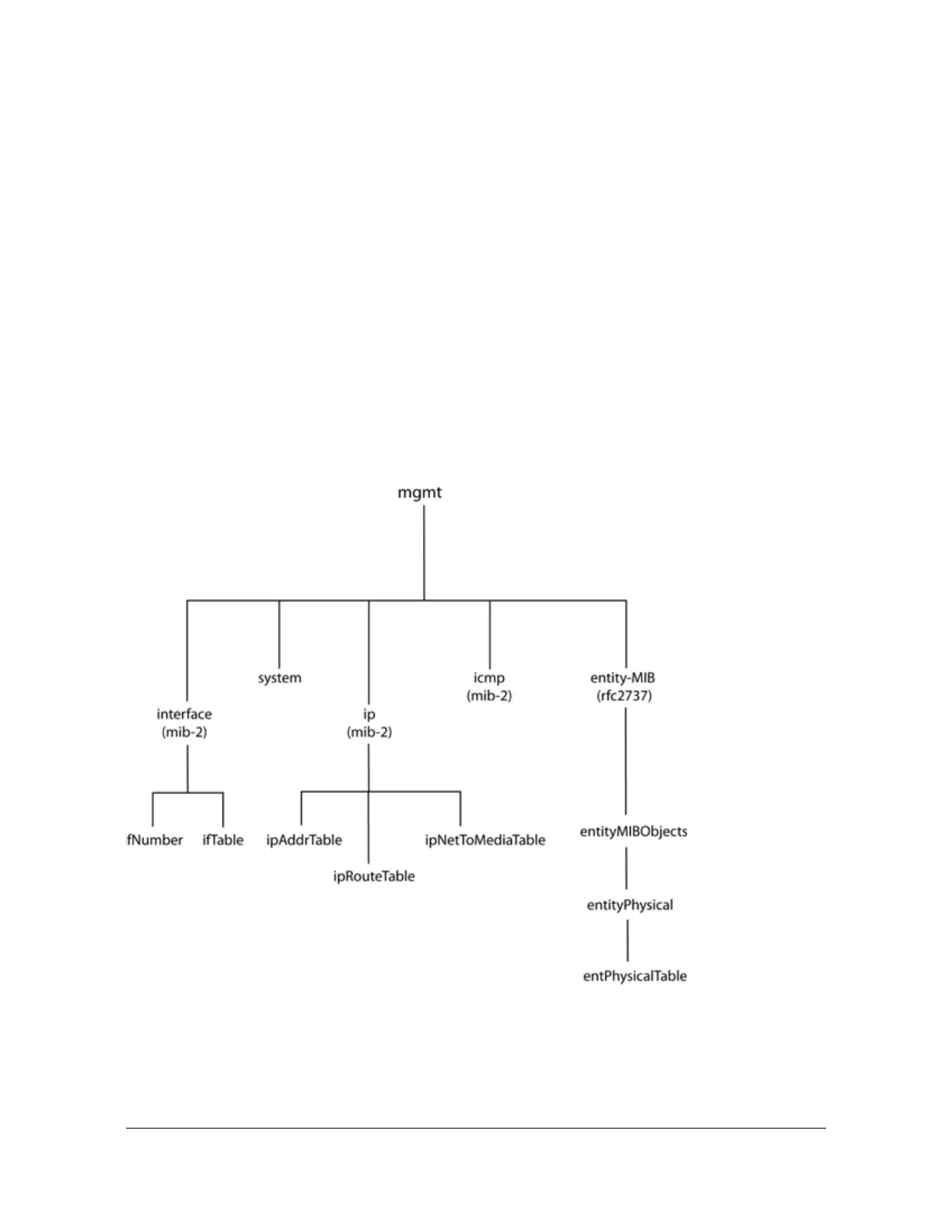

Figure 3-3 shows the Public MIBs used with the TP 5000 SNMP agent. See the
TimeProvider 5000 SNMP Agent User’s Guide (098-00385-000) for details.
Figure 3-3. Hierarchy of Public MIBs for Used With TimeProvider 5000
