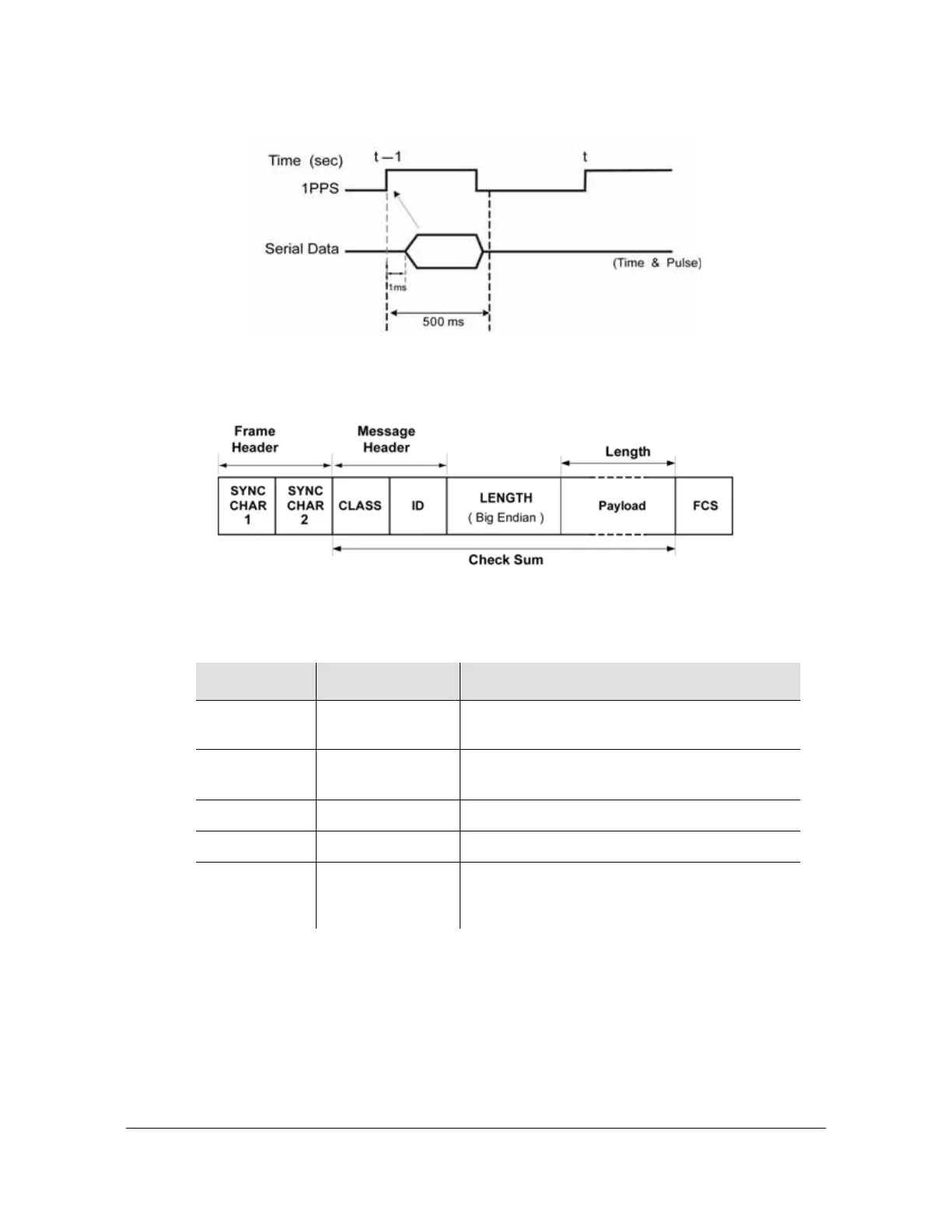

Figure B-3. TP E30 - Timing Relationship Between 1PPS and TOD for 1 PPS+ TOD Outputs
Figure B-4. TP E30 - TOD Frame Structure for 1 PPS+ TOD Outputs
Table B-14. TP E30 - TOD Frame Field Descriptions for 1PPS +TOD Output
Field Name Field Length Description
Sync Char 1 1 byte Part of Frame Header
0x43 = ASCII character “C”
Sync Char 2 1 byte Part of Frame Header
0x4D = ASCII character “M”
Class 1 byte Basic classification of TOD message
ID 1 byte Serial number of of TOD message
Length 2 bytes Length of payload only
(Does not include Frame Header, Message Header,
Length Field itself, or FCS)

Symmetricom TimeProvider 5000 Specifications

General

Brand	Symmetricom
Model	TimeProvider 5000
Category	Server
Language	English
